Product Details:
|
| Name: | Crowned Rounded Spherical Pins | Type Ranges: | Pins And Shafts |
|---|---|---|---|
| Normal Material: | Chrome Steel SAE 52100(US), 100Cr6 (Europe), SUJ2 (Japan) And GCr15 (China) | Size: | 5 X 8, 5 X 10, 6 X 12, 2.5 X 13.8, 2.5 X 23.8, 2.5 X 9.8, 4.0 X 25.8, 24x23.4, 42x41.4, 30x29,4 |
| Size Ranges: | Diameter From .031″ To 1.000″ (.787mm To 25.4mm); Length From .125″ To 3.000″ (3.17mm To 76.2mm) | Hardness: | Standard Through- Hardened And Temper HRC 60-64 |
| Standard For Parallel Pins: | ASME/ANSI B 18.8.2, DIN7, DIN6325, GB/T119.1 GB/T119.2, ISO2338, ISO8734, UNI6364 | Standard For Taper Pins: | DIN1, GB/T117, ISO2339 |
| Finishes: | Ground, Tumble Polished, Super Finished Or Honed | Applications: | Bearings, U-Joints (needle Rollers), Small Motor Shafts, CV Joints, Clutches, Starter Drives, Transmission Pins, Rocker Arms |
| High Light: | Rounded Needle Roller Pin,crowned Needle Roller Pin,chrome Spherical needle bearing shaft |
||

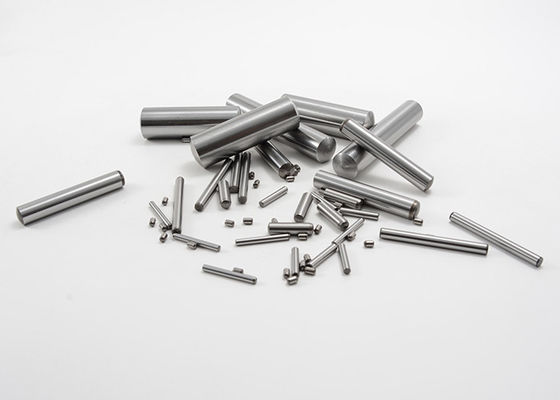

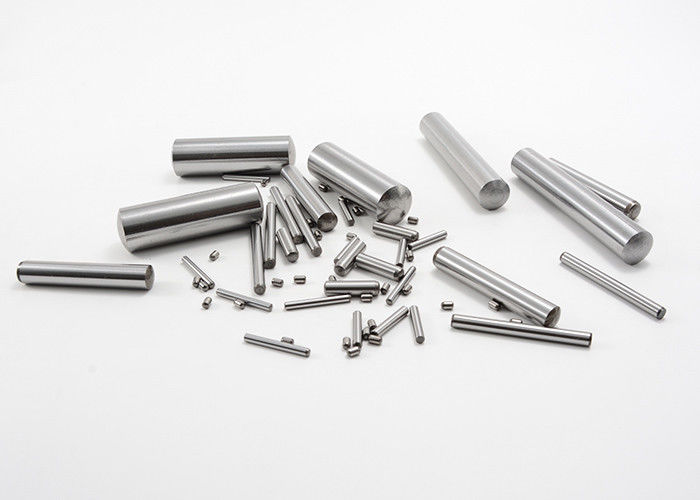

Crowned Rounded Spherical Pins Chrome Steel 52100 100Cr6 Stainless Steel
MOUETTE is a leading manufacturer of precision pins, rollers, needle rollers, and other elements.
Pins, rollers, dowels, needle rollers, and shafts are all mechanical parts that are cylindrical in shape.
We specialize in the production of precision pins and rollers. Advanced materials expertise, design capabilities, and quality processes enable our team to produce pins, rollers, dowels, needle rollers, and shafts that perform at high temperatures, speeds, and loads, as well as less challenging environments.
Our pins and rollers can be developed for specific capabilities like CV joints, clutches, and starters. All pins, needle rollers, and shafts can be manufactured as parts or assemblies, in steel, stainless steel, AISI S2 steel and other materials.
Pins:
We produce induction-hardened pinion pins often used in planetary gears and planetary gear shafts found in automated transmission and transfer cases. Our engineering team can help design planetary pinion pin in conjunction with proper design needles to meet your specific needs.
Specifications:
| Dimensions | Diameter | .177″ to .787″ (4.5mm to 20mm) |
| Length | .335″ to 3.937″ (8.5mm to 100mm) | |
| Materials | Chrome steel | SAE 52100(US), 100Cr6 (Europe), SUJ2 (Japan) and GCr15 (China) |
| Hardness | Standard through- hardened and temper HRC 60-64; custom hardness is available | |
| Finishes | Ground, Tumble Polished, Super finished or Honed | |
| Tolerances | G2, G3, G5 and others on request | |
| Machined Features | Dimpled Ends, drilled ends, cross-drilled holes, clip grooves | |
| End Profiles | Flat, Dimpled | |
| Standard for Parallel Pins | ASME/ANSI B 18.8.2, DIN7, DIN6325, GB/T119.1 GB/T119.2, ISO2338, ISO8734, UNI6364 | |
| Standard for Taper Pins | DIN1, GB/T117, ISO2339 | |
