Product Details:
|
| Name: | 1/32" 1/16" 1/8" Alloy Steel Dowel Pins Black Oxide | Type Ranges: | Dowel Pins |
|---|---|---|---|
| Normal Material: | Alloy Steel, Stainless Steel | Size Ranges: | Diameter From 3/64″ To 1 1/4″ (1mm To 25mm); Length From .125″ To 3.000″ (3.17mm To 76.2mm) |
| Hardness: | RC 50-58 Hardness, Custom Hardness Is Available | Finishes: | Ground, Tumble Polished, Super Finished Or Honed |
| Surface Treatment: | Neutral Or Black Oxide Finish | Applications: | Bearings, U-Joints (needle Rollers), Small Motor Shafts, CV Joints, Clutches, Starter Drives, Transmission Pins, Rocker Arms |
| High Light: | black Needle Roller Pin,oxide Needle Roller Pin,stainless alloy steel dowel pins |
||

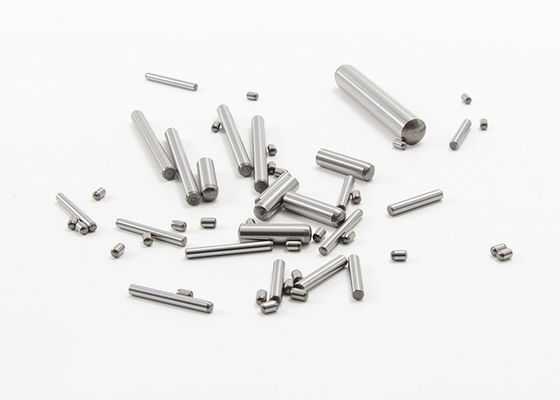

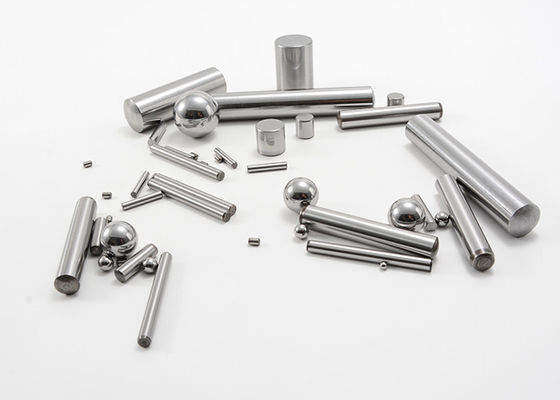

1/32" 1/16" 1/8" Alloy Steel Dowel Pins Black Oxide Stainless Steel Pins
MOUETTE is a leading manufacturer of precision pins, rollers, needle rollers and other elements.
Pins, rollers, dowels pins, needle rollers, and shafts are all mechanical parts that are cylindrical in shape.
We specialize in the production of precision pins and rollers. Advanced materials expertise, design capabilities, and quality processes enable our team to produce pins, rollers, dowels, needle rollers, and shafts that perform at high temperatures, speeds, and loads, as well as less challenging environments.
Our pins and rollers can be developed for specific capabilities like CV joints, clutches, and starters. All pins, needle rollers, and shafts can be manufactured as parts or assemblies, in steel, stainless steel, AISI S2 steel and other materials.
Dowel Pins:
Use dowel pins as pivots, hinges, shafts, jigs, and fixtures to locate or hold parts. For a tight fit, your hole should be equal to or slightly smaller than the diameter shown. Breaking strength is measured as double shear, which is the force required to break a pin into three pieces.
Steel pins are the strongest dowel pins. Steel pins are precision ground except for 1/32" diameter pins. Pins with a black-oxide finish have some corrosion resistance.
Stainless steel pins are more corrosion resistant than steel pins. Pins that are passivated offer added protection against corrosion and oxidation. Stainless steel pins are precision ground except for 1/64" diameter pins. 18-8 stainless steel pins offer a balance of strength and corrosion resistance. They may be mildly magnetic. 316 stainless steel pins have the best corrosion resistance of our stainless steel pins.
Some pins meet material and dimensional standards set by ASME, Mil. Spec., DIN, or ISO. DIN 6325-m6 is functionally equivalent to DIN EN ISO 8734, with slight differences in hardness and length tolerances. ISO 2338-m6 is functionally equivalent to DIN 7, but the ends are chamfered instead of rounded.
Specifications:
| Dimensions | Diameter | 3/64″ to 1 1/4″ (1mm to 25mm); |
| Length | .125″ to 3.000″ (3.17mm to 76.2mm) | |
| Materials | Chrome steel | SAE 52100(US), 100Cr6 (Europe), SUJ2 (Japan) and GCr15 (China) |
| Stainless steel | 440, 302, 304 | |
| Tool steel | SAE-AISI S2 steel | |
| Hardness | RC 50-58 Hardness, custom hardness is available | |
| Finishes | Ground, Tumble Polished, Super finished or Honed | |
| Surface Treatment | Neutral or Black Oxide Finish | |
| Machined Features | Radius, Tapers, Grooves and Flats | |
| End Profiles | Flat, spherical, contoured | |
