Product Details:
|
Name: | One Way Sprag Freewheel Clutch Bearing | Material: | High-Alloy Bearing Quality Steel GCr15 |
---|---|---|---|
Structure: | One Way Clutch | Seals Type: | Optional |
Brand: | Neutral / Customized | Package: | Box + Carton+Plywood Pallet Case |
Lubrication: | Designed For Oil Lubrication | Application: | Be Used In Motorcycle As Sarting Clutch |
High Light: | Low Friction freewheel clutch bearing,motorcycle sprag type one way clutch,gcr15 sprag type one way clutch |

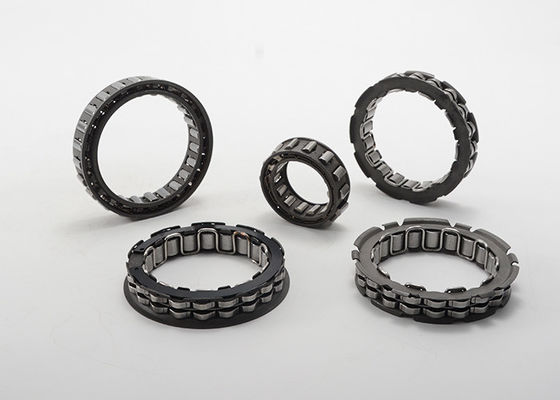

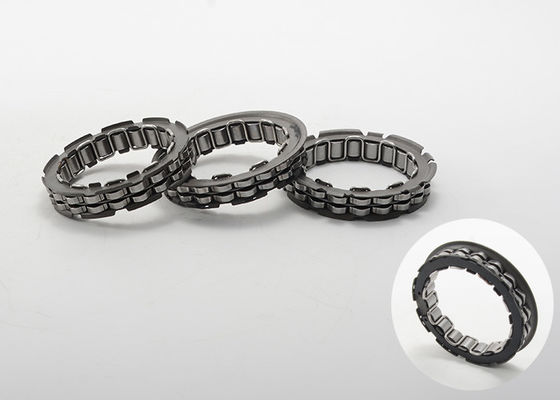

Motorcycle Starter One Way Sprag Freewheel Clutch Bearing Low Friction FWE331608BRB
Motorcycle Starter One Way Sprag Freewheel Clutch Bearing Low Friction FWE...BRB Specifications:
Type | Dimensions | Torque | Weight | ||
Inner race | Outer race | Wmin | |||
D +0.008/ -0.005 | D0 ±0.013 | W | Tkn | ||
[mm] | [mm] | [mm] | [Kgf-m] | [g] | |
FWE331608BRB | 39.900 | 56.567 | 13.0 | 26 | 73 |
FWE331808BRB | 45.848 | 62.515 | 13.3 | 35 | 82 |
FWE332211BRB | 57.760 | 74.427 | 16.3 | 78 | 134 |
Note:
1) Opposite overrunning direction should be ordered separately.
