Product Details:
|
| Name: | Precision Stainless Steel Insert Bearing | Type: | SUC201, SUC203, SUC205, SUC206, SUC207, SUC208, SUC209, SUC210, SUC211, SUC212, SUC214, SUC216, |
|---|---|---|---|
| Bearing Material: | AISI 440C, 420, 304 Stainless Steel For Raceways And Balls | Feature: | Vacuum, Magnetically, Low Temperature, Corrosion Resistant, High Temperature, High Speed |
| Sealing Solution: | Standard Sealing | Size Range: | Metric, Bore Diameter From 12mm To 90mm |
| Compliance With Standard: | ISO, JIS, North American Standard | Applications: | Food Processing, Bottling And Packaging Machines, Chemical Processing, And Pool And Marine Applications |
| High Light: | screw ball Precision Insert Bearing,lubricated ball insert bearing,sealed ball insert bearing |
||
Precision Stainless Steel Insert Bearing Lubricated Sealed SUC201 SUC202 SUC203

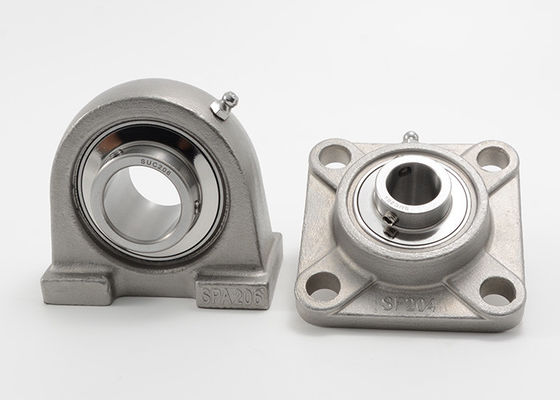

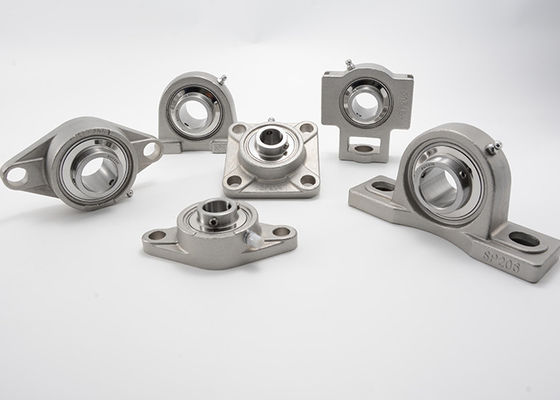

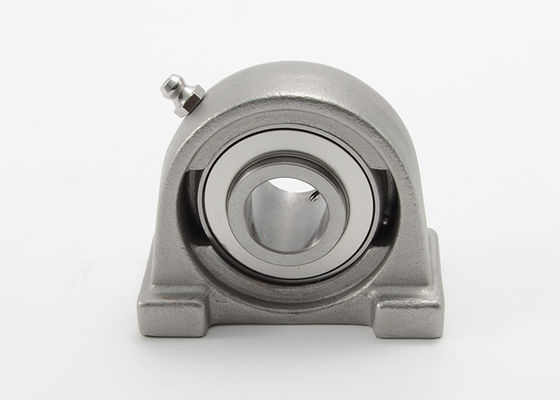

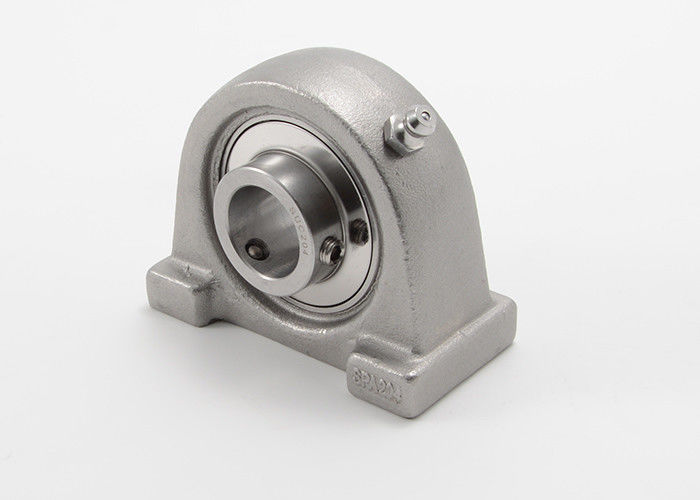

Insert type bearings feature a spherical outer race which allows them to be easily inserted into Plastic Mounted Blocks, Stainless Steel Housing as well as conventional cast iron blocks. Our selection of insert bearings covers a wide range of application requirements. They go beyond the standard stainless steel insert bearings with superior corrosion resistance, hygienic with wash down capabilities, and no lubricant required.
MOUETTE produces Insert Ball Bearings made from AISI 440C, 420, 304 stainless steel for raceways and balls. They are specifically designed to provide superior corrosion resistance.
Product Properties:
| Name | Stainless Steel Insert Bearing |
| Category | Precision Insert Bearing |
| Seal | Standard Sealing |
| Material | AISI 440C, 420, 304 stainless steel for raceways and balls |
| Lubrication | Food Grease |
Applications:
Precision Stainless Steel Insert Bearing SUC200 Series Specifications:
|
Insert Bearing Part No. |
Bore Dia | Dimension(mm) |
Basic Load Rating Dynamic (kN) |
Basic Static (kN) |
Net Weight (kg) |
|||||||||
| d |
D |
Bi |
Be |
r |
N |
M |
G |
ds |
T |
|||||
| in | mm | |||||||||||||
|
SUC201S SUC201-8S SUC202S SUC202-10S SUC203S SUC203-11S |
1/2
5/8 11/16 |
12
15
17 |
40 |
26 |
15 |
1 |
10 |
16 |
4 |
M5×0.8 10-32 M5×0.8 10-32 M5×0.8 10-3 |
3.5 |
7.65 |
3.60 |
0.12 0.12 0.11 0.11 0.10 0.10 |
|
SUC201 SUC201-8 SUC202 SUC202-10 SUC203 SUC203-11 SUC204 SUC204-12 |
1/2
5/8
11/16
3/4 |
12
15
17
20
|
47 |
31 |
16 17 |
1 |
12.7 |
18.3 |
4.7 |
M6×0.75 1/4-28 M6×0.75 1/4-28 M6×0.75 1/4-28 M6×0.75 1/4-28 |
4.0 |
10.37 |
5.08 |
0.21 0.20 0.19 0.19 0.18 0.18 0.16 0.16 |
|
SUC205 SUC205-14 SUC205-15 SUC205-16 |
7/8 15/16 1 |
25
|
52 |
34.1 |
17 |
1.5 |
14.3 |
19.8 |
5 |
M6×0.75 1/4-28
|
4.2 |
11.31 |
6.00 |
0.19 0.22 0.20 0.19 |
|
SUC206 SUC206-17 SUC206-18 SUC206-19 SUC206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30
|
62 |
38.1 |
19 |
1.5 |
15.9 |
22.2 |
5 |
M6×0.75 1/4-28
|
5.0 |
15.81 |
8.64 |
0.31 0.36 0.34 0.32 0.31 |
|
SUC207 SUC207-20 SUC207-21 SUC207-22 SUC207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35
|
72 |
42.9 |
20 |
2.0 |
17.5 |
25.4 |
7 |
M8×1 5/16-24
|
5.7 |
20.83 |
11.68 |
0.46 0.52 0.50 0.48 0.46 |
|
SUC208 SUC208-24 SUC208-25 |
1-1/2 1-9/16 |
40
|
80 | 49.2 | 21 | 2.0 | 19.0 | 30.2 | 8 |
M8×1 5/16-24
|
6.3 | 23.55 | 13.60 |
0.63 0.68 0.64 |
|
SUC209 SUC209-26 SUC209-27 SUC209-28 |
1-5/8 1-11/16 1-3/4 |
45
|
85 |
49.2 |
22 |
2.0 |
19.0 |
30.2 |
8 |
M8×1 5/16-24
|
6.3 |
26.35 |
15.60 |
0.70 0.78 0.74 0.70 |
|
SUC210 SUC210-29 SUC210-30 SUC210-31 SUC210-32 |
1-13/16 1-7/8 1-15/16 2 |
50
|
90 |
51.6 |
24 |
2.0 |
19.0 |
32.6 |
10 |
M10×1.25 3/8-24
|
6.6 |
28.48 |
18 |
0.78 0.89 0.85 0.80 0.78 |
|
SUC211 SUC211-32 SUC211-33 SUC211-34 SUC211-35 |
2 2-1/16 2-1/8 2-3/16 |
55
|
100 |
55.6 |
25 |
2.5 |
22.2 |
33.4 |
10 |
M10×1.25 3/8-24
|
7 |
35.28 |
22.4 |
1.07 1.22 1.18 1.10 1.05 |
|
SUC212 SUC212-36 SUC212-37 SUC212-38 SUC212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60
|
110 |
65.1 |
27 |
2.5 |
25.4 |
39.7 |
10 |
M10×1.25 3/8-24
|
7 |
42.5 |
26.34 |
1.52 1.65 1.55 1.49 1.42 |
|
SUC213 SUC213-40 SUC213-41 |
2-1/2 2-9/16 |
65
|
120 | 65.1 | 30 | 2.5 | 25.4 | 39.7 | 10 |
M10×1.25 3/8-24 |
8.5 | 46.5 | 30.4 |
1.80 1.88 1.80 |
|
SUC214 SUC214-42 SUC214-43 SUC214-44 |
2-5/8 2-11/16 2-3/4 |
70
|
125 |
74.6 |
30 |
2.5 |
30.2 |
44.4 |
12 |
M12×1.5 7/16-20 |
8.9 |
50.15 |
33.6 |
2.06 2.10 2.08 2.07 |
|
SUC215 SUC215-45 SUC215-46 SUC215-47 SUC215-48 |
2-13/16 2-7/8 2-15/16 3 |
75
|
130 |
77.8 |
32 |
2.5 |
33.3 |
44.5 |
12 |
M12×1.5 7/16-20 |
9.2 |
53.55 |
37.6 |
2.19 2.41 2.31 2.21 2.11 |
|
SUC216 SUC216-50 |
3-1/8 |
80
|
140 | 82.6 | 33 | 3 | 33.3 | 49.3 | 14 |
M12×1.5 7/16-20 |
9.6 | 58.65 | 40.8 |
2.82 2.90 |
|
SUC217 SUC217-52 |
3-1/4 |
85
|
150 | 85.7 | 35 | 3 | 34.1 | 51.6 | 14 |
M12×1.5 7/16-20 |
10.5 | 68 | 48.8 |
3.46 3.56 |
|
SUC218 SUC218-56 |
3-1/2 |
90
|
160 | 96 | 37 | 3 | 39.7 | 56.3 | 15 |
M12×1.5 7/16-20 |
11 | 77.52 | 54.56 |
4.53 4.62 |
