Product Details:
|
Name: | Spherical Stainless Steel Insert Bearing | Bearing Material: | Stainless Steel AISI 440C / Stainless Steel 420 For Both Raceway And Balls |
---|---|---|---|
Brand: | Neutral | Inner Race Profile: | Wide Inner Ring |
Outer Race Profile: | Spherical | Seal Type: | Single Lip Contact |
Mounting Method: | Eccentric Collar | Applications: | Food Processing, Bottling And Packaging Machines, Chemical Processing, And Pool And Marine Applications |
High Light: | Sealed Precision Insert Bearing,pre lubricated Precision Insert Bearing,screw ball bearing With Lubricating Groove |

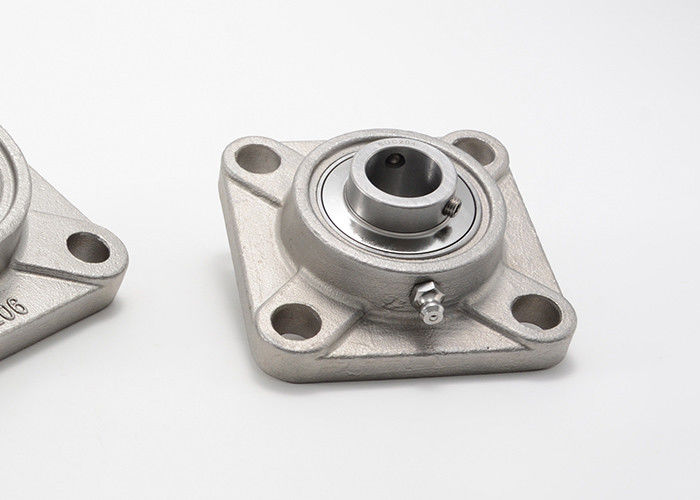

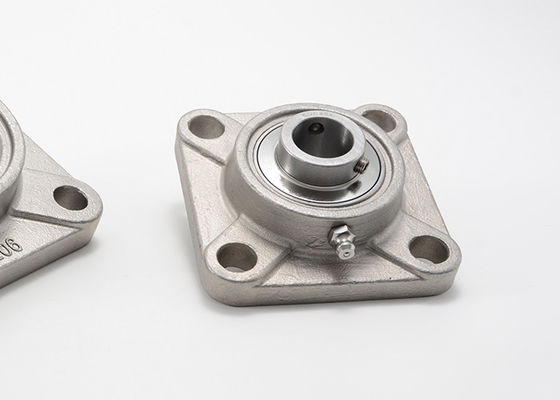

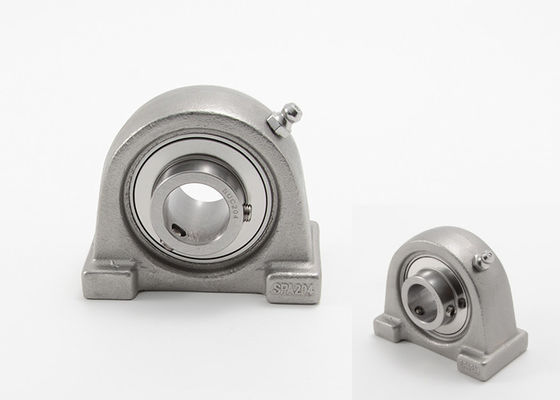

Spherical Stainless Steel Insert Bearing SHC203 SHC204 SHC207 SHC208 SHC212
High quality stainless steel material, Low noise & vibration level, with Spherical OD and Eccentric Locking Collar.
Material: AISI440 for Bearing and AISI304 for Collar, Shields & Screws
They are specifically designed to provide superior corrosion resistance.
Features:
Category | Precision Insert Bearings |
Brand | Neutral |
Inner Race Profile | Wide Inner Ring |
Outer Race Profile | Spherical |
Relubricatable | Yes |
Seal Type | Single Lip Contact |
Mounting Method | Eccentric Collar |
Rolling Element | Ball Bearing |
Other Features | Single Row | Normal Duty | Stainless Steel |
Applications:
Spherical Stainless Steel Insert Bearing SHC200 Series Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Basic Dynamic Load Rating |
Basic Static Load Rating |
Net Weight (kg) |
|||||||||||
d | D | Bi | Be | N | M | T | L | W | K | G | ds | |||||
in | mm | |||||||||||||||
SHC201 |
1/2
5/8
11/16
3/4 |
12
15
17
20
|
47 |
29.8 |
16 17 |
12.7 |
17.1 |
4 |
39.3 |
33.3 |
13.5 |
5 |
M6×0.75 |
10.91 |
5.32 |
0.22 |
1/ 4- 28 | ||||||||||||||||
SHC201-8 | 0.22 | |||||||||||||||
M6×0.75 | ||||||||||||||||
SHC202 | 0.19 | |||||||||||||||
1/ 4- 28 | ||||||||||||||||
SHC202-10 | 0.19 | |||||||||||||||
M6×0.75 | ||||||||||||||||
SHC203 | 0.18 | |||||||||||||||
SHC203-11 | 1/ 4- 28 | 0.18 | ||||||||||||||
SHC204 | M6×0.75 | 0.17 | ||||||||||||||
SHC204-12 | 1/ 4- 28 | 0.17 | ||||||||||||||
SHC205 SHC205-14 SHC205-15 SHC205-16 |
7/8 15/16 1 |
25
|
52 |
31.7 |
17 |
14.3 |
17.4 |
4.2 |
41.2 |
38.1 |
13.5 |
5 |
M6×0.75 |
11.16 |
6 |
0.20 0.24 0.23 0.21 |
1/ 4- 28 | ||||||||||||||||
SHC206 SHC206-17 SHC206-18 SHC206-19 SHC206-20 |
1-1/16 1-1/8 1-3/16 1-1/4 |
30
|
62 |
34.1 |
19 |
15.9 |
18.2 |
5.0 |
46 |
44.5 |
15.9 |
6 |
M8×1 |
15.81 |
8.64 |
0.30 0.35 0.33 0.30 0.27 |
5/ 16- 24 |
||||||||||||||||
SHC207 SHC207-20 SHC207-21 SHC207-22 SHC207-23 |
1-1/4 1-5/16 1-3/8 1-7/16 |
35
|
72 |
36.3 |
20 |
17.5 |
18.8 |
5.7 |
49.8 |
55.6 |
17.5 |
6.5 |
M8×1 |
20.83 |
11.68 |
0.54 0.60 0.57 0.54 0.5 |
5/ 16- 24 |
||||||||||||||||
SHC208 SHC208-24 SHC208-25 |
1-1/2 1-9/16 |
40
|
80 | 40.4 | 21 | 19 | 21.4 | 6.3 | 53.9 | 60.3 | 18.3 | 6.5 | M8×1 | 23.55 | 13.6 |
0.69 0.73 0.70 |
5/ 16- 24 | ||||||||||||||||
SHC209 SHC209-26 SHC209-27 SHC209-28 |
1-5/8 1-11/16 1-3/4 |
45
|
85 |
40.5 |
22 |
19.1 |
21.4 |
6.3 |
54 |
63.5 |
18.3 |
6.5 |
M8×1 |
26.35 |
15.6 |
0.75 0.90 0.83 0.79 |
5/ 16- 24 | ||||||||||||||||
SHC210 SHC210-29 SHC210-30 SHC210-31 SHC210-32 |
1-3/16 1-7/8 1-15/16 2 |
50 |
90 |
43.6 |
24 |
19 |
24.6 |
6.6 |
57.1 |
69.9 |
18.3 |
6.5 |
M8×1 |
28.48 |
18 |
1.03 1.17 1.12 1.06 1.00 |
5/ 16- 24 |
||||||||||||||||
SHC211 SHC211-32 SHC211-33 SHC211-34 SHC211-35 |
2 2-1/16 2-1/8 2-3/16 |
55
|
100 |
49.9 |
25 |
22.2 |
27.8 |
7.0 |
65.8 |
76.2 |
20.7 |
8 |
M10×1.25 |
35.28 |
22.4 |
1.30 1.49 1.42 1.35 1.32 |
3/ 8- 24 | ||||||||||||||||
SHC212 SHC212-36 SHC212-37 SHC212-38 SHC212-39 |
2-1/4 2-5/16 2-3/8 2-7/16 |
60
|
110 |
56.3 |
27 |
35.4 |
30.95 |
7.0 |
72.2 |
84.2 |
22.3 |
8 |
M10×1.25 |
42.5 |
27.6 |
1.60 1.85 1.76 1.67 1.58 |
3/ 8- 24 |
