Product Details:
|
| Name: | MZ Series Cam Clutch | Material: | High-Alloy Bearing Quality Steel GB GCr15 / AISI 52100 |
|---|---|---|---|
| Brand Name: | Neutral Or Customized | Keyway: | Yes, Keyway On Inner Race |
| Size Range: | Bore Sizes From 15 Mm To 70 Mm | Application: | Gears, Pulleys And Clutch Assemblies. |
| Re-lubrication: | Yes, He MZ Series Comes Pre-lubricated With Grease And Is Ready To Install | Package: | Single Box Or As Your Requirements |
| High Light: | One Way miniature sprag clutch,Overrunning miniature sprag clutch,MZ Series Cam Clutch |
||

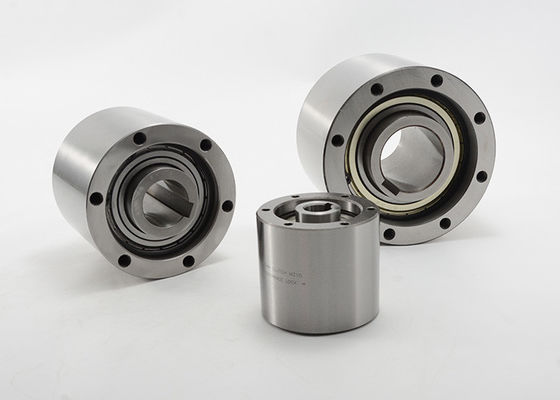

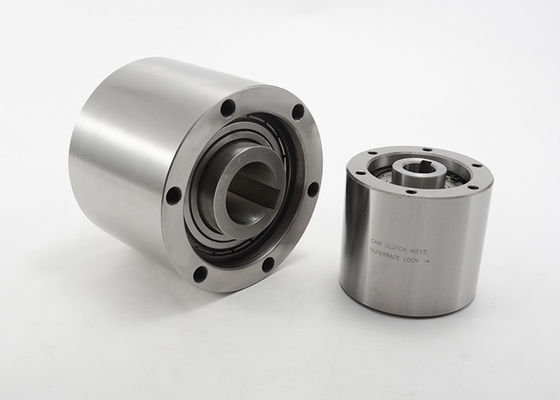

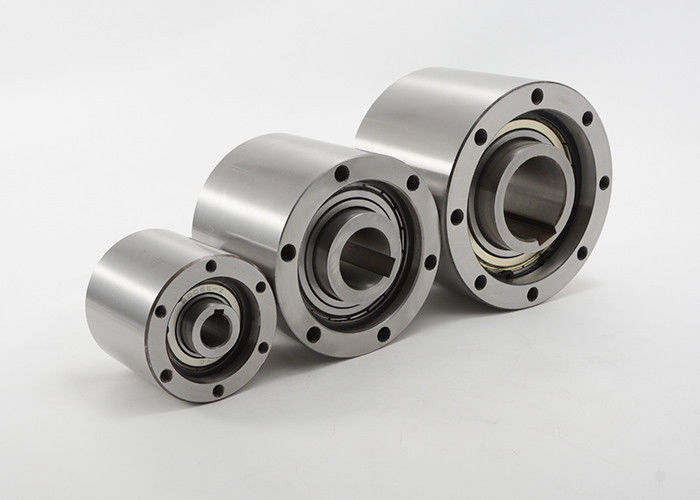

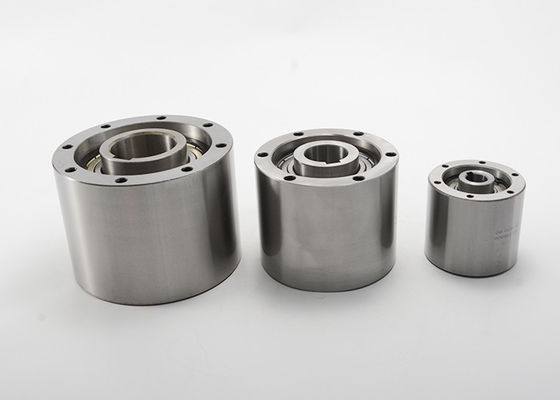

MZ Series Cam Clutch One Way Clutches Sprag Bearings Overrunning Clutch
MZ Series Cam Clutch products are designed for general overrunning applications. The MZ Series can be used in applications which require the inner or outer race to have overrunning capability. The MZ Series comes pre-lubricated with grease and is ready to install. No lubrication maintenance is required. This series is ideal for gears, pulleys and clutch assemblies.
MZ Series Cam Clutch Specifications:
| Type | Bore sizes | Bore Keyway | Dimension(mm) | |||||||
| d | A | B | C | D | E | F | G | s | ||
| MZ15 | 15 | 5 x 2.3 | 62 | 68 | 60 | 58 | 47 | 25 | 5.5 | 10 |
| MZ17 | 17 | 5 x 2.3 | 66 | 75 | 64 | 64 | 52 | 28 | 6.3 | 10 |
| MZ20 | 20 | 6 x 2.8 | 67 | 80 | 65 | 65 | 55 | 30 | 7.6 | 12 |
| MZ30-22 | 22 | 6 x 2.8 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 16 |
| MZ30-25 | 25 | 8 x 3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 16 |
| MZ30 | 30 | 10 x 3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 16 |
| MZ35 | 35 | 10 x 3.3 | 87 | 110 | 85 | 95 | 80 | 50 | 8.7 | 16 |
| MZ45-40 | 40 | 12 x 3.3 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 16 |
| MZ45 | 45 | 14x 3.8 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 16 |
| MZ60-50 | 50 | 14x 3.8 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 16 |
| MZ60-55 | 55 | 16x 4.3 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 16 |
| MZ60 | 60 | 18 x 4.4 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 16 |
| MZ70-65 | 65 | 18 x 4.4 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 16 |
| MZ70 | 70 | 20x 4.9 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 16 |
| Type | Bore sizes | Bore Keyway | Max. Torque (Nm) | Drag Torque (Nm) | Max. Overrunning Speed (rpm) | Max. Indexing (cpm) | H-M no. of Tapped Holes x Size x Pitch | Net Weight (kg) | |
| d | Inner Race | Outer Race | |||||||
| MZ15 | 15 | 5 x 2.3 | 186 | 0.20 | 1800 | 900 | 150 | 6 x M5 x P0.8 | 1.4 |
| MZ17 | 17 | 5 x 2.3 | 215 | 0.20 | 1700 | 800 | 150 | 6 x M5 x P0.8 | 1.8 |
| MZ20 | 20 | 6 x 2.8 | 323 | 0.29 | 1600 | 700 | 150 | 6 x M6 x P1.0 | 2 |
| MZ30-22 | 22 | 6 x 2.8 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.7 |
| MZ30-25 | 25 | 8 x 3.3 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.7 |
| MZ30 | 30 | 10 x 3.3 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.7 |
| MZ35 | 35 | 10 x 3.3 | 1080 | 0.49 | 1400 | 300 | 150 | 6 x M8 x P1.25 | 4.8 |
| MZ45-40 | 40 | 12 x 3.3 | 1620 | 0.69 | 1400 | 300 | 150 | 6 x M8 x P1.25 | 6.2 |
| MZ45 | 45 | 14x 3.8 | 1620 | 0.69 | 1400 | 300 | 150 | 6 x M8 x P1.25 | 6.2 |
| MZ60-50 | 50 | 14x 3.8 | 2110 | 0.98 | 1200 | 250 | 150 | 6 x M8 x P1.25 | 10.2 |
| MZ60-55 | 55 | 16x 4.3 | 2110 | 0.98 | 1200 | 250 | 150 | 6 x M8 x P1.25 | 10.2 |
| MZ60 | 60 | 18 x 4.4 | 2110 | 0.98 | 1200 | 250 | 150 | 6 x M8 x P1.25 | 10.2 |
| MZ70-65 | 65 | 18 x 4.4 | 3040 | 1.27 | 1100 | 250 | 150 | 6 x M8 x P1.25 | 13.2 |
| MZ70 | 70 | 20x 4.9 | 3040 | 1.27 | 1100 | 250 | 150 | 6 x M8 x P1.25 | 13.2 |
