Product Details:
|
Name: | MZ-G Series Cam Clutch | Material: | High-Alloy Bearing Quality Steel |
---|---|---|---|
Bore Keyway: | Yes | Surface Finish: | No Treatment |
Size Range: | Bore Sizes From 15 Mm To 70 Mm | Feature: | Outer Race Being Ground Finish |
Pre-lubricated: | Yes | Lubrication Maintenance Required: | No |
High Light: | MZ15G One Way Clutch Bearing,freewheel sprag clutch motorcycle,sprag clutch motorcycle ground finish |

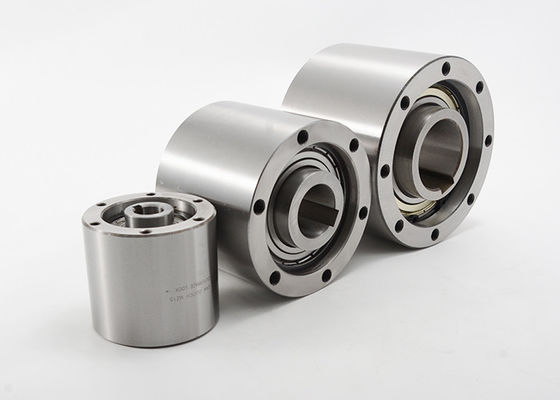

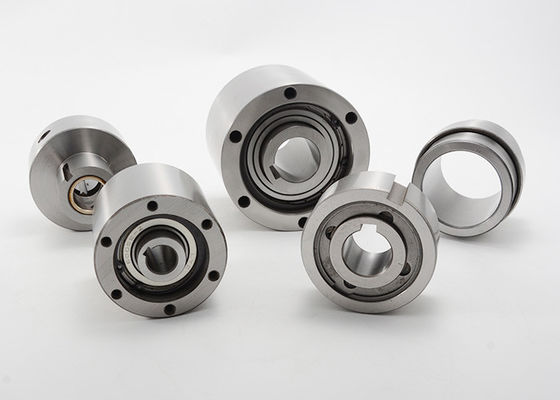

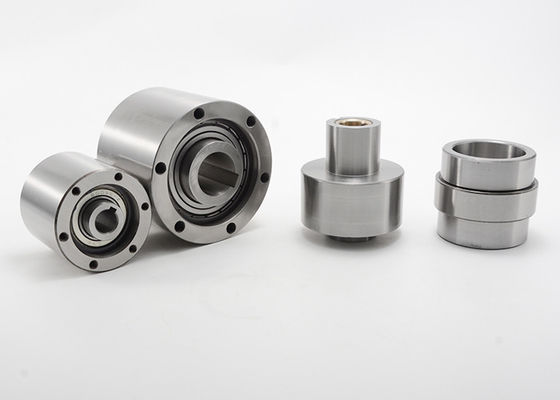

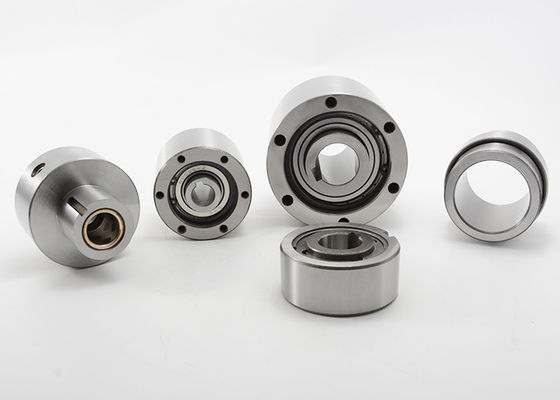

MZ15G Cam Clutch One Way Sprag Freewheel Clutch Bearing Outer Race Ground Finish
MZ Series clutch is pre-lubricated with grease and is ready to install and requires no lubrication maintenance. This series is ideal for general applications. The outer race of the MZ-G Series is machine finished.
MZ-G Series Cam Clutch Specifications:
Type | Bore sizes | Bore Keyway | Dimension(mm) | ||||||
d | A (Overall Width) | C (Overall Race Width) | B (Overall Diameter) | F (Inner Race O.D.) | E (Outer Race I.D.) | D (Pitch Circle Diameter) | s (Thread Depth) | ||
MZ15G | 15 | 5 x 2.3 | 55 | 53 | 68 | 25 | 47 | 58 | 10 |
MZ17G | 17 | 5 x 2.3 | 63 | 61 | 75 | 28 | 52 | 64 | 10 |
MZ20G | 20 | 5 x 2.3 | 64 | 62 | 80 | 30 | 55 | 68 | 12 |
MZ30G-22 | 22 | 8 x 3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
MZ30G-25 | 25 | 8 x 3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
MZ30G | 30 | 10 x 3.3 | 70 | 68 | 100 | 45 | 75 | 88 | 16 |
MZ35G | 35 | 10 x 3.3 | 78 | 76 | 110 | 50 | 80 | 95 | 16 |
MZ45G-40 | 40 | 12 x 3.3 | 87 | 85 | 125 | 60 | 95 | 110 | 16 |
MZ45G | 45 | 12 x 3.3 | 87 | 85 | 125 | 60 | 95 | 110 | 16 |
MZ60G-50 | 50 | 14 x 3.8 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
MZ60G-55 | 55 | 16 x 4.3 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
MZ60G | 60 | 18 x 4.4 | 90 | 88 | 155 | 80 | 125 | 140 | 16 |
MZ70G-65 | 65 | 18 x 4.4 | 105 | 103 | 175 | 95 | 145 | 162 | 16 |
MZ70G | 70 | 20 x 4.9 | 105 | 103 | 175 | 95 | 145 | 162 | 16 |
Type | Bore sizes | Max. Torque (Nm) | Drag Torque (Nm) | Max. Overrunning Speed (rpm) | Max. Indexing (cpm) | H-M no. of Tapped Holes x Size x Pitch | Net Weight (kg) | |
d | Inner Race | Outer Race | ||||||
MZ15G | 15 | 186 | 0.20 | 1800 | 900 | 150 | 6 x M5 x P0.8 | 1.3 |
MZ17G | 17 | 215 | 0.20 | 1700 | 800 | 150 | 6 x M5 x P0.8 | 1.7 |
MZ20G | 20 | 323 | 0.29 | 1600 | 700 | 150 | 6 x M6 x P1.0 | 1.9 |
MZ30G-22 | 22 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
MZ30G-25 | 25 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
MZ30G | 30 | 735 | 0.39 | 1500 | 500 | 150 | 6 x M8 x P1.25 | 3.2 |
MZ35G | 35 | 1080 | 0.49 | 1400 | 300 | 150 | 6 x M8 x P1.25 | 4.4 |
MZ45G-40 | 40 | 1620 | 0.69 | 1400 | 300 | 150 | 8 x M8 x P1.25 | 6.2 |
MZ45G | 45 | 1620 | 0.69 | 1400 | 300 | 150 | 8 x M8 x P1.25 | 6.2 |
MZ60G-50 | 50 | 2110 | 0.98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
MZ60G-55 | 55 | 2110 | 0.98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
MZ60G | 60 | 2110 | 0.98 | 1200 | 250 | 150 | 8 x M8 x P1.25 | 9.5 |
MZ70G-65 | 65 | 3040 | 1.27 | 1100 | 250 | 150 | 8 x M8 x P1.25 | 13.1 |
MZ70G | 70 | 3040 | 1.27 | 1100 | 250 | 150 | 8 x M8 x P1.25 | 13.1 |
