Product Details:
|
| Name: | Cam Clutch (One-way Clutch Bearing) | Material: | Bearing Steel GCr15 |
|---|---|---|---|
| Bearing Supported: | Yes | Surface Finish: | No Special Treatment |
| Size Range: | Bore Sizes From 10 Mm To 45 Mm | Other Features: | High Torque Capacities With Excellent Wear Life |
| Lubrication: | For Indexing Use, Oil Lubrication Is Recommended | Application: | Requibackstop, Overriding, And Index Cluthes In The Industryred |
| High Light: | PB10 sprag clutch bearing,cam sprag clutch bearing,gcr15 one way starter clutch |
||

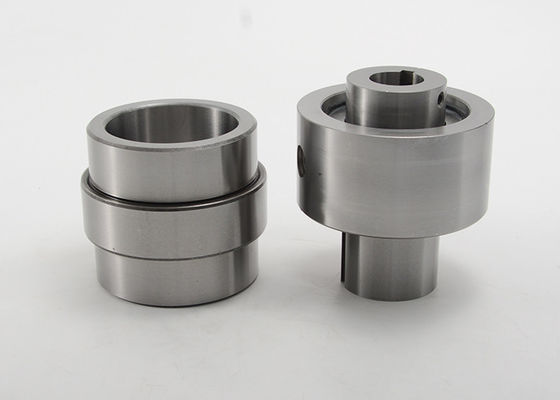

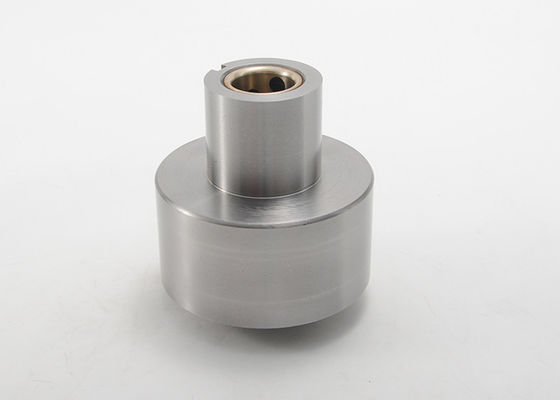

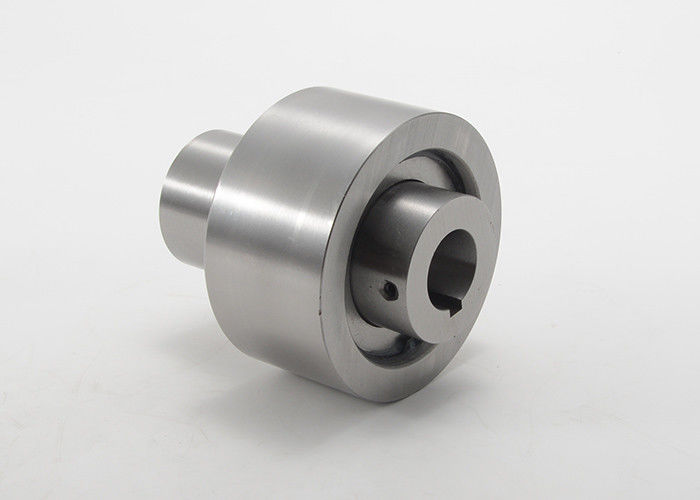

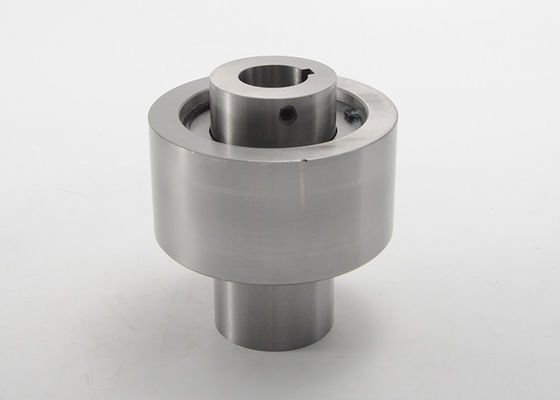

Cam Clutch One Way Clutch Bearing Sprag Clutch PB10
Key Features:
Installation and Usage
1. Concentricities of the inner race and the outer race are maintained by the plain bearing located between the outer race and the shaft. Radial load which works on the outer race is also supported by this plain bearing. The shaft must therefore be extended through the clutch outer race end.
2. Do not use the PB Series Cam Clutch as a coupling. Use with a flexible coupling when connecting two shafts.
3. Specify right (RH) or left hand (LH) inner race drive viewed from the end marked by the arrow in the illustration above. Check if the rotation of the clutch is correct before being run-in.
4. For indexing use, oil lubrication is recommended.
5. Key to be used should be in accordance with JIS B1301-1959
6. Thrust load should be supported by other devices, not by the Cam Clutch.
7. The bore of the driven member, such as the sprocket on the clutch outer race, should meet H6 or H7 tolerance of the JIS standard.
Cam Clutch One Way Clutch Bearing Sprag Clutch PB Series Dimensions:
| Type | Bore sizes | Bore Keyway | Dimension(mm) | Outer Keyway Size | |||||||
| d | A | B | C (h7) | D | E | F | G | K | L | ||
| PB3 | 10 | 4 x 1.5 | 50 | 50 | 23 | 22 | 25 | 21 | 25.7 | 4 x 2.5 | 16 |
| PB5 | 16 | 5 x 2.0 | 70 | 60 | 32 | 32 | 35 | 25 | 38.8 | 5 x 3.0 | 20 |
| PB6 | 20 | 5 x 2.0 | 82 | 73 | 38 | 38 | 37 | 33 | 41.0 | 5x 3.0 | 27 |
| PB8 | 25 | 7x 3.0 | 85 | 83 | 45 | 40 | 45 | 33 | 42.0 | 7 x 4.0 | 27 |
| PB10 | 31.5 | 10x 3.5 | 92 | 95 | 60 | 41 | 60 | 37 | 44.0 | 10x 4.5 | 28 |
| PB12 | 40 | 10x 3.5 | 100 | 113 | 65 | 50 | 66 | 37 | 52.6 | 10x 4.5 | 29 |
| PB14 | 45 | 12x3.5 | 112 | 133 | 75 | 54 | 76 | 41 | 57.3 | 12x 4.5 | 30 |
| Type | Bore sizes | Max. Torque (Nm) | Drag Torque (Nm) | Max. Overrunning Speed (rpm) | Max. Indexing (cpm) | Lubrication Filler Plug Size x Pitch | Net Weight (kg) | |
| d | Inner Race | Outer Race | ||||||
| PB3 | 10 | 29.4 | 0.196 | 1800 | 900 | 150 | M6 x P1.0 | 0.23 |
| PB5 | 16 | 147 | 0.196 | 1800 | 900 | 150 | M6 x P1.0 | 0.58 |
| PB6 | 20 | 382 | 0.196 | 1500 | 800 | 150 | M6 x P1.0 | 1.1 |
| PB8 | 25 | 568 | 0.294 | 1200 | 650 | 150 | M6 x P1.0 | 1.6 |
| PB10 | 31.5 | 843 | 0.392 | 1000 | 400 | 150 | M6 x P1.0 | 2.5 |
| PB12 | 40 | 1530 | 0.392 | 800 | 300 | 150 | M6 x P1.0 | 3.6 |
| PB14 | 45 | 2110 | 0.588 | 700 | 300 | 150 | M6 x P1.0 | 6.0 |
