Product Details:
|
| Name: | Cam Clutch (One-way Cam Clutches) | Category: | One Way Clutch Bearing |
|---|---|---|---|
| Series: | TSS | Inch - Metric: | Metric Dimensions |
| Material: | High-Alloy Bearing Quality Steel | Other Features: | High Torque Capacity / Direct Drop-in Design / Vertical Keyways |
| Lubrication: | Pre-lubricated With Oil | Applications: | High Speed Systems With Low Profile Requirements |
| High Light: | TSS One Way Clutch Bearing,sprag cam clutch bearing,freewheel cam clutch bearing |
||

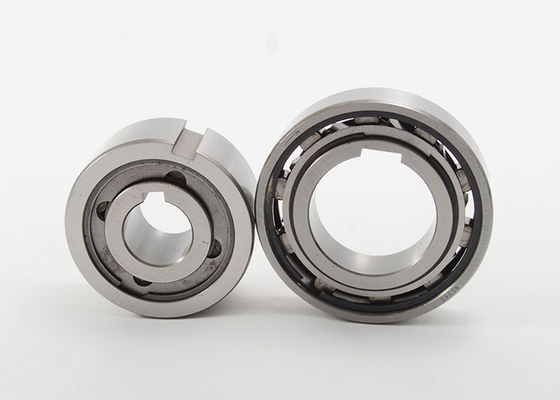

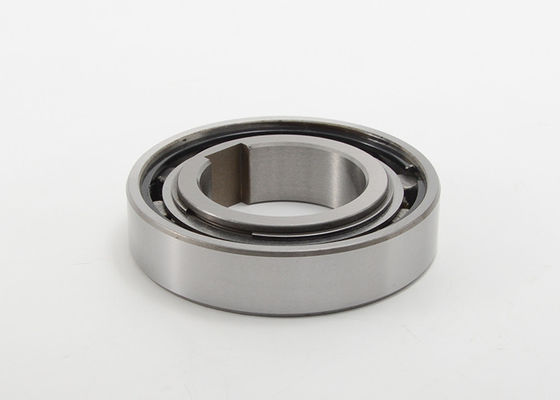

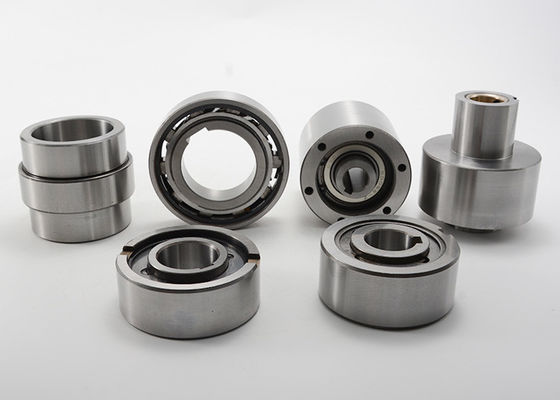

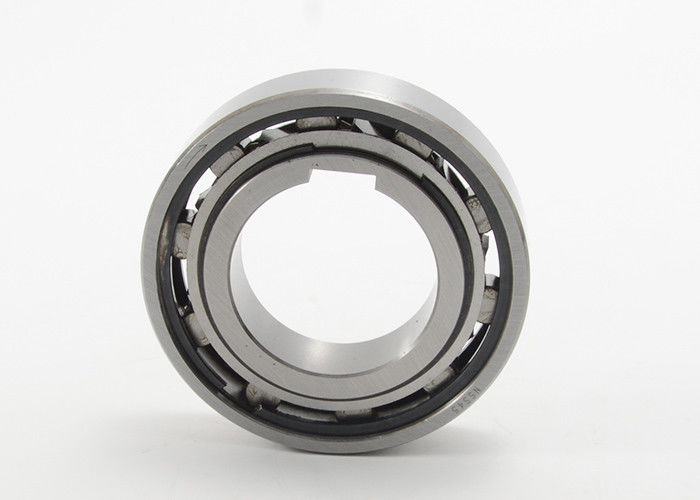

TSS Series Cam Clutch Sprag Freewheel One Way Clutch Bearing
TSS Series Cam Clutch Sprag Freewheel One Way Clutch Bearing Specifications:
| Type | Bore sizes | Bore Keyway | Dimension(mm) | |||||
| d | A (Overall Width) | B (Overall Diameter) | C (Outer Race I.D.) | D (Inner Race I.D.) | E (Offset) | F (Chamfer) | ||
| TSS8 | 8 | 2 x 1.0 | 8 | 21 | 22.2 | 11.4 | 0.6 | 0.6 |
| TSS10 | 10 | 3 x 1.4 | 9 | 30 | 27 | 15.6 | 0.6 | 0.6 |
| TSS12 | 12 | 4 x 18 | 10 | 32 | 29.5 | 18 | 0.6 | 0.6 |
| TSS15 | 15 | 5 x 1.2 | 11 | 35 | 32 | 20.6 | 0.6 | 0.6 |
| TSS20 | 20 | 6 x 1.6 | 14 | 47 | 40 | 26.7 | 0.8 | 0.8 |
| TSS25 | 25 | 8 x2.0 | 15 | 52 | 45 | 32 | 0.8 | 0.8 |
| TSS30 | 30 | 8 x 2.0 | 16 | 62 | 55 | 40 | 0.8 | 1.0 |
| TSS35 | 35 | 10x 2.4 | 17 | 72 | 63 | 45 | 0.8 | 1.0 |
| TSS40 | 40 | 12 x 2.2 | 18 | 80 | 72 | 50 | 0.8 | 1.0 |
| TSS45 | 45 | 14 x 2.1 | 19 | 85 | 75.5 | 57 | 1.2 | 1.0 |
| TSS50 | 50 | 14 x 2.1 | 20 | 90 | 82 | 62 | 1.2 | 1.0 |
| TSS60 | 60 | 18 x 2.3 | 22 | 110 | 100 | 80 | 1.2 | 1.5 |
Specifications:
| Type | Bore sizes | Max. Torque (Nm) | Drag Torque (Nm) | Max. Overrunning Speed (rpm) | Net Weight (g) | |
| d | Inner Race | Outer Race | ||||
| TSS8 | 8 | 6.7 | 0.005 | 6000 | 3000 | 14 |
| TSS10 | 10 | 12 | 0.007 | 4500 | 2300 | 27 |
| TSS12 | 12 | 17 | 0.009 | 4000 | 2000 | 31 |
| TSS15 | 15 | 22 | 0.010 | 3500 | 1800 | 39 |
| TSS20 | 20 | 41 | 0.010 | 2600 | 1300 | 115 |
| TSS25 | 25 | 56 | 0.020 | 2200 | 1100 | 140 |
| TSS30 | 30 | 105 | 0.030 | 1800 | 900 | 215 |
| TSS35 | 35 | 136 | 0.030 | 1600 | 800 | 300 |
| TSS40 | 40 | 296 | 0.180 | 1400 | 700 | 425 |
| TSS45 | 45 | 247 | 0.210 | 1300 | 650 | 495 |
| TSS50 | 50 | 403 | 0.220 | 1200 | 600 | 545 |
| TSS60 | 60 | 649 | 0.330 | 910 | 460 | 950 |
