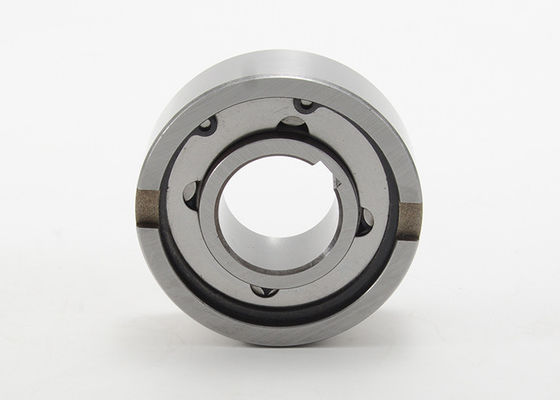

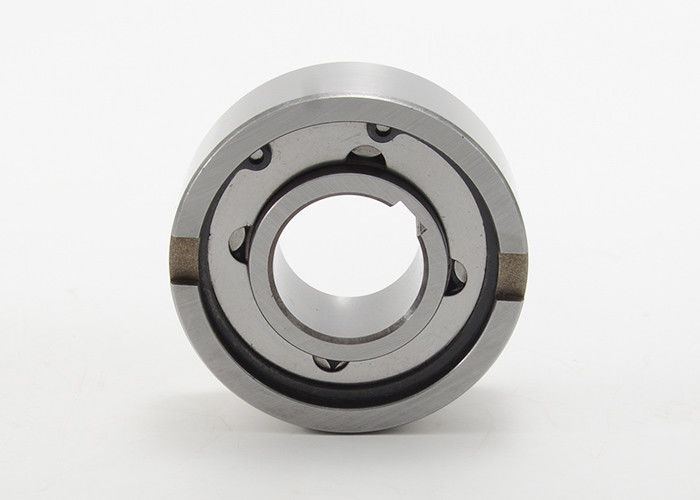

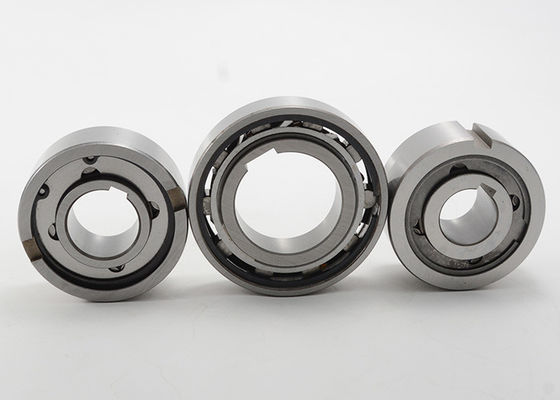

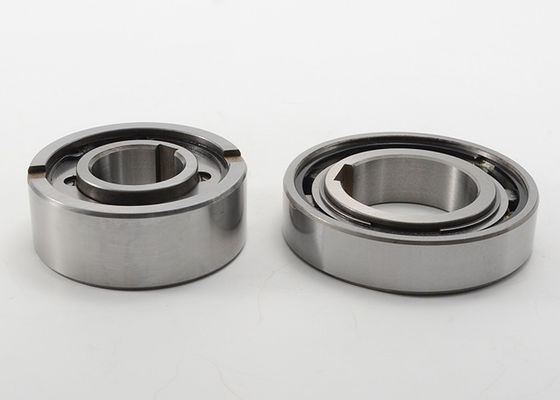

Single Direction Keyways Backstop Cam Clutch 1 Way Clutch Bearing TFS

Description
Name: Cam Clutch (One Way Cam Clutch Bearing) Bearing Material: High-Alloy Bearing Quality Steel GCr15
Inch - Metric: Metric Dimensions Surface Finish: No Treatment
Other Features: With Keyway On The Inner Ring And Two Radial, Face-side Grooves On The Outer Ring On Both Sides. Lubrication: TFS Series Ships Pre-lubricated With Oil.
Temperature Range: Approx. -10°C To + 50°C. Application: Ideal For General Inner Or Outer Race Overrunning Applications
High Light:

single direction backstop cam clutch

,

keyways backstop cam clutch

,

1 way clutch bearing TFS

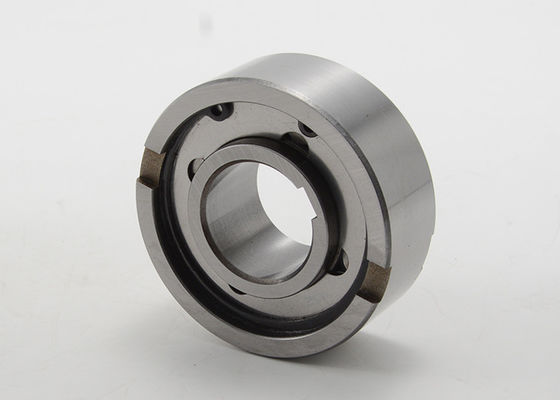

TFS Freewheels Cam Clutch Single Directional One Way Clutch Bearing With Keyways



TFS Series Cam Clutch is a sprag type clutch designed for press fit installation. Sprag type designs typically have a higher torque capacity than a similarly sized ramp & roller type clutch. TFS has two vertical keyways on the outer race to assist with locating. Outside dimensions are the same as Series 63 ball bearings. This design is ideal for general inner or outer race overrunning applications. Since the TFS Series does not include an integral bearing, installing the TFS Cam Clutch next to a bearing which handles both the axial and radial loads is the typical application. TFS Series ships pre-lubricated with oil.



Keyway:

The keyway is up to diameter d=12mm according to DIN 6885-1. Above that according to DIN 6885-3.



Mounting:

For the bearing and the freewheel, the same installation tolerances must be provided. Recommended housing tolerance H7. For the shaft h7. If the tolerance of the housing inner diameter for the freewheel TFS is K6, no feather keys are required on the end face grooves of the freewheel. During installation, care must be taken to ensure the correct direction of rotation. The direction of rotation is indicated by a marking arrow on the freewheel.



Lubrication:

Oil lubrication. TFS Series ships pre-lubricated with oil.



Temperature range:

approx. -10°C to + 50°C.



Other versions on request.





Freewheels Cam Clutch Single Directional One Way Clutch Bearing With Keyways TFS Series Specifications:

Clutch Bearing Type Bore sizes Bore Keyway Dimension(mm)
d A (Overall Width) B (Overall Diameter) C (Outer Race I.D.) D (Inner Race I.D.) E (Chamfer) F (Chamfer) G (Slot Width) H (Slot Depth)
TFS12 12 4 x 1.8 13 35 30 18 0.6 0.3 4 1.4
TFS15 15 5 x 1.2 18 42 36 22 0.8 0.3 5 1.8
TFS17 17 5 x 1.2 19 47 38 22 1.2 0.8 5 2.3
TFS20 20 6x 1.6 21 52 45 27 1.2 0.8 6 2.3
TFS25 25 8x 2.0 24 62 52 35 1.2 0.8 8 2.8
TFS30 30 8 x 2.0 27 72 62 40 1.8 1.0 10 2.5
TFS35 35 10 x 2.4 31 80 70 48 1.8 1.0 12 3.5
TFS40 40 12 x 2.2 33 90 78 54.5 1.8 1.0 12 4.1
TFS45 45 14 x 2.1 36 100 85.3 59 1.8 1.0 14 4.6
TFS50 50 14 x 2.1 40 110 92 65 1.8 1.0 14 5.6
TFS60 60 18x 2.3 46 130 110 84 2.6 1.5 18 5.5
TFS70 70 20 x 2.7 51 150 125 91 2.6 1.5 20 6.9
TFS80 80 24 x 3.1 58 170 140 100 2.6 1.5 20 7.5



Specifications:

Clutch Bearing Type Bore sizes Max. Torque (Nm) Drag Torque (Nm) Max. Overrunning Speed (rpm) Net Weight (g)
d Inner Race Outer Race
TFS12 12 18 0.040 4500 2300 68
TFS15 15 28 0.060 3500 1800 120
TFS17 17 50 0.110 3200 1600 150
TFS20 20 84 0.180 2500 1300 220
TFS25 25 128 0.190 2000 1000 360
TFS30 30 200 0.210 1600 800 530
TFS35 35 475 0.420 1400 700 790
TFS40 40 607 0.460 1300 650 1050
TFS45 45 756 0.560 1100 550 1370
TFS50 50 1124 0.600 1000 500 1900
TFS60 60 1975 0.870 840 420 3110
TFS70 70 2514 0.910 750 380 4390
TFS80 80 3924 1.220 670 340 6440
