Product Details:
|
| Name: | One Way Needle Bearing/Clutch | Drawn Cup Type: | Roller Clutch |
|---|---|---|---|
| Closure Type: | Open | Number Of Rows: | One |
| Coating: | Without | Shape Of Outer Surface: | Smooth Outside Surface |
| Spring Design: | Standard, Steel Pressure Springs | Operating Temperature Range: | -10 To +70 °C |
| High Light: | high torque One Way Clutch Bearing,high torque one way needle bearing,one way needle bearing With Steel Springs |
||

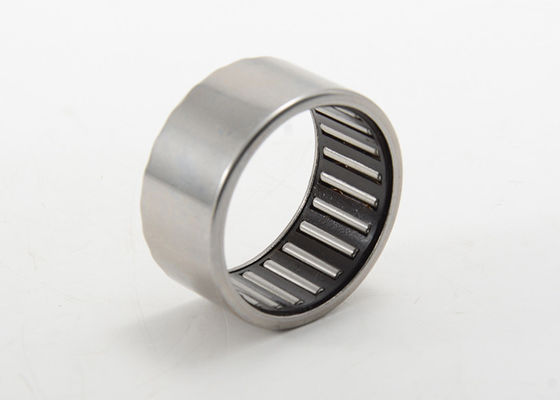

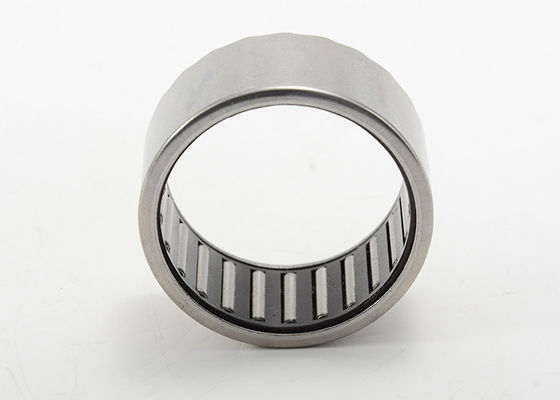

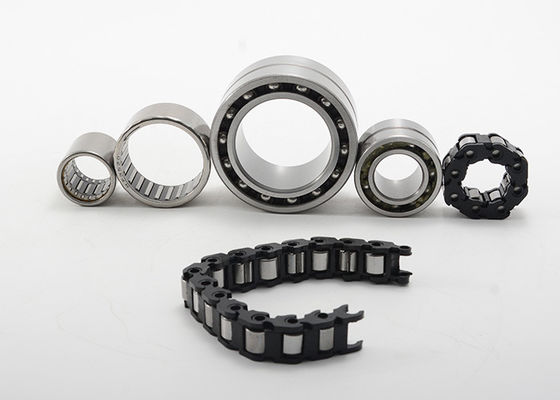

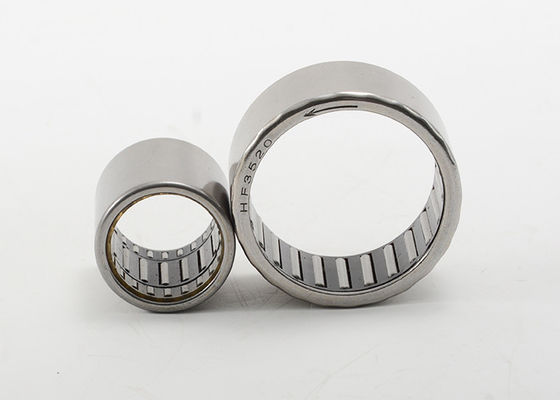

One Way Needle Bearing Drawn Cup Needle Roller Clutches With Steel Springs
Drawn cup roller clutches are one-way clutches, the name of which is derived from the thin-walled, drawn outer rings (cups). They can transmit high torques in one direction and have an extensive range of applications, for example as indexing clutches, back-stopping clutches and overrunning clutches.
Due to their design, drawn cup roller clutches have a very high indexing accuracy, a high indexing frequency and a low overrunning frictional torque.
In order to guarantee concentricity and, as a result, correct functioning, a support bearing arrangement is necessary for drawn cup roller clutches. Drawn cup roller clutches are therefore available with an integrated bearing arrangement (HFL). For drawn cup roller clutches without an integrated bearing arrangement (HF), the support bearing arrangement must be provided by additional rolling bearings.
Drawn cup roller clutches are available with or without knurling. They are supplied greased as standard. For applications with oil lubrication, drawn cup roller clutches are available without greasing.
One Way Needle Bearing Drawn Cup Roller Clutches With Steel Springs HF Series Specifications:
|
Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | Basic Load Rating | Limiting Speed |
Limiting Speed |
||||
| Bearing Code | Fw | D | C | Dynamic | Static | Static | Oil | Oil | ||
| mm | g | mm | N | rpm | ||||||
| 4 | HF0406 | 1 | 4 | 8 | 6 | 34000 | 14000 | 0.34 | ||
| 6 | HF0612 | 3 | 6 | 10 | 12 | 23000 | 13000 | 1.76 | ||
| 8 | HF0812 | 3.5 | 8 | 12 | 12 | 17000 | 12000 | 3.15 | ||
| 10 | HF1012 | 4 | 10 | 14 | 12 | 14000 | 11000 | 5.3 | ||
| 12 | HF1216 | 11.6 | 12 | 18 | 16 | 11000 | 8000 | 12.2 | ||
| 14 | HF1416 | 13 | 14 | 20 | 16 | 9500 | 8000 | 17.3 | ||
| 16 | HF1616 | 14 | 16 | 22 | 16 | 8500 | 7500 | 20.5 | ||
| 18 | HF1816 | 15.5 | 18 | 24 | 16 | 7500 | 7500 | 24.1 | ||
| 20 | HF2016 | 17 | 20 | 26 | 16 | 7000 | 6500 | 28.1 | ||
| 25 | HF2520 | 30.9 | 25 | 32 | 20 | 5500 | 5500 | 66 | ||
| 30 | HF3020 | 36 | 30 | 37 | 20 | 4500 | 4500 | 90 | ||
| 35 | HF3520 | 40 | 35 | 42 | 20 | 3900 | 3900 | 121 | ||
