Product Details:
|
| Name: | Drawn Cup Needle Roller Bearing (Roller Clutch) | Drawn Cup Type: | Needle Roller Bearing/Clutch |
|---|---|---|---|
| Bearing Material: | Steel | Closure: | Open |
| Inch - Metric: | Inch | Load Direction: | Radial |
| Lubricant Material: | Grease / Oil | Operating Temperature(min)(°C): | -30°C To 90°C |
| Lubrication: | Designed For Oil Lubrication | Application: | Automobile Field; Drive-Lines; Engine; Industrial Machinery Field; Steering Systems; Transmission; Wind Power Generation |
| High Light: | drawn cup One Way Clutch Bearing,radial One Way Clutch Bearing,open needle roller bearing |
||

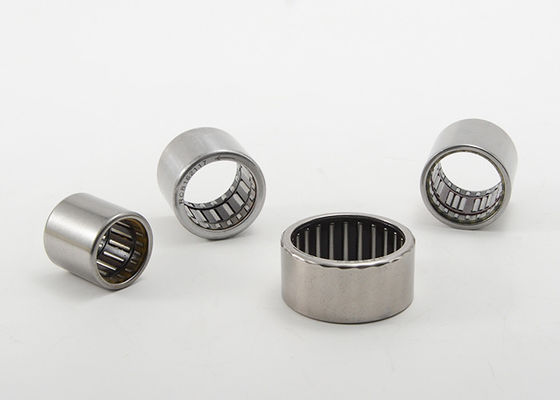

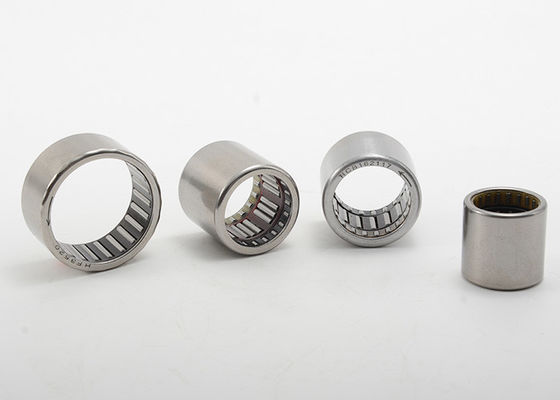

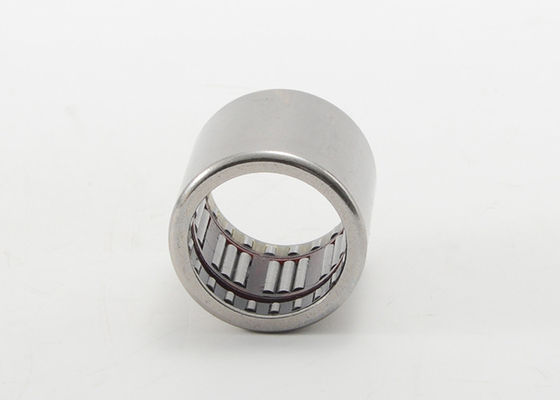

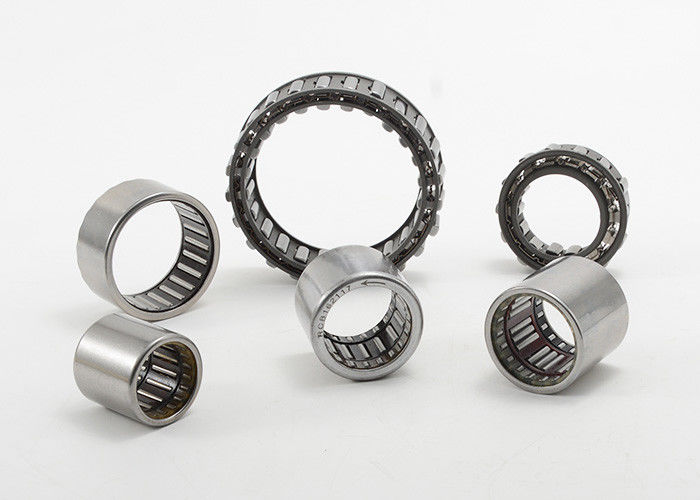

Roller Clutch One Way Clutch Drawn Cup Needle Roller Bearing Open Inch Size
Product Description
These needle roller bearings include a clutch in the assembly that move the bearing in a single direction. Their outer shell, or cup, serves as the outer-ring raceway. The cup is drawn from a strip of steel and case-hardened. These bearing and clutch assemblies are often used in conveyor applications that require movement in only one direction.
Features:
Roller Clutch One Way Clutch Drawn Cup Needle Roller Bearing Specifications:
| Bearing Designation |
Mass Approx |
Boundary Dimensions |
Limiting Speed |
Transmission torque |
||||||
| Fw | D | C | ||||||||
| g | inch | mm | inch | mm | inch | mm | rpm | N.m | ||
| — | R2-02 | 2 | 1/ 8 | 3.18 | 9/32 | 7.14 | 0.250 | 6.35 | 50000 | 2.86 |
| — | FC-4 | 1 | 0.16 | 4 | 0.31 | 8 | 0.236 | 6 | 50000 | 2.78 |
| FCS-6 | — | 3.5 | 0.24 | 6 | 0.39 | 10 | 0.472 | 12 | 39300 | 18.6 |
| — | RC-040708 | 3.5 | 1/ 4 | 6.35 | 7/16 | 11.11 | 0.500 | 12.70 | 38000 | 17.2 |
| FCL-8-K | — | 4.7 | 0.31 | 8 | 0.47 | 12 | 0.472 | 12 | 28700 | 28.7 |
| FC-8 | — | 4 | 0.31 | 8 | 0.55 | 14 | 0.472 | 12 | 30500 | 35.8 |
| RC-061008-FS* | RC-061008 | 4.7 | 3/ 8 | 9.52 | 5/8 | 15.88 | 0.500 | 12.70 | 25300 | 45.4 |
| FCL-10-K | — | 4 | 0.39 | 10 | 0.55 | 14 | 0.472 | 12 | 22700 | 39.1 |
| FC-10 | — | 4.8 | 0.39 | 10 | 0.63 | 16 | 0.472 | 12 | 23700 | 50.4 |
| FC-12 | — | 11 | 0.47 | 12 | 0.71 | 18 | 0.630 | 16 | 19300 | 118 |
| RC-081208-FS* | RC-081208 | 9.2 | 1/2 | 12.70 | 3/4 | 19.05 | 0.500 | 12.70 | 18700 | 73.6 |
| RC-101410-FS* | RC-101410 | 14.5 | 5/8 | 15.88 | 7/8 | 22.22 | 0.625 | 15.88 | 14700 | 143 |
| FC-16 | — | 14 | 0.63 | 16 | 0.87 | 22 | 0.630 | 16 | 14000 | 182 |
| RS-121610-FS* | — | 17 | 3/4 | 19.05 | 1 | 25.40 | 0.625 | 15.88 | 11300 | 196 |
| FC-20 | RC-162110 | 17 | 0.79 | 20 | 1.02 | 26 | 0.630 | 16 | 10700 | 274 |
| FC-25 | — | 30 | 0.98 | 25 | 1.26 | 32 | 0.787 | 20 | 8570 | 605 |
| RC-162110-FS* | — | 25.4 | 1 | 25.40 | 15/16 | 33.34 | 0.625 | 15.88 | 8670 | 412 |
| FC-30 | — | 36 | 1.18 | 30 | 1.46 | 37 | 0.787 | 20 | 7330 | 845 |
| FCS-35 | — | 40 | 1.38 | 35 | 1.65 | 42 | 0.787 | 20 | 6130 | 913 |
