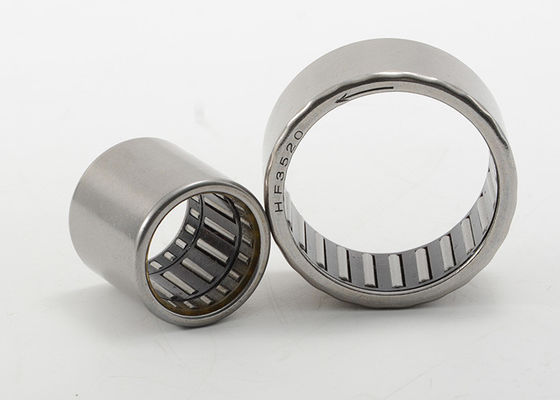

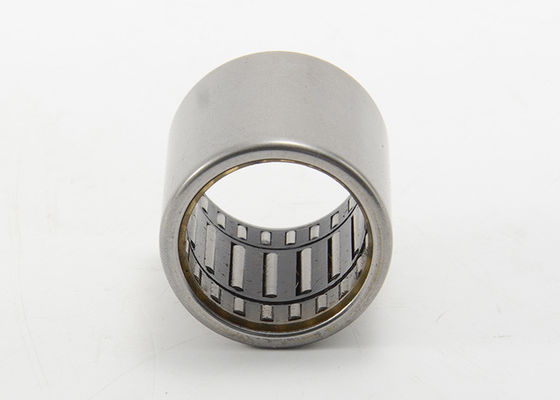

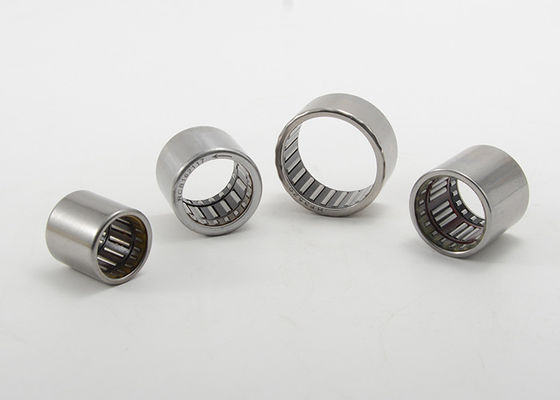

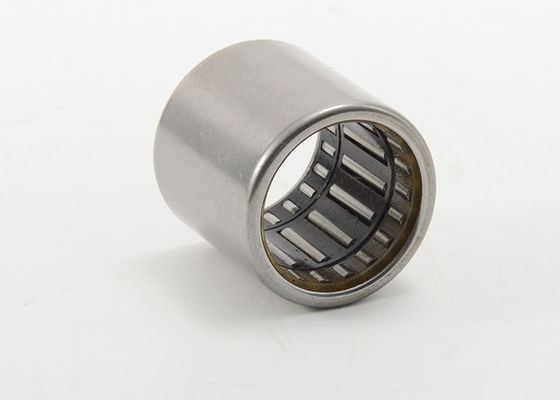

Shell Type Drawn Cup One Way Needle Roller Bearing Open Type HFL 2026 Bearing

Shell Type Drawn Cup One Way Needle Bearing Clutch Roller Clutch HFL2026

Drawn cup roller clutches are one-way clutches comprising thin‑walled, drawn outer rings with a series of ramps on the inside diameter, plastic cages or steel cage, pressure springs and needle rollers. They can transmit high torques in one direction and are particularly compact in a radial direction. The roller clutches are available with and without bearing arrangements.

HFL Series Drawn cup roller clutches are therefore available with an integrated bearing arrangement.

Drawn cup roller clutches are available with or without knurling. They are supplied greased as standard. For applications with oil lubrication, drawn cup roller clutches are available without greasing.

Drawn cup roller clutches:

• are one-way clutches, which transmit torques in one direction
• are available with or without an integrated bearing arrangement
• give very precise indexing
• allow high indexing frequencies
• have a low overrunning frictional torque
• are available with or without greasing
• are particularly compact in a radial direction and therefore permit extremely compact designs
• are suitable for housing materials made from steel, light metal or plastic
• can be combined with drawn cup needle roller bearings with open ends HK and drawn cup needle roller bearings with closed end BK
• have an extensive range of applications, for example as indexing clutches, back-stopping clutches and overrunning clutches

Drawn Cup One Way Needle Bearing Clutch Roller Clutch HFL Series Specifications:
