Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20

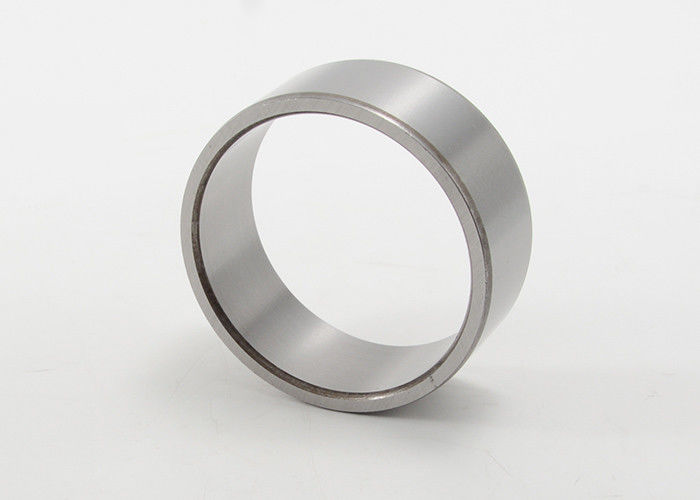

Large Image : Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	IR16X20X20, IR20X25X20 - Hardened Rolling Bearing Steel Inner Ring

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	USD0.5 per Piece (Send inquiry for details)
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-30 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20

Description

Name:	Hardened Rolling Bearing Steel Inner Ring	Material:	Hardened Rolling Bearing Steel 100Cr6 / GCr15 / AISI52100
Part No.:	IR16X20X20 IR20X25X20	Surface Finish:	Neutral Machined Bearing Steel Surface
Metric/ Inch:	Metric	Basic Construction Type:	Thru Hardened Precision Machined Or Ground Raceways
Lubrication Groove:	Available With And Without A Lubrication Hole.	Heat Treatment:	Quenching
High Light:	IR inner race of bearing , Chromium inner race of bearing , 100Cr6 inner ring

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20

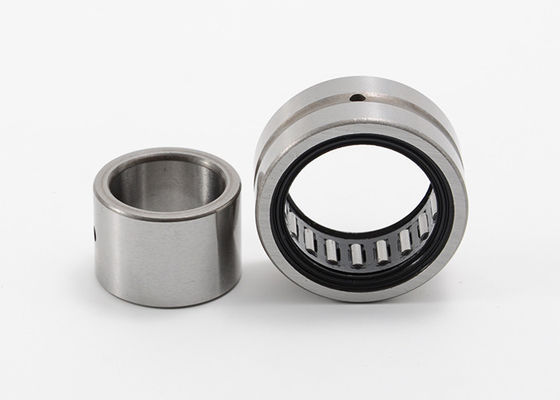

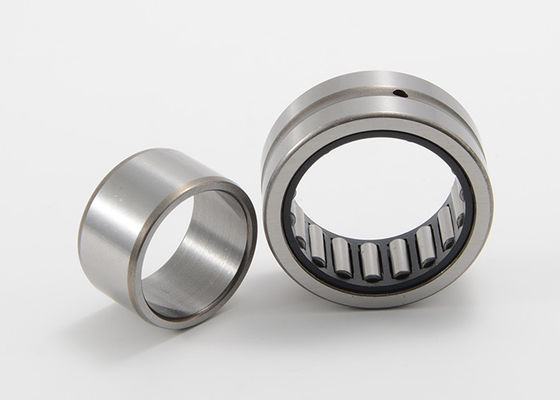

Inner rings are made from hardened rolling bearing steel and have precision machined or ground raceways. They are used where:

The shaft cannot be used as a raceway for needle roller and cage assemblies, drawn cup needle roller bearings with open ends or with closed ends and needle roller bearings
Needle roller bearings must be combined with wider inner rings in order to allow larger axial displacements of the shaft in relation to the housing
Optimum running surfaces are required for seal lips

Inner rings, precision machined:

IR inner rings have a precision machined raceway. Chamfers on the end faces allow easy insertion into the bearing and prevent damage to the seal lips of the bearing. Inner rings are available with and without a lubrication hole.

Hardened Rolling Bearing Steel Inner Ring IR Series Specifications:

Shaft Diam- eter	Bearing Designation	Mass Approx	Boundary Dimensions
Shaft Diam- eter		Mass Approx	d	F	B
mm		g	mm
14	IR14X25X30		14	25	30
15	IR15X18X12.5	7.2	15	18	12.5
	IR15X18X15.5		15	18	15.5
	IR15X18X16	9.6	15	18	16
	IR15X18X16.5	9.9	15	18	16.5
	IR15X18X17.5		15	18	17.5
	IR15X18X20.5		15	18	20.5
	IR15X199X10		15	19	10
	IR15X19X13.5		15	19	13.5
	IR15X19X16	12.8	15	19	16
	IR15X19X16.5		15	19	16.5
	IR15X19X20	16.4	15	19	20
	IR15X19X20.5		15	19	20.5
	IR15X20X12	12.1	15	20	12
	IR15X20X13	13.5	15	20	13
	IR15X20X14	14.7	15	20	14
	IR15X20x14		15	20	14
	IR15X20X15		15	20	15
	IR15X20X15.5		15	20	15.5
	IR15X20X16		15	20	16
	IR15X20X18		15	20	18
	IR15X20X20		15	20	20
	IR15X20X20.5		15	20	20.5
	IR15X20X23	24.4	15	20	23
	IR15X20X25.5		15	20	25.5
	IR15X20X30.5		15	20	30.5
16	IR16X20X14		16	20	14
	IR16X20X16		16	20	16
	IR16X20X20		16	20	20
	IR16X20X32		16	20	32
	IR16X24X20		16	24	20
17	IR17X20X16	10.7	17	20	16
	IR17X20X16.5	11.1	17	20	16.5
	IR17X20X20	13.5	17	20	20
	IR17X20X20.5	13.8	17	20	20.5
	IR17X20X30		17	20	30
	IR17X20X30.5	20.6	17	20	30.5
	IR17X21X16	14.3	17	21	16
	IR17X21X16.5		17	21	16.5

17	IR17X21X20	18	17	21	20
	IR17X21X20.5		17	21	20.5
	IR17X22X13	14.9	17	22	13
	IR17X22X14	16.4	17	22	14
	IR17X22X15.5		17	22	15.5
	IR17X22X16	18.7	17	22	16
	IR17X22X20.5		17	22	20.5
	IR17X22X23	27.1	17	22	23
	IR17X22X26		17	22	26
	IR17X22X32		17	22	32
	IR17X22X20	33.6	17	24	20
18	IR18X22X17.8		18	22	17.8
18	IR18X22X19		18	22	19
20	IR20X24X16	16.5	20	24	16
	IR20X24X16.5		20	24	16.5
	IR20X24X28.5		20	24	28.5
	IR20X25X10.5		20	25	10.5
	IR20X25X12.5	20	20	25	12.5
	IR20X25X15.5		20	25	15.5
	IR20X25X17	22.4	20	25	17
	IR20X25X18	24.3	20	25	18
	IR20X25X20	27.5	20	25	20
	IR20X25X20.5	28.2	20	25	20.5
	IR20X25X23		20	25	23
	IR20X25X25		20	25	25
	IR20X25X25.5		20	25	25.5
	IR20X25X26		20	25	26
	IR20X25X26.5	36.1	20	25	26.5
	IR20X25X30	40.9	20	25	30
	IR20X25X30.5		20	25	30.5
	IR20X25X32		20	25	32
	IR20X25X32A		20	25	32
	IR20X25X320H		20	25	32
	IR20X25X38.5	52.5	20	25	38.5
	IR20X26X16		20	26	16
	IR20X26X20		20	26	20
	IR20X28X20	45.2	20	28	20
	IR20X30X30		20	30	30

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20 0

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20 1

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20 2

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20 3

Hardened Rolling Bearing Steel Inner Ring IR16X20X20 IR20X25X20 4
