Product Details:
|
| Name: | Inner Rings For Shell Type Needle Roller Bearings | Material: | High-Alloy Bearing Quality Steel |
|---|---|---|---|
| Part No.: | IRT81210, IRT101420, IRT202520 | Surface Finish: | Machined Surface, No Treatment |
| Metric Or Inch: | Metric | Lubrication Groove: | No |
| Basic Construction Type: | Hardened Precision Ground Inner Rings | Application: | These Rings Are Designed To Provide A Durable Surface For Shell-type Needle Roller Bearings With Non-machined Raceways. |
| High Light: | IRT needle bearing inner ring,Chromium needle bearing inner ring,MI 10 N inner bearing race |
||

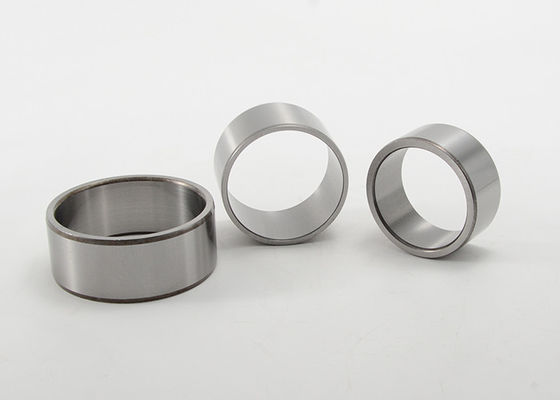

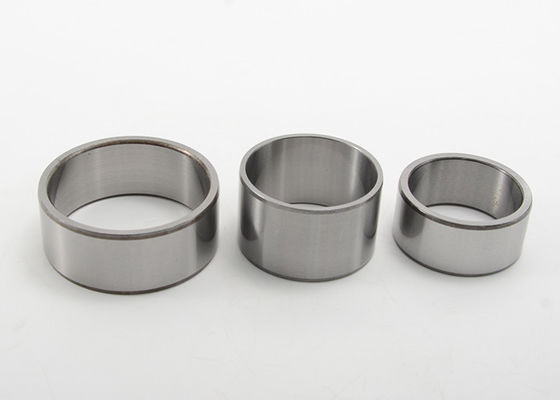

Inner Rings for Shell Type Needle Roller Bearings IRT81210 IRT101420 IRT202520
Inner rings can be integrated with shell-type or various machined needle roller bearings to provide good roller support without worrying about premature shaft wear. We heat-treat and grind our inner rings to tight tolerances to create hard, tough raceways for applications where it is impossible to make shaft surfaces to a specific hardness or roughness attribute.
IRT Series
MOUETTE offers more interchange both standard and customized inner rings, in High-Alloy Bearing Quality Steel 100Cr6, and Stainless steel 440C.
Inner Rings for Shell Type Needle Roller Bearings Metric IRT Series Specifications:
|
Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | ||
| d | F | B | |||
| mm | g | mm | |||
| 6 | IRT6912 | 6 | 9 | 12 | |
| IRT61912 | 6 | 19 | 12 | ||
| IRT61916 | 6 | 19 | 16 | ||
| 7 | IRT710 | 3.2 | 7 | 10 | 10.5 |
| IRT712 | 3.9 | 7 | 10 | 12.5 | |
| IRT715 | 4.8 | 7 | 10 | 15.5 | |
| 8 | IRT81011 | 8 | 10 | 11 | |
| IRT81210 | 8 | 12 | 10 | ||
| IRT81212 | 8 | 12 | 12 | ||
| IRT81215 | 8 | 12 | 15 | ||
| IRT81215.5 | 7.5 | 8 | 12 | 15.5 | |
| 9 | IRT91211 | 9 | 12 | 11 | |
| IRT91212 | 9 | 12 | 12 | ||
| IRT91216 | 9 | 12 | 16 | ||
| 10 | IRT101312 | 10 | 13 | 12 | |
| IRT1012-2 | 7.2 | 10 | 14 | 12.5 | |
| IRT101416 | 10 | 14 | 16 | ||
| IRT101420 | 10 | 14 | 20 | ||
| IRT101515 | 10 | 15 | 15 | ||
| IRT1015-1 | 11.7 | 10 | 15 | 15.5 | |
| IRT101520 | 10 | 15 | 20 | ||
| IRT101525 | 10 | 15 | 25 | ||
| 12 | IRT121512 | 12 | 15 | 12 | |
| IRT121516.5 | 8.1 | 12 | 15 | 16.5 | |
| IRT121522 | 12 | 15 | 22 | ||
| IRT121612 | 12 | 16 | 12 | ||
| IRT1212-1 | 8.5 | 12 | 16 | 12.5 | |
| IRT1216-1 | 11.2 | 12 | 16 | 16.5 | |
| IRT121620 | 12 | 16 | 20 | ||
| IRT121622 | 12 | 16 | 22 | ||
| IRT121715 | 12 | 17 | 15 | ||
| 15 | IRT151815 | 15 | 18 | 15 | |
| IRT151816.5 | 9.9 | 15 | 18 | 16.5 | |
| IRT151820 | 15 | 18 | 20 | ||
| IRT151825 | 15 | 18 | 25 | ||
| IRT151910 | 15 | 19 | 10 | ||
| IRT151916 | 15 | 19 | 16 | ||
| IRT151920 | 15 | 19 | 20 | ||
| IRT152012 | 15 | 20 | 12 | ||
| 15 | IRT152013 | 15 | 20 | 13 | |
| IRT152015 | 15 | 20 | 15 | ||
| IRT152018 | 15 | 20 | 18 | ||
| IRT152020 | 15 | 20 | 20 | ||
| IRT152023 | 15 | 20 | 23 | ||
| IRT152025 | 15 | 20 | 25 | ||
| IRT152030 | 15 | 20 | 30 | ||
| 16 | IRT162220 | 16 | 22 | 20 | |
| 17 | IRT172020 | 17 | 20 | 20 | |
| IRT172020.5 | 13.7 | 17 | 20 | 20.5 | |
| IRT172030 | 17 | 20 | 30 | ||
| IRT172030.5 | 20.5 | 17 | 20 | 30.5 | |
| IRT172116 | 17 | 21 | 16 | ||
| IRT1716-1 | 15.1 | 17 | 21 | 16.5 | |
| IRT172120 | 17 | 21 | 20 | ||
| IRT1720-1 | 18.8 | 17 | 21 | 20.5 | |
| IRT172213 | 17 | 22 | 13 | ||
| IRT172215 | 17 | 22 | 15 | ||
| IRT1715-2 | 18.3 | 17 | 22 | 15.5 | |
| IRT1716-2 | 19.4 | 17 | 22 | 16.5 | |
| IRT172228 | 17 | 22 | 28 | ||
| IRT172220 | 17 | 22 | 20 | ||
| IRT1720-2 | 24 | 17 | 22 | 20.5 | |
| IRT172223 | 17 | 22 | 23 | ||
| IRT172225 | 17 | 22 | 25 | ||
| IRT1725-2 | 30 | 17 | 22 | 25.5 | |
| IRT172230 | 17 | 22 | 30 | ||
| IRT1730-2 | 36 | 17 | 22 | 30.5 | |
| IRT172232 | 17 | 22 | 32 | ||
| IRT172413 | 17 | 24 | 13 | ||
| IRT172420 | 17 | 24 | 20 | ||
| 18 | IRT182213 | 18 | 22 | 13 | |
| IRT182220 | 18 | 22 | 20 | ||
| 20 | IRT202416 | 20 | 24 | 16 | |
| IRT202416.5 | 17.5 | 20 | 24 | 16.5 | |
| IRT202420 | 20 | 24 | 20 | ||
| IRT202420.5 | 22 | 20 | 24 | 20.5 | |
| IRT202428 | 3.5 | 20 | 24 | 28.5 | |
| IRT2010-1 | 14.3 | 20 | 25 | 10.5 |
| 20 | IRT2015-1 | 21 | 20 | 25 | 15.5 |
| IRT202516 | 20 | 25 | 16 | ||
| IRT202517 | 20 | 25 | 17 | ||
| IRT202520 | 20 | 25 | 20 | ||
| IRT2020-1 | 28 | 20 | 25 | 20.5 | |
| IRT202523 | 20 | 25 | 23 | ||
| IRT202525 | 20 | 25 | 25 | ||
| IRT2025-1 | 34.5 | 20 | 25 | 25.5 | |
| IRT2026-1 | 36 | 20 | 25 | 26.5 | |
| IRT202530 | 20 | 25 | 30 | ||
| IRT2030-1 | 41.5 | 20 | 25 | 30.5 | |
| IRT2038-1 | 52.5 | 20 | 25 | 38.5 | |
| IRT202820 | 20 | 28 | 20 |
