Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: IR35X40X20 IR45X50X40 - Metric Machined Grounded Inner Ring for Needle Bearings
Payment & Shipping Terms:
Minimum Order Quantity: 200
Price: USD0.5 per Piece (ASKED)
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-25 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.

Metric Machined Grounded Bearing Inner Ring For Needle Bearings IR35X40X20 IR45X50X40

Description
Name: Metric Machined Grounded Inner Ring For Needle Bearings Material: High-Alloy Bearing Quality Steel
Part No.: IR35X40X20, IR45X50X40 Surface Finish: Neutral Machined
Size (Metric Or Inch): Metric Basic Construction Type: Inner Rings, Precision Machined
Lubrication Groove: Inner Rings Are Available With And Without A Lubrication Hole. Processing: Machined
High Light:

100cr6 Bearing Inner Ring

,

Chromium needle bearing inner race

,

MI 10 N needle bearing inner race

Metric Machined Grounded Inner Ring for Needle Bearings IR35X40X20 IR45X50X40

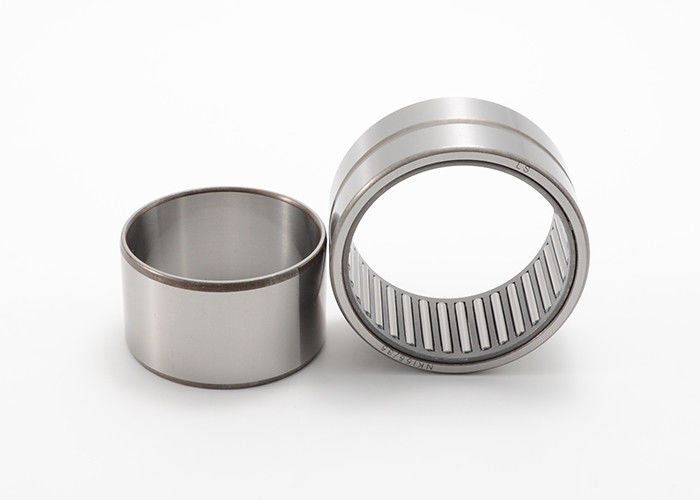

Inner Ring (Needle bearing bush, bearing race) is precisely processed by Chrome steel 100Cr6(AISI52100 or GCr15), mainly used where:
the shaft cannot be used as a raceway for needle roller and cage assemblies, drawn cup needle roller bearings with open ends or with closed ends and needle roller bearings.

Main characteristic:
  • High hardness, big rigidness
  • Big specifications, easy to choose
  • Big range of size

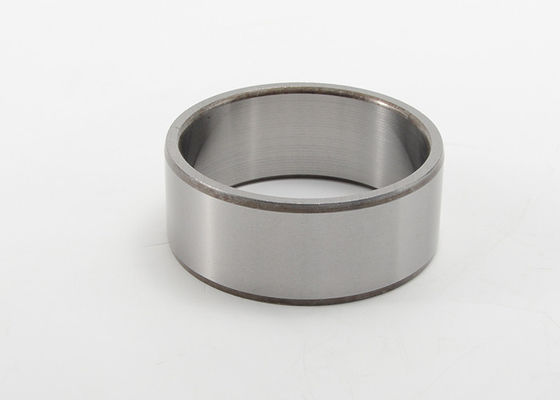

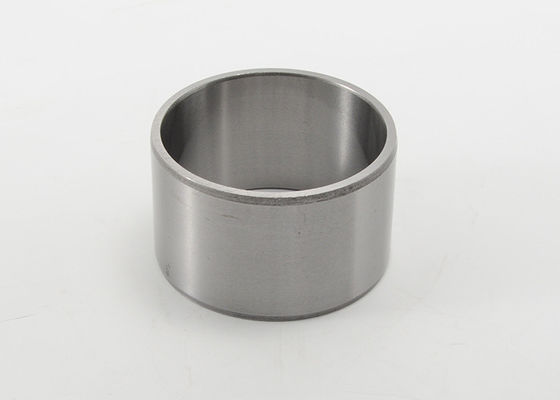

Inner rings, precision machined

IR inner rings have a precision machined raceway. Chamfers on the end faces allow easy insertion into the bearing and prevent damage to the seal lips of the bearing. Inner rings are available with and without a lubrication hole.



Metric Machined Grounded Inner Ring for Needle Bearings Specifications:

Shaft

Diameter

Bearing

Designation

Mass

Approx

Boundary Dimensions
d F B
mm g mm
35 IR35X40X12.5 27.2 35 40 12.5
IR35X40X15   35 40 15
35 IR35X40X15.5   35 40 15.5
IR35X40X16.5 37.4 35 40 16.5
IR35X40X17 38.3 35 40 17
IR35X40X20 44.4 35 40 20
IR35X40X20.5 46.1 35 40 20.5
IR35X40X21   35 40 21
IR35X40X25   35 40 25
IR35X40X25.5   35 40 25.5
IR35X40X30 67.9 35 40 30
IR35X40X30.5   35 40 30.5
IR35X40X34   35 40 34
IR35X40X40   35 40 40
IR35X42X20 63.9 35 42 20
IR35X42X20.5 66 35 42 20.5
IR35X42X21 67.7 35 42 21
IR35X42X23 74 35 42 23
IR35X42X36 117 35 42 36
IR35X42X37   35 42 37
IR35X43X22 82 35 43 22
IR35X65X28   35 65 28
36 IR36.2X50X25.5   36 50 25.5
38 IR38X43X20 48.1 38 43 20
IR38X43X30 73.6 38 43 30
IR38X45X46   38 45 46
40 IR40X45X12   40 45 12
IR40X45X16   40 45 16
IR40X45X16.5 41.4 40 45 16.5
IR40X45X17 42.5 40 45 17
IR40X45X20 50.5 40 45 20
IR40X45X20.5 52.5 40 45 20.5
IR40X45X22.5   40 45 22.5
IR40X45X25   40 45 25
IR40X45X25.5   40 45 25.5
IR40X45X30 77.1 40 45 30
IR40X45X30.5   40 45 30.5
IR40X45X34   40 45 34
IR40X45X40   40 45 40
IR40X45X40.5   40 45 40.5
IR40X45X40ASI   40 45 40
40 IR40X48X22   40 48 22
IR40X48X23   40 48 23
IR40X48X30   40 48 30
IR40X48X40   40 48 40
IR40X49.5X40   40 49.5 40
IR40X50X20.5   40 50 20.5
IR40X50X20   40 50 20
IR40X50X22   40 50 22
IR40X50X35   40 50 35
IR40X55X17   40 55 17
42 IR42X47X20   42 47 20
IR42X47X30   42 47 30
44 IR44X52X32   44 52 32
45 IR45X50X14   45 50 14
IR45X50X15.5   45 50 15.5
IR45X50X20   45 50 20
IR45X50X20.5   45 50 20.5
IR45X50X25   45 50 25
IR45X50X25.5   45 50 25.5
IR45X50X26   45 50 26
IR45X50X30.5   45 50 30.5
IR45X50X35   45 50 35
IR45X50X40   45 50 40
IR45X50X40.5   45 50 40.5
IR45X50X45.5   45 50 45.5
IR45X52X22   45 52 22
IR45X52X23   45 52 23
IR45X52X40   45 52 40
IR45X55X20   45 55 20
IR45X55X22   45 55 22
IR45X55X40   45 55 40
45.2 IR45.2X58X36   42.5 58 36
47 IR47X60X35   47 60 35
48 IR48X55X20   48 55 20
50 IR50X55X17   50 55 17
IR50X55X20   50 55 20
IR50X55X20.5   50 55 20.5
IR50X55X25   50 55 25
IR50X55X25.5   50 55 25.5
