Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60

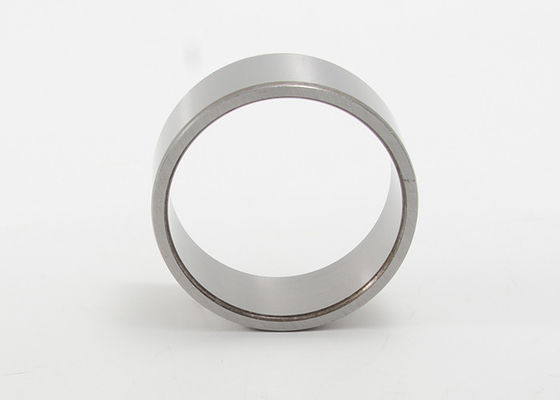

Large Image : Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	IR50X60X50, IR130X150X60 - Chrome Steel 100Cr6 Machined Inner rings

Payment & Shipping Terms:

Minimum Order Quantity:	1.5
Price:	USD1 per Piece
Packaging Details:	Plastic film + Cartons + European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60

Description

Name:	Machined Inner Ring	Material:	Chrome Steel 100Cr6
Part No.:	IR50X60X50 IR130X150X60	Surface Finish:	Neutral Machined Bearing Steel Surface
Size Range:	Shaft Diameter From 14mm To 220mm	Basic Construction Type:	Thru Hardened Precision Ground Rings
Lubrication Groove:	Have	Processing:	Machined
High Light:	IR needle roller bearing inner race , machined needle roller bearing inner race , MI 10 N ball bearing ring

Chrome Steel 100Cr6 Machined Inner rings IR50X60X50 IR130X150X60

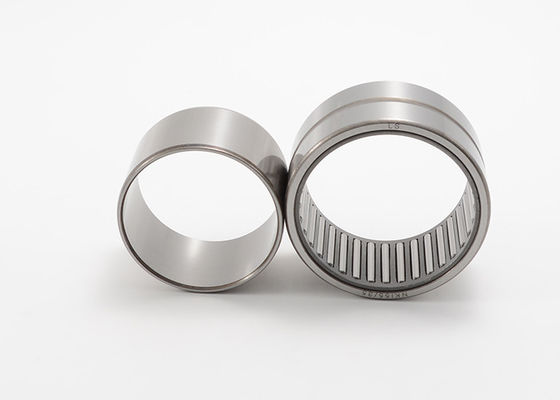

Precision ground inner ring provides a hardened raceway for the rollers when used with an unhardened shaft. The ring contains an oil hole and annular groove for re-lubrication of the bearing and can be used with both CAGEROL and GUIDEROL bearings or can be utilized as a bushing in plain bearing applications.

Main characteristic

High hardness, big rigidness
Big specifications, easy to choose
Big range of size

Chrome Steel 100Cr6 Machined Inner rings IR series Specifications:

Shaft Diameter	Bearing Designation	Mass Approx	Boundary Dimensions
Shaft Diameter		Mass Approx	d	F	B
mm		g	mm
50	IR50X55X26		50	55	26
	IR50X55X35	112	50	55	35
	IR50X55X40		50	55	40
	IR50X55X42		50	55	42
	IR50X55X45.5		50	55	45.5
	IR50X55X20		50	55.3	20.3
	IR50X56X21.5		50	56	21.5
	IR50X58X16		50	58	16
	IR50X58X22	115	50	58	22
	IR50X58X23	119	50	58	23
	IR50X58X40	209	50	58	40
	IR50X60X20	129	50	60	20
	IR50X60X25	163	50	60	25
	IR50X60X25.5		50	60	25.5
	IR50X60X28	183	50	60	28
	IR50X60X50		50	60	50
	IR50X60X50.5		50	60	50.5
51	IR51X63X52		51	63	52
54	IR54X60X25		54	60	25
55	IR55X60X12		55	60	12
	IR55X60X25	86	55	60	25
	IR55X60X32.5EGS		55	60	32.5
	IR55X60X35	121	55	60	35
	IR55X60X36EGS		55	60	36
	IR55X63X25	141	55	63	25
	IR55X63X45	256	55	63	45
	IR55X63X65.25		55	63	65.25
	IR55X65X20		55	65	20
	IR55X65X25		55	65	25
	IR55X65X28	198	55	65	28
	IR55X65X30		55	65	30
	IR55X65X60		55	65	60
	IR55X65X90		55	65	90
	IR55X65X110		55	65	110
60	IR60X68X25	152	60	68	25
	IR60X68X35	213	60	68	35
	IR60X68X45	275	60	68	45
	IR60X70X30		60	70	30
	IR60X70X25	195	60	70	25

60	IR60X70X28	216	60	70	28
	IR60X70X30		60	70	30
	IR60X70X35		60	70	35
	IR60X70X60		60	70	60
	IR60X73X35		60	73	35
65	IR65X72X25	142	65	72	25
	IR65X72X45	259	65	72	45
	IR65X73X25	164	65	73	25
	IR65X75X28	230	65	75	28
	IR65X75X30		65	75	30
70	IR70X80X25	224	70	80	25
	IR70X80X30	267	70	80	30
	IR70X80X54	487	70	80	54
	IR70X80X56	506	70	80	56
	IR70X80X60		70	80	60
	IR70X80X80		70	80	80
73	IR73X80X35		73	80	35
75	IR75X85X35	238	75	85	35
	IR75X85X25	287	75	85	25
	IR75X85X54	520	75	85	54
78	IR78X90X80		78	90	80
80	IR80X90X25	254	80	90	25
	IR80X90X30	304	80	90	30
	IR80X90X35	355	80	90	35
	IR80X90X54	550	80	90	54
	IR80X92X50		80	92	50
85	IR85X95X26	280	85	95	26
	IR85X95X30		85	95	30
	IR85X100X35	580	85	100	35
	IR85X95X36		85	95	36
	IR85X100X63	100	85	100	63
88	IR88X100X30		88	100	30
90	IR90X100X26	294	90	100	26
	IR90X100X30	340	90	100	30
	IR90X105X36	610	90	105	35
	IR90X105X63	1110	90	105	63
	IR90X110X35		90	110	56
95	IR95X105X26	313	95	105	26
130	IR130X150X50	1690	130	150	50

130	IR130X150X60		130	150	60
140	IR140X150X40		140	150	40
	IR140X160X50		140	160	50
	IR140X160X50A	1800	140	160	50
150	IR150X165X40		150	165	40
	IR150X165X50	1120	150	165	50
	IR150X170X60		150	170	60
160	IR160X175X70	1200	160	175	70
170	IR170X180X45		170	180	45
170	IR170X185X45		170	185	45
220	IR220X240X50		220	240	50

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60 0

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60 1

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60 2

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60 3

Chrome Steel 100Cr6 Machined Inner Rings IR50X60X50 IR130X150X60 4
