Product Details:
|
Name: | Sprag Freewheel One Way Clutch Bearing | Structure: | One Way Clutch |
---|---|---|---|
Material: | High-Alloy Bearing Quality Steel | Surface Finish: | No Treatment |
Seals Type: | Open | Number Of Row: | Single Row |
Lubrication: | Designed For Oil Lubrication | Applications: | Motorcyle,ATV,textile Machine,elevator Machine, Strap/belt Tighteners |
High Light: | backstop one way sprag clutch bearing,single row one way sprag clutch bearing,open sealing sprag freewheel |

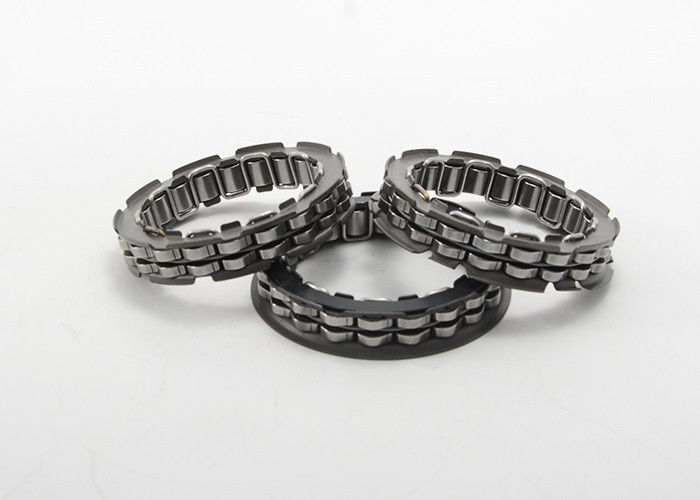

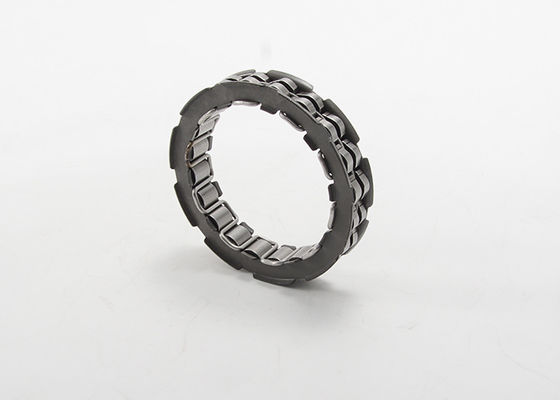

Sprag Freewheel One Way Clutch Bearing Backstop Motorcycle Starter Clutch
We supply various one way clutch bearing. This overrunning one way clutch widely for beach motorbike. one-way bearing is free to rotate in one direction, while in the other direction to lock a bearing. Also called a one-way clutch bearing, but depending on the industry, the role of different named. The metal in the one-way bearing, comprising a number of rollers, roller or ball, and the rolling seat (hole) shape rolling it in only one direction and in the other direction generates a large resistance (The so-called "one-way").
Main applications: textile machinery; printing machinery; automobile industry; appliances; detectors.
Sprag Freewheel One Way Clutch Bearing Backstop Motorcycle Starter Clutch Specifications:
Clutch Type
|
Dimensions |
Torque
|
Weight
|
|||||
Inner race |
Outer race |
Wmin |
A | B | C | |||
D +0.008/ -0.005
|
D0 ±0.013
|
W
|
Tkn |
|||||
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
FWD331608CRB
|
39.627
|
56.294
|
13.0
|
60 | 62 | 1.0 |
27
|
73
|
FWD331808CRB
|
45.665
|
62.332
|
13.3
|
65 | 68 | 1.0 |
35
|
82
|
FWD332008CRB
|
51.71
|
68.377
|
13.3
|
71 | 74 | 1.0 |
45
|
91
|
FWD332211CRB
|
57.76
|
74.427
|
16.3
|
76 | 79 | 1.0 |
78
|
134
|
Note:
1) Opposite overrunning direction should be ordered separately.
