Product Details:
|
| Name: | One Way Overrunning Sprag Clutch Bearing | Material: | High-Alloy Bearing Quality Steel |
|---|---|---|---|
| Brand: | Neutral | Surface Finish: | No Special Treatment |
| Size Measurement: | Inch Size | Application: | Motorcycle Starting Clutch |
| Lubrication: | Designed For Oil Lubrication | Sealing: | No, Open Type |
| High Light: | Neutral One Way Clutch Bearing,overrunning sprag clutch motorcycle starter,overrunning sprag clutch FWD |
||

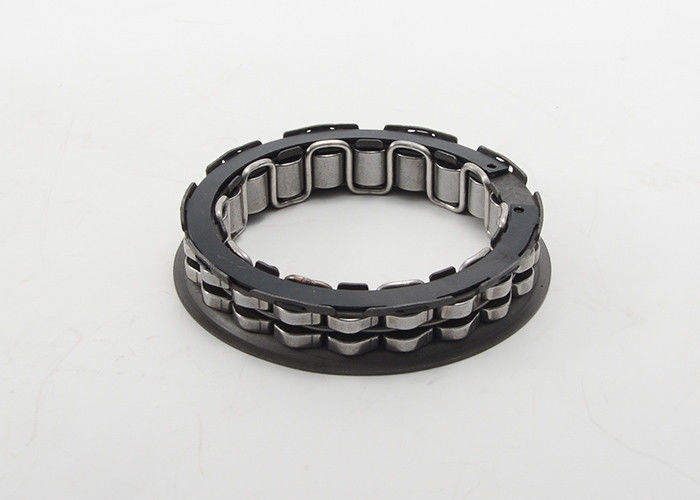

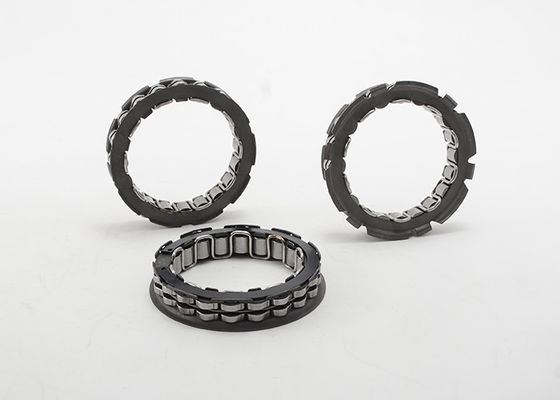

One Way Overrunning Sprag Clutch Bearing for Motorcycle Starter FWD331808CRS
We supply various one way clutch bearing. This overrunning one way clutch widely for beach motorbike.
One-way bearing is free to rotate in a direction, and locked in another direction of a bearing. One-way bearing is also called the overrunning clutch, just according to different industries, the effect is different. One-way bearing metal shell, contains a number of roller, needle or ball, and the rolling (den) shape so that it can only scroll in one direction.
Main purpose: textile machinery; printing machinery; automobile industry; appliances; detectors.
One Way Overrunning Sprag Clutch Bearing for Motorcycle Starter Specifications:
|
Clutch Type
|
Dimensions |
Torque
|
Weight
|
|||||
|
Inner race |
Outer race |
Wmin |
A | B | C | |||
|
D +0.008/ -0.005
|
D0 ±0.013
|
W
|
Tkn |
|||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [Kgf-m] | [g] | |
|
FWD331608CRS |
39.627
|
56.294
|
13.0
|
60 | 62 | 1.0 |
27
|
78
|
|
FWD331808CRS |
45.665
|
62.332
|
13.3
|
65 | 68 | 1.0 |
35
|
88
|
|
FWD332008CRS
|
51.710
|
68.377
|
13.3
|
71 | 74 | 1.0 |
45
|
98
|
|
FWD332211CRS
|
57.760
|
74.427
|
16.3
|
76 | 79 | 1.0 |
78
|
140
|
Note:
1) Opposite overrunning direction should be ordered separately.
