Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP
Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP

Large Image :  Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: KR19PP KR35PP KR80PP - Stud Type Cam Follower Track Rollers
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD1.1 per Piece
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-60 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP

Description
Name: Crowned Metric Stud Type Track Rollers Material: High-Alloy Bearing Quality Steel
Mounting Feature: Hex Hole Stud Type / Screwdriver Slot Stud Type Surface Finish: Black Oxide Finish / Neutral Bearing Steel Color
Inch - Metric: Metric Series Basic Construction Type: Stud Type Crowned Outside Diameter
Rolling Elements: Needle Roller With Cage Stud Profile: Standard Stud
Seal Type: Standard / Customized Other Features: Caged / Head-End Lubrication
High Light:

crowned Stud Type Cam Follower

,

Stud Type Cam Follower slotted head

,

sealed metric cam followers

Crowned Metric Stud Cam Follower Slotted Head Sealed Caged KR19PP KR35PP KR80PP



Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Easy to mount
  • Sealed for increased reliability, with relubrication feature
Cam followers are available in two types: one with a cage for high speed, and the other with a full complement for heavy loads. In the cam follower with seals, a special thrust washer is employed for the sliding surface inside the bearing to improve heat-seizure resistance.

They are available in several designs and variants:·
  • With or without a cage
  • With different stud designs:
     A concentric seat
    An eccentric collar
  • With several sealing solutions
  • With the outer ring running surface profile:
      Crowned as standard
      Cylindrical (flat)



Crowned Metric Stud Cam Follower Track Rrollers Slotted Head Specifications:



Shaft

Diameter

 Stud Type Cam Followers Code Boundary Dimensions

Nut

Tighten-ing Torque

MA

 Basic Load Rating

Limiting

speed
Without eccentric collar D d C ra B B1 G G1 M Mn C1 d2 d1 B3 e   Cr Cor
mm mm min mm Nm N
16 KR 16 16 6 11 0.15 28 16   8   45) 0.6 12 9 7 0.5 3 3800 3750 22000
KR 16 PP 16 6 11 0.15 28 16   8   45) 0.6 12 9 7 0.5 3 3800 3750 16000
19 KR 19 19 8 11 0.15 32 20   10   45) 0.6 14 11 9 0.5 8 4250 4600 20000
KR 19 PP 19 8 11 0.15 32 20   10   45) 0.6 14 11 9 0.5 8 4250 4600 14000
22 KR 22 22 10 12 0.3 36 23   12   4 0.6 17 13 10 0.5 15 5700 6500 16000
KR 22 PP 22 10 12 0.3 36 23   12   4 0.6 17 13 10 0.5 15 5700 6500 11000
26 KR 26 26 10 12 0.3 36 23   12   4 0.6 17 13 10 0.5 15 5700 6500 16000
KR 26 PP 26 10 12 0.3 36 23   12   4 0.6 17 13 10 0.5 15 5700 6500 11000
30 KR 30 30 12 14 0.6 40 25 6 13 3 6 0.6 23 15 11 0.5 22 8100 9700 11000
KR 30 PP 30 12 14 0.6 40 25 6 13 3 6 0.6 23 15 11 0.5 22 8100 9700 8300
32 KR 32 32 12 14 0.6 40 25 6 13 3 6 0.6 23 15 11 0.5 22 8100 9700 11000
KR 32 PP 32 12 14 0.6 40 25 6 13 3 6 0.6 23 15 11 0.5 22 8100 9700 8300
35 KR 35 35 16 18 0.6 52 32.5 8 17 3 6 0.8 27 20 14 1 58 12900 19000 7000
KR 35 PP 35 16 18 0.6 52 32.5 8 17 3 6 0.8 27 20 14 1 58 12900 19000 7000
40 KR 40 40 18 20 1 58 36.5 8 19 3 6 0.8 32 22 16 1 87 14200 20400 6000
KR 40 PP 40 18 20 1 58 36.5 8 19 3 6 0.8 32 22 16 1 87 14200 20400 6000
47 KR 47 47 20 24 1 66 40.5 9 21 4 8 0.8 37 24 18 1 120 19500 32000 4900
KR 47 PP 47 20 24 1 66 40.5 9 21 4 8 0.8 37 24 18 1 120 19500 32000 4900
52 KR 52 52 20 24 1 66 40.5 9 21 8 4 0.8 37 24 18 1 120 19500 32000 4900
KR 52 PP 52 20 24 1 66 40.5 9 21 8 4 0.8 37 24 18 1 120 19500 32000 4900
62 KR 62 62 24 29 1 80 49.5 11 25 8 4 0.8 44 28 22 1 220 30500 53000 3800
KR 62 PP 62 24 29 1 80 49.5 11 25 8 4 0.8 44 28 22 1 220 30500 53000 3800
72 KR 72 72 24 29 1.1 80 49.5 11 25 8 4 0.8 44 28 22 1 220 30500 53000 3800
KR 72 PP 72 24 29 1.1 80 49.5 11 25 8 4 0.8 44 28 22 1 220 30500 53000 3800
80 KR 80 80 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600
KR 80 PP 80 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600
85 KR 85 85 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600
KR 85 PP 85 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600
90 KR90 90 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600
KR 90 PP 90 30 35 1.1 100 63 15 32 8 4 1 53 35 29 1.5 450 45000 85000 2600

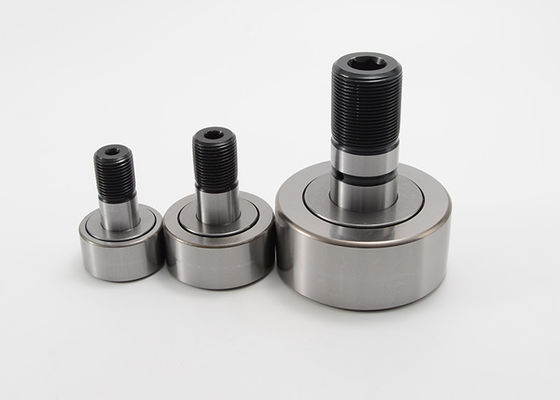

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 0

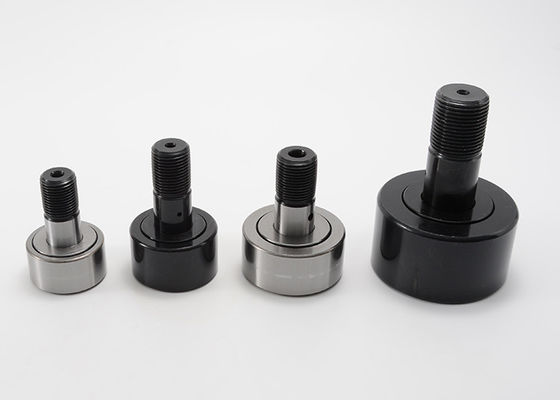

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 1

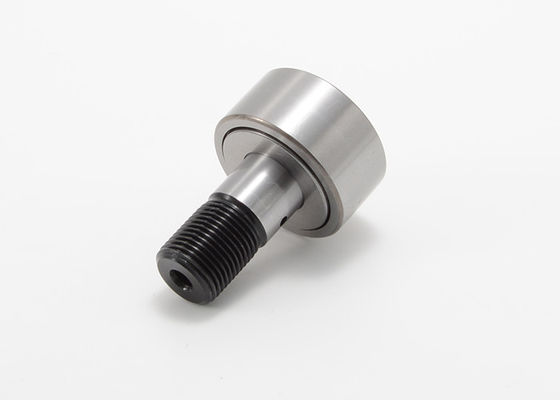

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 2

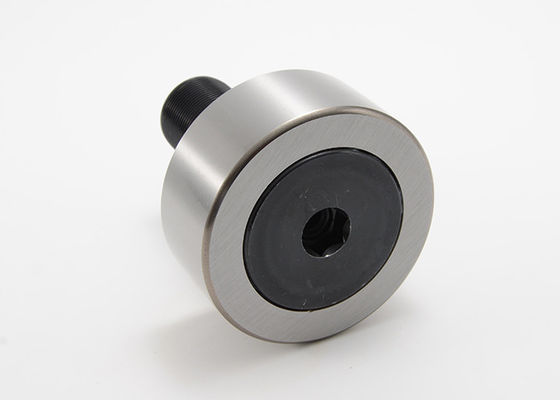

Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 3



Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 4



Crowned Stud Type Cam Follower Slotted Head Metric Sealed Caged KR19PP KR35PP KR80PP 5
