Product Details:
|
| Name: | Heavy Stud Cylindrical Inch Series Cam Follower Screwdriver Slot | Material: | Bearing Steel / Stainless Steel |
|---|---|---|---|
| Mounting Feature: | Screwdriver Slot | Size Range: | Inch Series( O.D. In Inches) |
| Basic Construction Type: | Cylindrical | Rolling Elements: | Full Complement Needle Rollers |
| Stud Type: | Heavy Stud | Seal Type: | Sealed/No Seals/ Customized |
| Lubrication Hole Location: | Stud Side | Surface Finish: | Black Oxide Finish |
| High Light: | Cylindrical Stud Type Cam Follower,Stud Type Cam Follower stainless steel,Screwdriver Slot cam shaft follower |
||

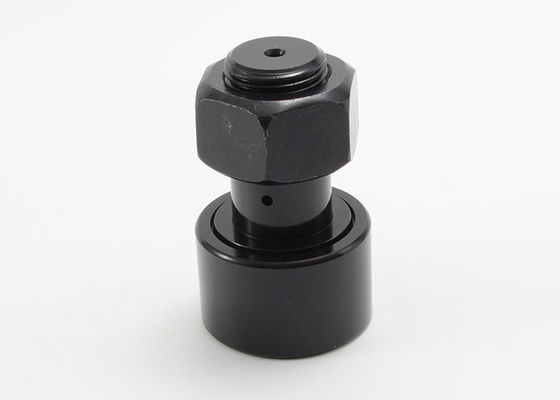

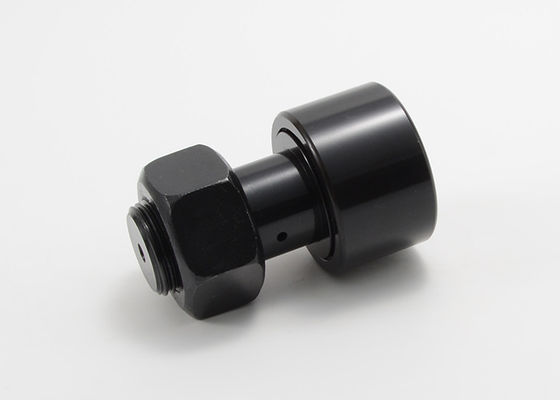

Heavy Stud Cylindrical Inch Cam Follower Screwdriver Slot CFH 1 1/8 CFH 1 1/2 CFH 2
Heavy Stud Cylindrical Inch Cam Follower Screwdriver Slot CFH 1 1/8 CFH 1 1/2 CFH 2
Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.
MOUETTE designs, manufactures and stocks a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance.
The MOUETTE makes:
· Standard and custom options including sizes, materials, and designs.
· Optimized raceways for improved contact stress distribution.
· High precision flexibility for different applications.
· Variable cages, shields, seals, and outer ring designs
· Available as mini, standard, eccentric, Hex hole, Screwdriver Slot, and with thrust disks.
· Simple installation using sockets or screwdrivers.
Heavy Stud Cylindrical Inch Cam Follower Mounting by Screwdriver Slot Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Stud Dia.(SD) | Stud Length (SL) | Min. Thread Lenght (TL) | Fine THR'DS. |
| CFH 1/2 | CFH 1/2 S | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 9/16 | CFH 9/16 S | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 5/8 | CFH 5/8 S | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 11/16 | CFH 11/16 S | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 3/4 | CFH 3/4 S | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 7/8 | CFH 7/8 S | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 1 | CFH 1 S | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/8 | CFH 1 1/8 S | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/4 | CFH 1 1/4 S | 1.250 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 3/8 | CFH 1 3/8 S | 1.375 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 1/2 | CFH 1 1/2 S | 1.500 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 5/8 | CFH 1 5/8 S | 1.625 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 3/4 | CFH 1 3/4 S | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 1 7/8 | CFH 1 7/8 S | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 2 | CFH 2 S | 2.000 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/4 | CFH 2 1/4 S | 2.250 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/2 | CFH 2 1/2 S | 2.500 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 2 3/4 | CFH 2 3/4 S | 2.750 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 3 | CFH 3 S | 3.000 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/4 | CFH 3 1/4 S | 3.250 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/2 | CFH 3 1/2 S | 3.500 | 2.000 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 |
| CFH 4 | CFH 4 S | 4.000 | 2.250 | 2.000 | 3 1/2 | 1 1/2 | 2-12 |
| - | CFH 5 S | 5.000 | 2.750 | 2.500 | 5 1/16 | 2 9/16 | 2 1/2-12 |
| - | CFH 6 S | 6.000 | 3.250 | 3.000 | 6 | 3 | 3-12 |
| - | CFH 7 S | 7.000 | 3.750 | 3.500 | 7 11/16 | 4 1/8 | 3 1/2-4 |
| Unsealed | Sealed | Oil Hole | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | ||
| Hole Center (HC) | Hole Dia. (HD) | Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | ||||
| CFH 1/2 | CFH 1/2 S | - | - | 1/8 | 35 | 1580 | 680 |
| CFH 9/16 | CFH 9/16 S | - | - | 1/8 | 35 | 1580 | 680 |
| CFH 5/8 | CFH 5/8 S | - | - | 1/8 | 90 | 2480 | 955 |
| CFH 11/16 | CFH 11/16 S | - | - | 1/8 | 90 | 2480 | 955 |
| CFH 3/4 | CFH 3/4 S | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 7/8 | CFH 7/8 S | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 1 | CFH 1 S | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/8 | CFH 1 1/8 S | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/4 | CFH 1 1/4 S | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 3/8 | CFH 1 3/8 S | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 1/2 | CFH 1 1/2 S | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 5/8 | CFH 1 5/8 S | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 3/4 | CFH 1 3/4 S | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 1 7/8 | CFH 1 7/8 S | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 2 | CFH 2 S | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/4 | CFH 2 1/4 S | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/2 | CFH 2 1/2 S | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 2 3/4 | CFH 2 3/4 S | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 3 | CFH 3 S | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/4 | CFH 3 1/4 S | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/2 | CFH 3 1/2 S | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
| CFH 4 | CFH 4 S | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
| - | CFH 5 S | 7/8 | 3/16 | 1/4” NPT | 5000 | 135900 | 46575 |
| - | CFH 6 S | 1 | 3/16 | 1/4” NPT | 5000 | 160900 | 60000 |
| - | CFH 7 S | 1 1/4 | 3/16 | 1/4” NPT | 5000 | 213860 | 75380 |
