Product Details:
|
| Name: | Inch Stud Type Cylindrical Cam Followers | Roller Material: | High-Alloy Bearing Quality Steel(Stainless Steel Is Customized) |
|---|---|---|---|
| Mounting Method: | Screwdriver Slot | Finish/Coating: | Black Oxide Finish |
| Series: | Inch Series | Roller Shape: | Cylindrical Outside Diameter |
| Rolling Elements: | Needle Roller - Full Complement | Stud Type: | CF - Standard Stud |
| Sealing: | Sealed / Unsealed / Customized | Lubrication Hole Location: | Stud Side |
| High Light: | steel stud track roller bearing,stud track roller bearing screwdriver slot,black oxide crowned cam follower |
||

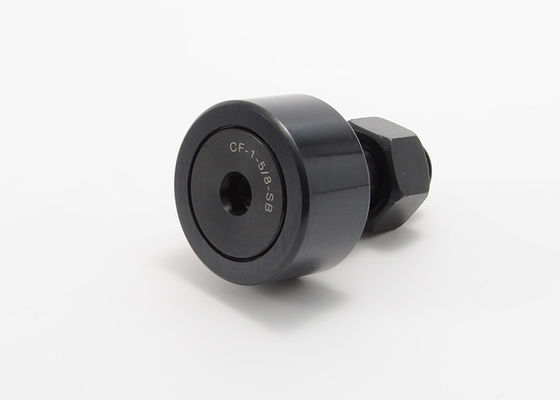

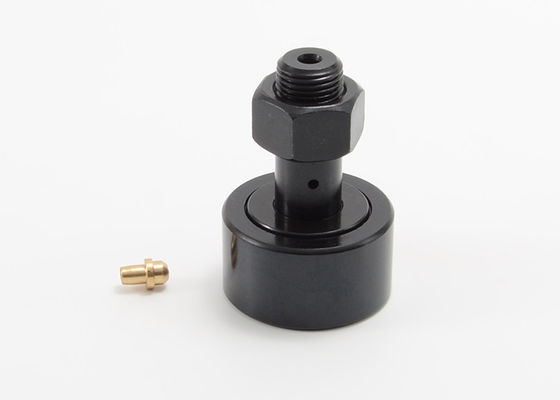

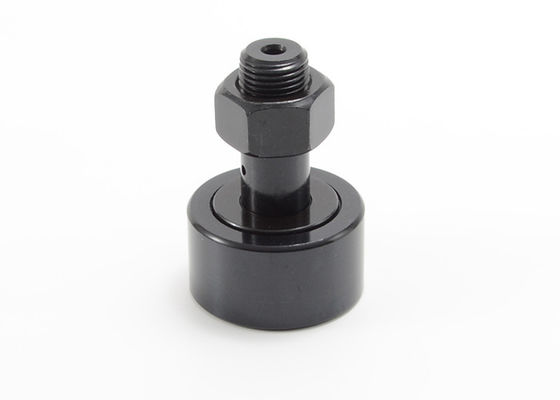

Cylindrical Inch Cam Follower Screwdriver Slot with Bearing Steel CF 1/2 CF-2 CF-1 3/8-S
Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.

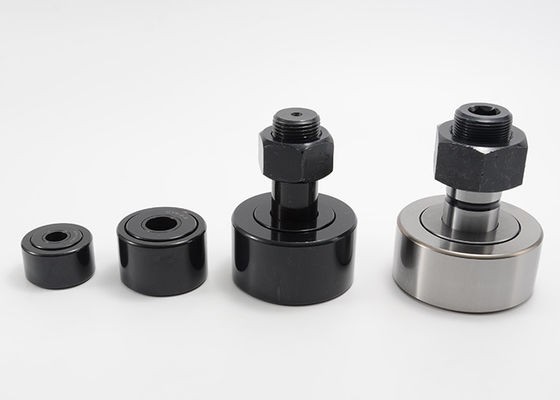

We offer a complete line of stud type cam followers for industrial applications. These bearings are available in steel, stainless steel, and with engineered plastic internal bushings. We specialize in engineered cam followers to fit specific applications.
Screwdriver Slot Stud Type Needle Roller Bearings are recommended where running loads and shock loads are moderate. Bearing capacity of the Stud Type Series is limited by the moderately sized stud. Manufactured from High-Alloy Bearing quality Steel. Most commonly used general purpose cam follower and available in sealed versions.
Inch Series Stud Type Cam Follower Screwdriver Slot Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Stud Dia.(SD) | Stud L'GTH. (SL) | Min. THR'D L'GTH (TL) | Fine THR'DS. |
| CF-1/2-N | CF-1/2-N-S | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 |
| CF-1/2 | CF-1/2-S | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CF-9/16 | CF-9/16-S | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CF-5/8-N | CF-5/8-N-S | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 |
| CF-5/8 | CF-5/8-S | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CF-11/16 | CF-11/16-S | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CF-3/4 | CF-3/4-S | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CF-7/8 | CF-7/8-S | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CF-1 | CF-1-S | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CF-1 1/8 | CF-1 1/8-S | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CF-1 1/4 | CF-1 1/4-S | 1.250 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CF-1 3/8 | CF-1 3/8-S | 1.375 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CF-1 1/2 | CF-1 1/2-S | 1.500 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CF-1 5/8 | CF-1 5/8-S | 1.625 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CF-1 3/4 | CF-1 3/4-S | 1.750 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CF-1 7/8 | CF-1 7/8-S | 1.875 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CF-2 | CF-2-S | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CF-2 1/4 | CF-2 1/4-S | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CF-2 1/2 | CF-2 1/2-S | 2.500 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CF-2 3/4 | CF-2 3/4-S | 2.750 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CF-3 | CF-3-S | 3.000 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CF-3 1/4 | CF-3 1/4-S | 3.250 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CF-3 1/2 | CF-3 1/2-S | 3.500 | 2.000 | 1.375 | 2 3/4 | 1 3/8 | 1 3/8-12 |
| CF-4 | CF-4-S | 4.000 | 2.250 | 1.500 | 3 1/2 | 1 1/2 | 1 1/2-12 |
| CF-5-S | 5.000 | 2.750 | 2.000 | 5 1/16 | 2 9/16 | 2-12 | |
| CF-6-S | 6.000 | 3.250 | 2.500 | 6 | 3 | 2 1/2-12 | |
| CF-7-S | 7.000 | 3.750 | 3.000 | 7 11/16 | 4 1/8 | 3-12 | |
| CF-8-S | 8.000 | 4.250 | 3.250 | 8 1/2 | 4 1/4 | 3 1/4-4 | |
| CF-9-S | 9.000 | 4.750 | 3.750 | 9 1/2 | 4 3/4 | 3 1/2-4 | |
| CF-10-S | 10.000 | 5.250 | 4.250 | 10 | 4 3/4 | 3 1/2-4 |
| Unsealed | Sealed | Oil Hole | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | ||
| Hole Center (HC) | Hole Dia. (HD) | Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | ||||
| CF-1/2-N | CF-1/2-N-S | - | - | 1/8 | 15 | 720 | 620 |
| CF-1/2 | CF-1/2-S | - | - | 1/8 | 15 | 790 | 680 |
| CF-9/16 | CF-9/16-S | - | - | 1/8 | 15 | 790 | 680 |
| CF-5/8-N | CF-5/8-N-S | - | - | 1/8 | 35 | 1085 | 930 |
| CF-5/8 | CF-5/8-S | - | - | 1/8 | 35 | 1215 | 955 |
| CF-11/16 | CF-11/16-S | - | - | 1/8 | 35 | 1215 | 955 |
| CF-3/4 | CF-3/4-S | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CF-7/8 | CF-7/8-S | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CF-1 | CF-1-S | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/8 | CF-1 1/8-S | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CF-1 1/4 | CF-1 1/4-S | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CF-1 3/8 | CF-1 3/8-S | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CF-1 1/2 | CF-1 1/2-S | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CF-1 5/8 | CF-1 5/8-S | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CF-1 3/4 | CF-1 3/4-S | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CF-1 7/8 | CF-1 7/8-S | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CF-2 | CF-2-S | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/4 | CF-2 1/4-S | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CF-2 1/2 | CF-2 1/2-S | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CF-2 3/4 | CF-2 3/4-S | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CF-3 | CF-3-S | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/4 | CF-3 1/4-S | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CF-3 1/2 | CF-3 1/2-S | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
| CF-4 | CF-4-S | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
| CF-5-S | 7/8 | 3/16 | 1/4 | 5000 | 67950 | 46575 | |
| CF-6-S | 1 | 3/16 | 1/4 | 5000 | 80450 | 60000 | |
| CF-7-S | 1 1/4 | 3/16 | 1/4 | 5000 | 106930 | 75380 | |
| CF-8-S | - | - | 1/4 | 5000 | 144100 | 92200 | |
| CF-9-S | - | - | 1/4 | 5000 | 183430 | 113260 | |
| CF-10-S | - | - | 1/4 | 5000 | 215565 | 131545 | |
