Product Details:
|
| Name: | Brass Cage Single Row Cylindrical Roller Bearings | Axial Displacement Capability: | In Both Directions |
|---|---|---|---|
| Bearing Part: | Complete Bearing | Bore Type: | Cylindrical |
| Cage: | Machined Brass | Number Of Flanges, Inner Ring: | 0 |
| Number Of Flanges, Outer Ring: | 2 | Number Of Rows: | 1 |
| Radial Internal Clearance: | CN | Relubrication Feature: | Without |
| High Light: | brass cage Precision Roller Bearing,Precision Roller Bearing Cylindrical,cylindrical bearing rollers single row |
||

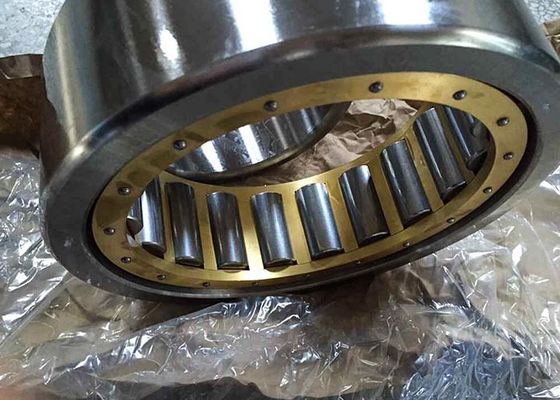

Brass Cage Cylindrical Roller Bearings Single Row Removable Inner Ring NU1018M1

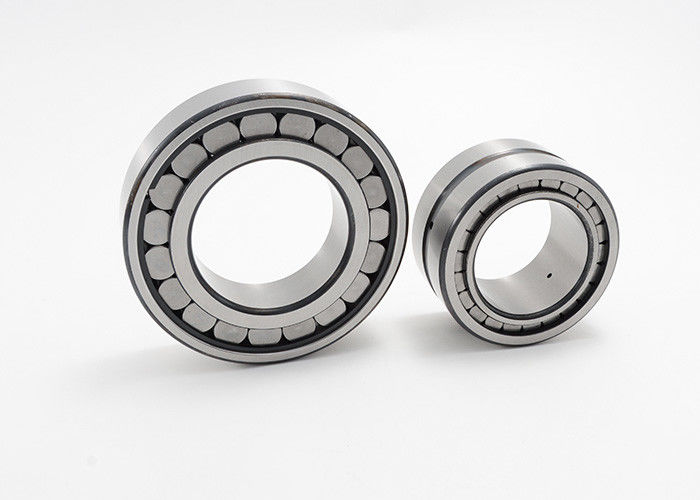

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Sealing:
The cylindrical roller bearings are supplied in an open design.
Operating temperature:
Full complement cylindrical roller bearings are suitable for operating temperatures from –30 °C to +120 °C.
MOUETTE offers more interchange tables cylindrical roller bearing.
If there is any need, feel free to contact.
Brass Cage Cylindrical Roller Bearings Single Row Removable Inner Ring NU Type Specifications:
| Bearing Code | Dimensions | Mass | Basic Load Ratings | Limiting Speed | ||||||
| d | D | B | rsmin | D1 | Fw, Ew | dynamic | static | |||
| Cr | Cor | |||||||||
| mm | kg | KN | rpm | |||||||
| NU1005 | 25 | 47 | 12 | 0.6 | 38.8 | 30.5 | 0.083 | 13.4 | 12 | 28000 |
| NU1006 | 30 | 55 | 13 | 1 | 45.6 | 36.5 | 0.129 | 16.6 | 16 | 2400 |
| NU1007M1 | 35 | 62 | 14 | 1 | 54.5 | 42 | 0.181 | 24.5 | 26 | 20000 |
| NU1008M1 | 40 | 68 | 15 | 1 | 57.6 | 47 | 0.23 | 29 | 32 | 19000 |
| NU1009M1 | 45 | 75 | 16 | 1 | 65.3 | 52.5 | 0.28 | 34.5 | 39 | 16000 |
| NU1010M1 | 50 | 90 | 20 | 1.1 | 70 | 57.5 | 0.268 | 36 | 41.5 | 15000 |
| NU1011M1 | 55 | 90 | 18 | 1.1 | 79 | 64.5 | 0.45 | 41.5 | 50 | 14000 |
| NU1012M1 | 60 | 95 | 18 | 1.1 | 81.6 | 69.2 | 0.478 | 44 | 55 | 13000 |
| NU1013M1 | 65 | 100 | 18 | 1.1 | 88.5 | 74 | 0.512 | 45 | 58.5 | 12000 |
| NU1014M1 | 70 | 110 | 20 | 1.1 | 97.5 | 79.5 | 0.706 | 64 | 81.5 | 11000 |
| NU1015M1 | 75 | 115 | 20 | 1.1 | 101 | 85 | 0.75 | 65.5 | 85 | 10000 |
| NU1016M1 | 80 | 125 | 22 | 1.1 | 109 | 91.5 | 0.99 | 76.5 | 98 | 9500 |
| NU1017M1 | 85 | 130 | 22 | 1.1 | 114 | 96.5 | 1.05 | 78 | 104 | 9000 |
| NU1018M1 | 90 | 140 | 24 | 1.5 | 122 | 103 | 1.31 | 93 | 125 | 8500 |
| NU1019M1 | 95 | 145 | 24 | 1.5 | 127 | 108 | 1.42 | 96.5 | 129 | 8000 |
| NU1020M1 | 100 | 150 | 24 | 1.5 | 132 | 113 | 1.48 | 98 | 134 | 7500 |
| NU1021M1 | 105 | 160 | 26 | 2 | 140 | 119.5 | 1.84 | 112 | 153 | 7000 |
| NU1022M1 | 110 | 170 | 28 | 2 | 149 | 125 | 2.31 | 140 | 190 | 7000 |
| NU1024M1 | 120 | 180 | 28 | 2 | 159 | 135 | 2.47 | 150 | 208 | 6300 |
| NU1026M1 | 130 | 200 | 33 | 2 | 175 | 148 | 3.8 | 180 | 250 | 5600 |
| NU1028M1 | 140 | 210 | 33 | 2 | 185 | 158 | 4.09 | 183 | 265 | 5300 |
| NU1030M1 | 150 | 225 | 35 | 2.1 | 198 | 169.5 | 4.93 | 208 | 310 | 5000 |
| NU1032M1 | 160 | 240 | 38 | 2.1 | 211 | 180 | 5.92 | 245 | 355 | 4800 |
| NU1034M1 | 170 | 260 | 42 | 2.1 | 227 | 193 | 7.96 | 300 | 430 | 4500 |
| NU1036M1 | 180 | 280 | 46 | 2.1 | 244 | 205 | 10.5 | 360 | 520 | 4500 |
| NU1038M1 | 190 | 290 | 46 | 2.1 | 254 | 215 | 10.9 | 365 | 550 | 4300 |
| NU1040M1 | 200 | 310 | 51 | 2.1 | 269 | 229 | 14.1 | 400 | 600 | 3800 |
| NU1044M1 | 220 | 340 | 56 | 3 | 297 | 250 | 20.5 | 510 | 765 | 3200 |
| NU1048M1 | 240 | 360 | 56 | 3 | 317 | 270 | 20.4 | 540 | 850 | 3000 |
| NU1052M1 | 260 | 400 | 65 | 4 | 349 | 296 | 29.9 | 655 | 1020 | 2800 |
| NU1056M1 | 280 | 240 | 65 | 4 | 369 | 316 | 31.4 | 680 | 1100 | 2800 |
| NU1060M1 | 300 | 460 | 74 | 4 | 402 | 340 | 46.5 | 900 | 1430 | 2400 |
| NU1064M1 | 320 | 480 | 74 | 4 | 422 | 360 | 48.5 | 915 | 1500 | 2400 |
| NU1068M1 | 340 | 520 | 82 | 5 | 455 | 385 | 63 | 1120 | 1830 | 2200 |
| NU1072M1 | 360 | 540 | 82 | 5 | 475 | 405 | 66 | 1140 | 1900 | 2200 |
| NU1076M1 | 380 | 560 | 82 | 5 | 495 | 425 | 71 | 1180 | 2000 | 2000 |
| NU1080M1 | 400 | 600 | 90 | 5 | 527 | 450 | 89.8 | 1370 | 2320 | 1900 |
| NU1084M1 | 420 | 620 | 90 | 5 | 547 | 470 | 92.9 | 1400 | 2450 | 1800 |
| NU1088M1 | 440 | 650 | 94 | 6 | 574 | 493 | 104 | 1560 | 2750 | 1600 |
| NU1092M1 | 460 | 680 | 100 | 6 | 600 | 516 | 115 | 1660 | 3000 | 1600 |
| NU1096M1 | 480 | 700 | 100 | 6 | 620 | 536 | 134 | 1700 | 3100 | 1500 |
| NU10/500M1 | 500 | 720 | 100 | 6 | 640 | 556 | 133 | 1760 | 3200 | 1500 |
| NU12/500M1 | 500 | 920 | 185 | 6 | 728 | 576 | 585 | 5280 | 8500 | 950 |
| NU10/530M1 | 530 | 780 | 112 | 6 | 692 | 593 | 190 | 2290 | 4050 | 1000 |
| NU20/530M1 | 530 | 780 | 145 | 6 | 704 | 591 | 255 | 3740 | 7350 | 1000 |
| NU10/560M1 | 560 | 820 | 115 | 6 | 726 | 625 | 210 | 2330 | 4250 | 1000 |
| NU20/560M1 | 560 | 820 | 150 | 6 | 726 | 625 | 290 | 3800 | 7650 | 1000 |
| NU12/560M1 | 560 | 1030 | 206 | 6 | 741 | 626 | 805 | 7210 | 11200 | 800 |
| NU10/600M1 | 600 | 870 | 118 | 6 | 779 | 667 | 245 | 2750 | 5100 | 900 |
| NU20/600M1 | 600 | 870 | 155 | 6 | 793 | 661 | 325 | 4180 | 8000 | 900 |
| NU12/600M1 | 600 | 1090 | 155 | 9.5 | 935 | 749 | 710 | 5610 | 9800 | 850 |
| NU10/630M1 | 630 | 920 | 128 | 7.5 | 837 | 702 | 285 | 3410 | 6200 | 1000 |
| NU20/630M1 | 630 | 920 | 170 | 7.5 | 832 | 699 | 400 | 4730 | 9500 | 850 |
| NU12/630M1 | 630 | 1150 | 230 | 12 | 1005 | 751 | 1100 | 8580 | 13700 | 700 |
| NU10/670M1 | 670 | 980 | 136 | 7.5 | 891 | 747 | 350 | 3740 | 6800 | 800 |
| NU20/670M1 | 670 | 980 | 180 | 7.5 | 890 | 746 | 480 | 5390 | 11000 | 800 |
| NU10/710M1 | 710 | 1030 | 140 | 7.5 | 939 | 778 | 415 | 4680 | 8500 | 7500 |
