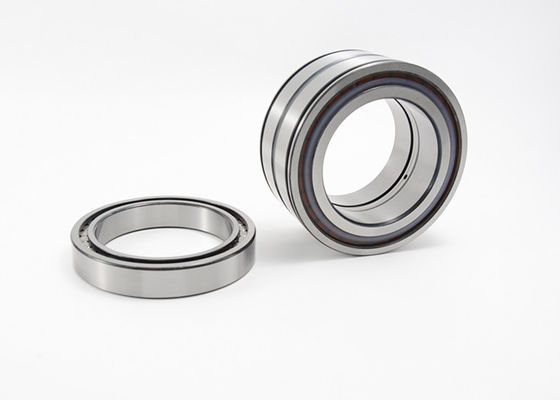

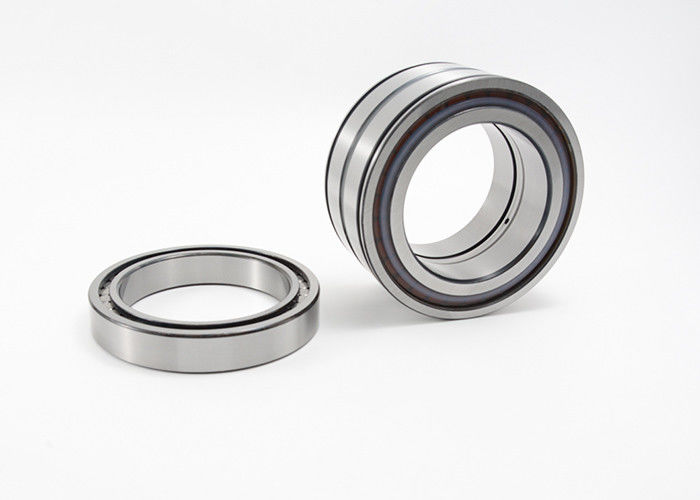

Caged Precision Roller Bearing Straight Bore Single Row Cylindrical Roller Bearing NUP2212E

Cylindrical Roller Bearing Single Row Caged Straight Bore NUP2212E

NUP design is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces.

The outer ring has two rigid ribs, while the inner ring has one rigid and one loose rib. As a result, this bearing can take radial forces as well as axial forces in both directions. NUP bearings are used as locating bearings. Locating bearings locate a shaft axially in both directions.

As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.

Main Features:

• Cylindrical roller bearing with a removable inner ring suitable for high radial loads
• If you need C3 radial clearance, it is available. C3 is larger than normal allowing for thermal expansion
• Single row roller bearing for high radial loads with low friction
• Removable inner ring in open bearing allows for lubrication in place
• Metric unit measurements for industry consistency

Caged Single Row Cylindrical Roller Bearings NUP Type Specifications:
