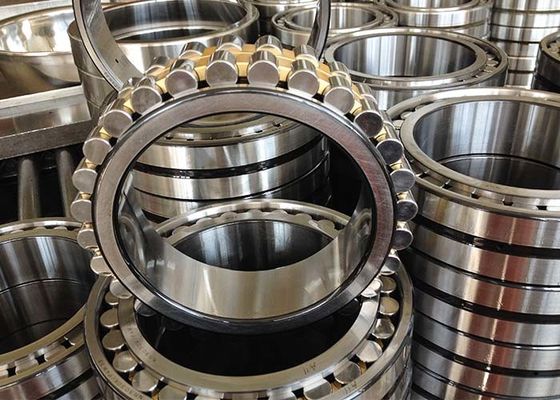

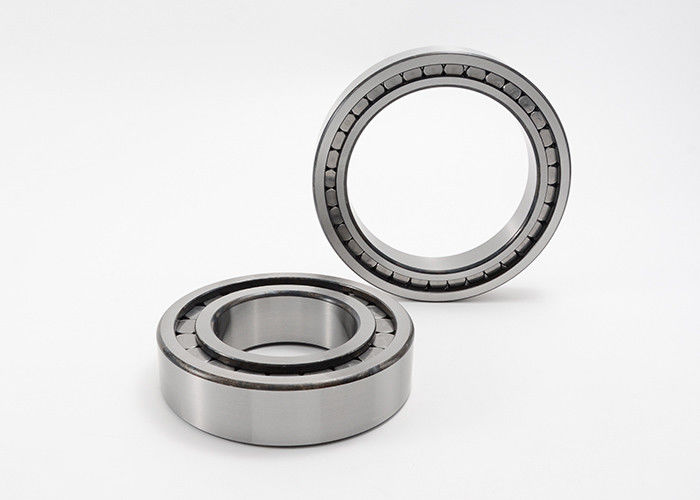

Cylindrical Locating Bearing Straight Bore Single Row Roller Bearing NUP209E

Locating Bearing Cylindrical Roller Bearings Single Row Straight Bore NUP209E

Single row Cylindrical roller bearing, with cage, locating bearing, 2 ribs on outer ring, 1 rib on inner ring, rib washer internal, type NUP design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

• High radial load carrying capacity
• Low friction
• Long service life
• Locate the shaft axially in both directions
• Separable design

NUP design cylindrical roller bearing with a removable inner ring is suitable for applications that support high radial loads. This roller bearing has a CN (normal) radial clearance for applications and operating conditions with normal shaft and housing tolerances where thermal expansion is not a factor. This is a single row roller bearing that supports high radial loads with low friction. A removable inner ring in the open bearing allows application of lubrication. This roller bearing is measured in metric units for industry cross-matching and parts consistency.

Cylindrical roller bearings are used in applications where high radial loads are present such as in conveyer belts, traction motors, railway car axle boxes, and oilfield mud pumps, among others.

Locating Bearing Cylindrical Roller Bearings Single Row Straight Bore NUP Design Specifications:
