Metric Steel Caged Needle Roller Bearing Drawn Cup Roller Bearing HK0609

Caged Drawn Cup Needle Roller Bearings Metric Series Steel Cage

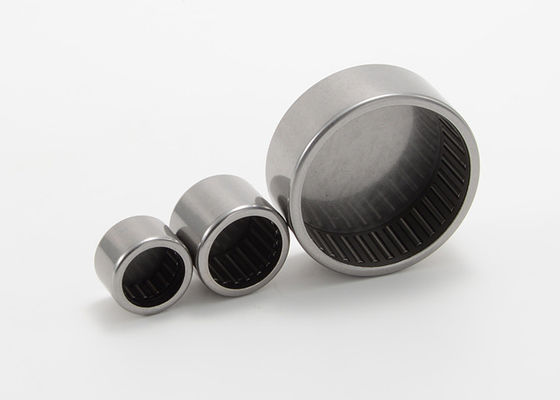

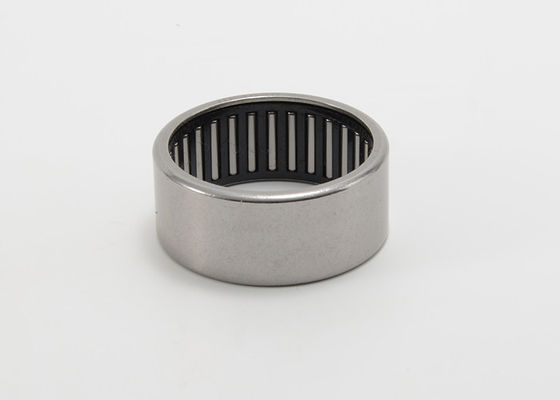

Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.

The drawn cup of hardened steel and the needle roller and cage assembly of these bearings form a non­-separable unit.

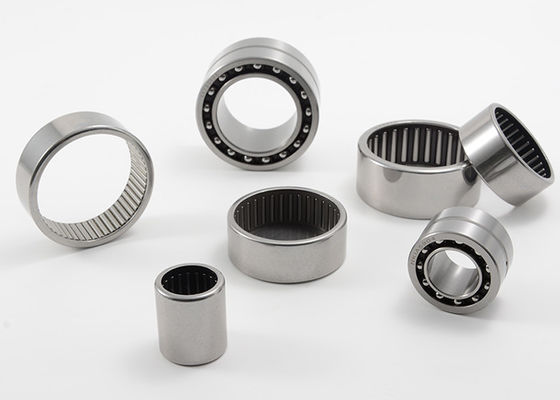

MOUETTE supplies a wide assortment of drawn cup needle roller bearings. This includes:

• Bearings with open ends
• Bearings with a closed end
• Full complement bearings with open ends

Drawn cup needle roller bearings:

• are supplied without an inner ring
• are generally designed with one needle roller and cage assembly – except wide sizes, which incorpor­ate two needle roller and cage assemblies immediately adjacent to each other, with a lubrication hole in the outer ring

Basic design bearings:

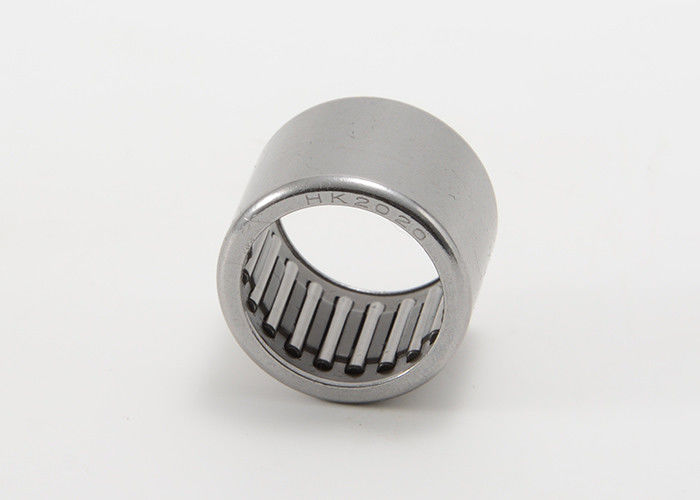

• Drawn cup needle roller bearings with open ends (series designation HK series)

             ·  are available open (without seals) or sealed on one or both sides (Sealing solutions)

• Drawn cup needle roller bearings with a closed end (series designation BK series)

            · are available open or sealed (Sealing solutions)

            · are suitable for bearing arrangements where they are situated at the end of a shaft

            · accommodate small axial guidance forces, because of the profiled design of their closed end

• Full complement bearings with open ends (series designation HN Series)

            · are suitable for very heavy radial loads at moderate speeds

            · are available with open ends and without seals only

Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.

MOUETTE offers more interchange tables, such as skf needle bearings, ina needle bearings, ntn needle bearings, iko needle bearings, torrington needle bearings, koyo needle bearings, timken needle bearings, rbc needle bearings, and mcgill needle bearings.

Caged Drawn Cup Needle Roller Bearings Metric Series Steel Cage Specifications:
