Product Details:
|
| Name: | Full Complement Drawn Cup Needle Roller Bearings | Bearing Material: | Steel ST14 |
|---|---|---|---|
| Basic Design: | Full Complement Bearings With Open Ends | Sealing Solutions: | Open |
| Inch - Metric: | Metric | Rolling Elements: | Full Complement Needle Rollers |
| Size Range: | Fw Size From 3mm To 60mm | Cage: | No Cage |
| Lubrication: | Supplied With A Special Grease To Secure The Rollers | Customized: | Standard Or Customized Are Available |
| High Light: | ST14 drawn cup needle bearing,60mm drawn cup needle bearing,Full Complement Needle Bearings F-1212 |
||

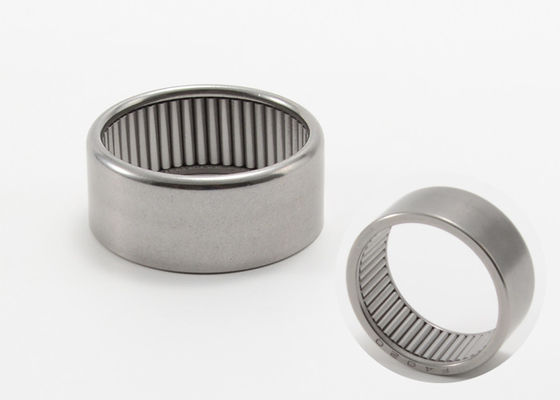

Drawn Cup Needle Roller Bearings Full Complement Needle Bearings F-1212
Drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing. That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing axially.
The drawn cup of hardened steel and the needle roller and cage assembly of these bearings form a non-separable unit.
MOUETTE supplies a wide assortment of drawn cup needle roller bearings. This includes:
Full complement bearings with open ends:
· are suitable for very heavy radial loads at moderate speeds
· are available with open ends and without seals only
Full complement drawn cup needle roller bearings are supplied with a special grease to secure the rollers during transport. However, we recommend re-lubricating after mounting.
Drawn Cup Needle Roller Bearings Full Complement Needle Bearings F Series Specifications:
|
Shaft Diameter |
Bearing Designation |
Mass Approx |
Boundary Dimensions | Basic Load Rating | Limiting Speed | ||||
| Current Code | Original Code | Fw | D | C | Dynamic | Static | Oil | ||
| mm | g | mm | N | rpm | |||||
| 6 | F-0608 | 30941/6 | 2.5 | 6 | 10 | 8 | 3080 | 5800 | 12000 |
| 6.35 | F6.35X11.11X11.13 | B-47 | 3.2 | 6.35 | 11.11 | 11.13 | 3500 | 6050 | 12000 |
| MF6.35X11.11X11.13 | M-471 | 4.1 | 6.35 | 11.11 | 11.13 | 3500 | 6050 | 12000 | |
| 8 | F-0810 | 50941/8 | 3.7 | 8 | 12 | 10 | 4050 | 7150 | 13000 |
| FH-0810 | 941/8 | 7 | 8 | 14 | 10 | 5200 | 7150 | 7400 | |
| FH-0812 | 942/8 | 9 | 8 | 14 | 12 | 4550 | 7150 | 7400 | |
| 9 | F-0910 | 50941/9 | 4 | 9 | 13 | 10 | 4900 | 8050 | 12000 |
| F-091510 | 941/9 | 6 | 9 | 15 | 10 | 8000 | 11500 | 7100 | |
| F-091513 | 942/9 | 8 | 9 | 15 | 13 | 8560 | 12800 | 7100 | |
| 9.52 | F-9.52X14.29X12.7 | B-68 | 7.5 | 9.52 | 14.29 | 12.70 | 9000 | 13300 | 7100 |
| 10 | F-1010 | 50941/10 | 4.2 | 10 | 14 | 10 | 5700 | 9350 | 11000 |
| FH-1010 | 941/10 | 6.5 | 10 | 16 | 10 | 6350 | 10800 | 11000 | |
| F-101615 | 942/10 | 12 | 10 | 16 | 15 | 6890 | 11500 | 7100 | |
| F-101617 | 943/10 | 10 | 16 | 17 | 6500 | 11000 | 7000 | ||
| 12 | F-1212 | 60941/12 | 6 | 12 | 16 | 12 | 6380 | 10900 | 7100 |
| F-121712 | 941/12 | 8 | 12 | 17 | 12 | 8400 | 11900 | 7100 | |
| F-121715 | 942/12 | 10.5 | 12 | 17 | 15 | 9000 | 12500 | 7100 | |
| F-121718 | 943/12 | 13 | 12 | 17 | 18 | 9800 | 13500 | 7100 | |
| 15 | F-15X20X12 | 941/15 | 10 | 15 | 20 | 12 | 8400 | 11900 | 7100 |
| F-15X20X16 | 942/15 | 13.6 | 15 | 20 | 16 | 9500 | 12800 | 7100 | |
| F-15X20X20 | 943/15 | 17.2 | 15 | 20 | 20 | 10500 | 16000 | 7100 | |
| F-15X20X20 | Y152020 | 20 | 15 | 20 | 20 | 10500 | 16000 | 7100 | |
| F-1512 | 30941/15 | 12 | 15 | 21 | 12 | 9700 | 15900 | 8100 | |
| 16 | F-1616 | 50941/16 | 17 | 16 | 22 | 16 | 14100 | 25900 | 7700 |
| 17 | F-1712 | 30941/17 | 13 | 17 | 23 | 12 | 10600 | 21600 | 7300 |
| F-1714 | 941/17 | 15 | 17 | 23 | 14 | 12500 | 22500 | 7300 | |
| F-1718 | 942/17 | 21 | 17 | 23 | 18 | 13800 | 24800 | 7300 | |
| F-1722 | 943/17 | 17 | 23 | 22 | 13500 | 24000 | 7100 | ||
| 18 | F-1816 | 50941/18 | 18 | 18 | 24 | 16 | 15000 | 29100 | 6900 |
| 20 | F-2014 | 941/20 | 17 | 20 | 26 | 14 | 15800 | 40500 | 6900 |
| F-2020 | 942/20 | 26 | 20 | 26 | 20 | 18800 | 42500 | 6900 | |
| F-20X26X25 | 943/20 | 33 | 20 | 26 | 25 | 20500 | 35500 | 6300 | |
| 22 | F-2212 | 30941/22 | 14 | 22 | 28 | 12 | 9000 | 13300 | 5800 |
| F-2216 | 50941/22 | 22 | 22 | 28 | 16 | 17000 | 33000 | 5800 | |
| F-2220 | 70941/22 | 29 | 22 | 28 | 20 | 20300 | 47200 | 5800 | |
| 25 | F-2516 | 941/25 | 28 | 25 | 32 | 16 | 18700 | 37900 | 5100 |
| F-2522 | 942/25 | 40 | 25 | 32 | 22 | 11000 | 16500 | 5100 | |
| F-25X32X25 | 943/25 | 43 | 25 | 32 | 25 | 11500 | 18500 | 5100 | |
| F-25X33X08 | Y253308 | 16.7 | 25 | 33 | 8 | 12200 | 16800 | 4300 | |
| 25 | F-2512 | 20941/25 | 17 | 25 | 32 | 12 | 5250 | 6000 | 5100 |
| F-2520 | 60941/25 | 43 | 25 | 32 | 20 | 22800 | 46000 | 5100 | |
| 28 | F-2820 | 60941/28 | 118 | 28 | 35 | 20 | 25700 | 58300 | 4600 |
| F-2812 | 20941/28 | 31.7 | 28 | 35 | 12 | 16500 | 38600 | 4600 | |
| F-2816 | 40941/28 | 36 | 28 | 35 | 16 | 20200 | 42900 | 4600 | |
| 30 | F-3020 | 60941/30 | 42 | 30 | 37 | 20 | 26800 | 62500 | 4300 |
| MF-3020 | 65941/30 | 48 | 30 | 37 | 20 | 26800 | 62500 | 4300 | |
| F-30X38X16 | 941/30 | 37.5 | 30 | 38 | 16 | 25500 | 57500 | 4600 | |
| F-30X38X24 | 942/30 | 37.5 | 30 | 38 | 24 | 28800 | 64500 | 4300 | |
| F-30X38X32 | 943/30 | 81.5 | 30 | 38 | 32 | 34500 | 78900 | 4300 | |
| F-3014 | 30941/30 | 37 | 30 | 37 | 14 | 19600 | 41200 | 4600 | |
| F-3016 | 4094/30 | 40 | 30 | 37 | 16 | 21700 | 46500 | 4300 | |
| F-3026 | 58.5 | 30 | 37 | 26 | 35000 | 74000 | 4300 | ||
| 32 | F-32X39X32 | 943/32 | 32 | 39 | 32 | 35000 | 74000 | 4300 | |
| F-3216 | 40941/32 | 35 | 32 | 39 | 16 | 25800 | 61500 | 4300 | |
| 35 | F-3520 | 60941/35 | 49 | 35 | 42 | 20 | 24000 | 69100 | 3700 |
| F-35X43X16 | 941/35 | 41 | 35 | 43 | 16 | 23500 | 68000 | 3700 | |
| F-35X43X25 | 942/35 | 72 | 35 | 43 | 25 | 38700 | 86200 | 3200 | |
| F-35X43X32 | 943/35 | 90 | 35 | 43 | 32 | 40500 | 98700 | 3200 | |
| F-3512 | 20941/35 | 36 | 35 | 42 | 12 | 19000 | 59000 | 3700 | |

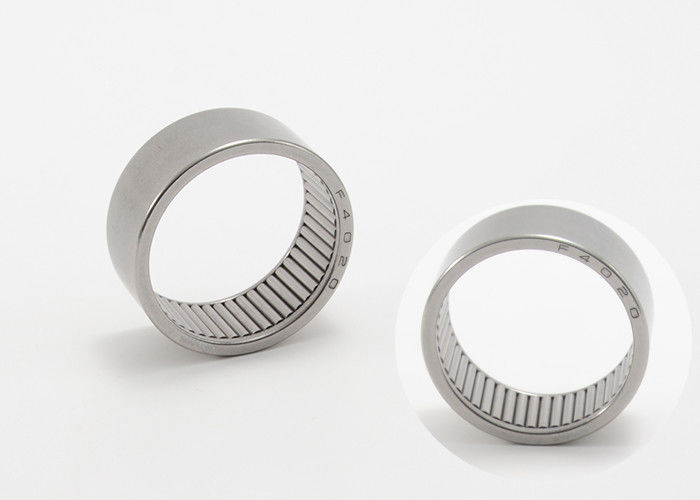

| 40 | F-4020 | 60941/40 | 56 | 40 | 47 | 20 | 30300 | 52600 | 3300 |
| FH-4032 | 942/40 | 88 | 40 | 50 | 32 | 42500 | 108000 | 2600 | |
| MFH-4032 | 86942/40 | 95 | 40 | 50 | 32 | 42500 | 108000 | 2600 | |
| FH-40X50X38 | 943/40 | 105 | 40 | 50 | 38 | 44800 | 118500 | 2600 | |
| F-4016 | 40941/40 | 51 | 40 | 47 | 16 | 26500 | 62000 | 3300 | |
| 45 | F-4520 | 62 | 45 | 52 | 20 | 30400 | 30400 | 2900 | |
| FH45X55X38 | 943/45 | 140 | 45 | 55 | 38 | 45800 | 45800 | 2900 | |
| F-4516 | 40941/45 | 49 | 45 | 52 | 16 | 23800 | 65900 | 2900 | |
| 50 | F-5020 | 50941/50 | 78 | 50 | 58 | 20 | 35800 | 98000 | 2600 |
| FH-50X60X38 | 943/50 | 145 | 50 | 60 | 38 | 50500 | 145800 | 2600 | |
| 55 | F-5520 | 50941/55 | 97 | 55 | 63 | 20 | 39500 | 102000 | 2600 |
| 60 | F-60X68X38 | 943/60 | 185 | 60 | 68 | 38 | 50200 | 145000 | 2600 |
