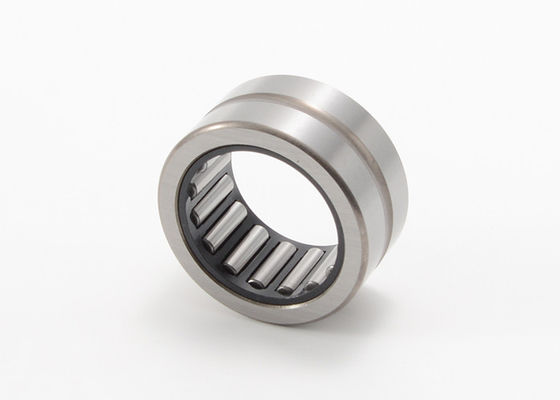

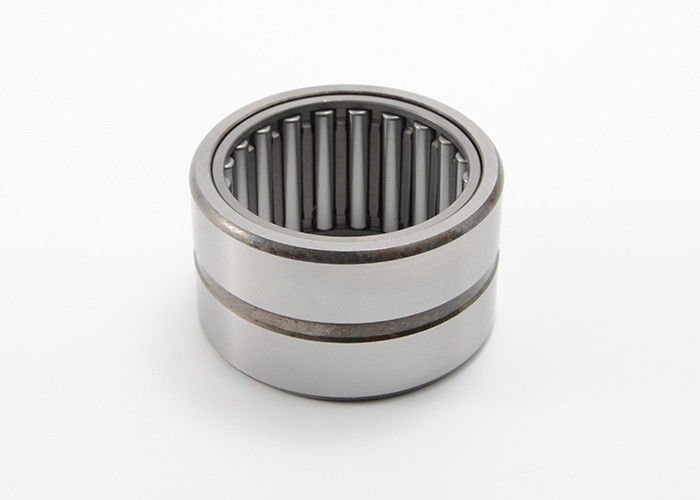

Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring

Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring
Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring

Large Image :  Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: NK38/20, NK40/20, NK40/30, NK42/20, NK45/20, NK55/25, NKS40, NKS45, NKS50, RNA4907, RNA4908, RNA4909, RNA5907, RNA5908, RNA5909, RNA6907, RNA6908, RNA6909
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD0.4 per Piece
Packaging Details: Plastic film, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring

Description
Name: Solid Needle Roller Bearing Without Inner Ring Needle Bearing Type: Machined Solid Needle Roller Bearing Bearing Without Inner Ring
Cage Material: Sheet Steel Bearing Material: Bearing Steel
Number Of Flanges, Outer Ring: 2 Number Of Rows: Single Row / Double Row Available
Outer Ring Type: Machined (solid) Relubrication Feature: Lubrication Groove & Hole
Sealing: Without Tolerance Class: Normal
High Light:

machined radial needle bearing

,

radial needle bearing RNA4907

,

RNA4907 Without Inner Ring

Solid Needle Roller Bearing With Machined Rings Without Inner Ring RNA4907



The solid collar needle roller bearing has compact structure, small radial size and large load carrying capacity. It is suitable for the parts of which the radial overall size is limited. It is also wide applied to the situation where the shaft or housing has the swinging motion. In general, the needle roller bearing only withstands the radial load, not the axial load. When the shaft has axial load, it can be used in combination with other bearings. However, it does not limit the axial shift of shaft or housing. The limiting rotational speed of needle roller bearing is lower. In high rotational speed of main machine, the needle roller bearing with cage shall be chosen as far as possible. In compassion with other types of needle roller bearings, under the situation of same radial size, the needle roller bearing has the large load carrying capacity and high rigidity but has high friction torque.



This kind of bearing has many series with different structure and size. It is requested that the hardness, processing accuracy and surface roughness of shaft journal surface and rolling surface of outer housing be same as those of the collar of bearing. As for the needle roller with G2 class, the diameter varies within 2µm in group. Except the full complement needle roller bearings, they have the rigid cages, which can correctly guide the parallel axis line of needle roller.



Model RNA, NK Needle Roller Bearings Without Inner Ring



The needle roller bearing without inner ring is suitable for the parts of which the radial size is limited. Because of no inner ring, the surface of shaft journal fitted with it is acted directly as rolling surface. It is requested that the surface hardness be no less than HRC60, surface roughness, no more than 0.63µm. This kind of bearing does not limit the axial shift of shaft and housing and has high limiting rotational speed.





Solid Needle Roller Bearing With Machined Rings Without Inner Ring RNA, NK Specifications:

Shaft

Diameter

 Bearing Designation

Mass

Approx

 Boundary Dimensions Basic Load Rating Limiting Speed
Current Code Original Code Fw D C Dynamic Static Oil
mm g mm N rpm
36 NK365225     36 52 25
37   624706 154 37 52 22 28500 45500 9000
NK37/20     37 47 20 24900 43500 12000
NK37/30     37 47 30 37000 73000 12000
38 NK38/20     38 48 20 25500 45000 12000
NK38/30     38 48 30 38000 76000 12000
40 NK40/20   78.9 40 50 20 26500 43000 11000
NK40/30   120 40 50 30 37500 79000 11000
NK404815     40 48 15
NK405530     40 55 30
NKS40     40 55 22 38000 54000 11000
40 RNA49/32     40 52 20
RNA69/32 66349/32 147 40 52 36 25500 68500 8500
RNA405422     40 54 22
RNA40X55X20     40 55 20
42 NK42/20   83 42 52 20 23900 45000 10000
NK42/30   125 42 52 30 27000 49000 10000
RNA4907 4624907 99.3 42 55 20 19800 41500 8700
RNA5907     42 55 27
RNA6907 6634907 160 42 55 36 26000 60500 8700
  644708 148 42 65 22 31500 51000 8700
RNA425622     42 56 22
43 NK43/20   84 43 53 20 25700 75000 10000
NK43/30   126 43 53 30 39000 75000 10000
45 NK45/20 644808 81.5 45 55 20 19800 46500 7650
  624708 75.3 45 55 22 20500 49600 7650
  46449/38 80 45 58 20 21600 50500 7650
NK45/30     45 55 30 41000 88000 7650
NKS45     45 60 22 40500 60000 7650
RNA456227K     45 62 27
47 NK47/20     47 57 20 28500 56000 7650
NK47/30     47 57 30 43000 94000 7650
48 RNA4908 4644908 132 48 62 22 31000 63000 8120
RNA5908   225 48 62 30 31000 63000 8120
RNA6908 6634908 238 48 62 40 64000 112000 8120
50 RNA50/25   167 50 62 25 28000 67000 8140
RNA50/35   236 50 62 35 32000 70100 8140
  624708K 328 50 65 34 40000 62000 8140
NK50/14     50 64 14 32000 70100 8140
NK50/15     50 65 15 40000 62000 8140
NK50/27YA 644810 257 50 67 27
NKS50     50 65 22
NK506825     50 68 25
52 RNA4909 4624909 163 52 68 22 37000 69500 7600
RNA5909   232 52 68 30
RNA6909 6634909 308 52 68 40 61500 123500 7600
55 NK55/25   167 55 68 25 30600 60800 7600
  624709 210 55 68 25 36000 68000 7600
NK55/30     55 68 30 48000 63000 7600
NK55/35     55 68 35 55000 74000 7600
55 NKS55     55 72 22 45000 74000 7600
58 RNA4910 4644910 161 58 72 22 41000 72000 7500
RNA6910 6634910 296 58 72 40 68000 135000 7500
60 NK60/25   154 60 72 25 39000 86000 7000
NK60/35     60 72 35 56000 130000 7000
NKS60     60 80 28 63000 98000 7000
63 RNA4911 4644911 241 63 80 25 50600 96580 7000
RNA6911 6634911 430 63 80 45 82560 172000 7000
65 NK65/25     65 78 25 44000 98000 7000
NK65/35     65 78 35 59000 142000 7000
NKS65     65 85 28 67000 108000 7000
68 RNA4912 4644912 257 68 85 25 52800 91050 7000
RNA5912   408 68 85 34
RNA6912 6634912 436 68 85 45 88500 186000 7000
NK68/25     68 82 25 43500 89000 7000
70 NK70/25     70 85 25 44500 92000 6500
NK70/35     70 85 35 63000 144000 6500
72 RNA4913 4644913 300 72 90 25 57500 110500 6500
RNA6913 6634913 571 72 90 45 87600 194500 6500
75 NK75/25   315 75 92 25 54000 104000 6000
NK75/35   445 75 92 35 77000 162000 6000
80 RNA4914 4644914 400 80 100 30 79000 154000 5500
RNA6914 6634914 815 80 100 54 121000 263000 5500
NK80/25     80 95 25
NK80/35     80 95 35
85 RNA4915 4644915 472 85 105 30 82000 158000 5500
RNA5915   745 85 105 40
RNA6915 6634915 923 85 105 54 128000 272000 5500
NK85/25   404 85 105 25 69000 123000 5500
NK85/35   600 85 105 35 98000 193000 5500
90 RNA4916 4644916 496 90 110 30 81000 170500 5000
RNA6916 6634916 978 90 110 54 130500 280600 5000
NK90/35   604 90 110 30 103000 20800 5000
95 NK95/26   490 95 115 26 73000 137000 4800
NK95/36   680 95 115 36 107000 223000 4800
96   SG-421 496 96 115 29 73000 137000 4600
100 RNA4917 4644917 608 100 120 35 98000 207000 4600
RNA6917 6634917 1112 100 120 63 161000 337000 4600
NK100/30     100 120 30
100 NK100/36   681 100 120 36 111000 237000 4600
105 RNA4918 4644918 713 105 125 35 98500 239000 4000
RNA6918 6634918 1250 105 125 63 174000 38000 4000
NK105/26   540 105 125 26 78000 155000 4000
NK105/36   707 105 125 36 114000 250000 4000
110 RNA4919 4644919 685 110 130 35 112000 245000 3870
RNA6919 6634919 1325 110 130 63 196000 400000 3870
NK110/30   650 110 130 30 98000 21000 4200
NK110/40   830 110 130 40 127000 29000 4200
115 RNA4920 4624920 1006 115 140 40 120000 264000 3700
NK115/12     115 140 12
NK115/15     115 140 15
120 NK120/40     120 140 40
125 RNA4922 6634922 1200 125 150 40 124000 270000 3300
135 RNA4924 4644924 1760 135 165 45 174000 386000 2900
160 RNA4928 4644928 2350 160 190 50 200000 460000 2900



Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring 0

Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring 1



Solid Machined Radial Needle Bearing RNA4907 Without Inner Ring 2
