Product Details:
|
| Name: | Crowned Inch Stud Cam Follower Hex Hole | Material: | Bearing Steel(Stainless Steel Is Available) |
|---|---|---|---|
| Mounting Feature: | Hex Hole | Surface Finish: | Black Oxide Finish |
| Size Range: | Inch Series | O.D. Configuration:: | Crowned Outside Diameter |
| Rolling Elements: | Full Complement Needle Rollers | Adjustment: | None |
| Seal Type: | Sealed/No Sealed Are Available | Relubricatable:: | Yes |
| High Light: | crowned heavy duty cam followers,hex hole heavy duty cam followers,sealed roller cam follower |
||

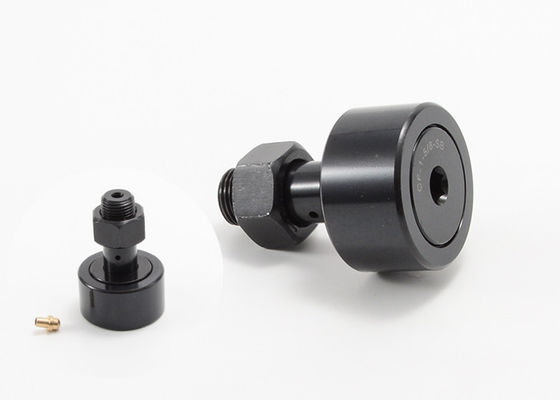

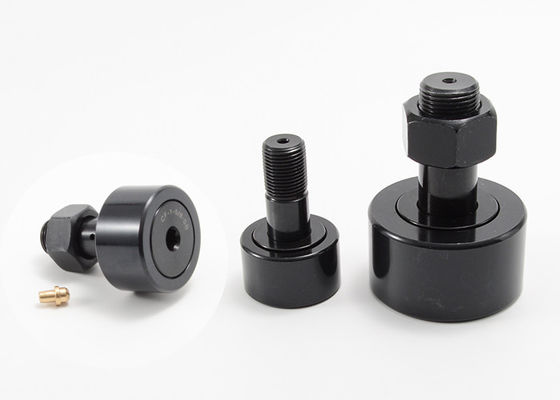

Crowned Inch Cam Follower Stud Hex Hole Sealed CCF 1/2 N SB Bearing Steel
Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.
MOUETTE designs and manufactures a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.
Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning. Mouette offers more interchange tables, such as mcgill cam follower bearings, iko cam follower, skf cam follower, ina cam follower, rbc cam follower, smith cam followers, and nsk cam follower.
Crowned Inch Cam Follower Stud Hex Hole Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Stud Dia.(SD) | Stud Length (SL) | Min. Thread Lenght (TL) | Fine THR'DS. |
| CCF 1/2 N B | CCF 1/2 N SB | .500 | .344 | .190 | 1/2 | 1/4 | 10-32 |
| CCF 1/2 B | CCF 1/2 SB | .500 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CCF 9/16 B | CCF 9/16 SB | .5625 | .375 | .190 | 5/8 | 1/4 | 10-32 |
| CCF 5/8 N B | CCF 5/8 N SB | .625 | .406 | .250 | 5/8 | 5/16 | 1/4-28 |
| CCF 5/8 B | CCF 5/8 SB | .625 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CCF 11/16 B | CCF 11/16 SB | .6875 | .4375 | .250 | 3/4 | 5/16 | 1/4-28 |
| CCF 3/4 B | CCF 3/4 SB | .750 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CCF 7/8 B | CCF 7/8 SB | .875 | .500 | .375 | 7/8 | 3/8 | 3/8-24 |
| CCF 1 B | CCF 1 SB | 1.000 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CCF 1 1/8 B | CCF 1 1/8 SB | 1.125 | .625 | .4375 | 1 | 1/2 | 7/16-20 |
| CCF 1 1/4 B | CCF 1 1/4 SB | 1.250 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CCF 1 3/8 B | CCF 1 3/8 SB | 1.375 | .750 | .500 | 1 1/4 | 5/8 | 1/2-20 |
| CCF 1 1/2 B | CCF 1 1/2 SB | 1.500 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CCF 1 5/8 B | CCF 1 5/8 SB | 1.625 | .875 | .625 | 1 1/2 | 3/4 | 5/8-18 |
| CCF 1 3/4 B | CCF 1 3/4 SB | 1.750 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CCF 1 7/8 B | CCF 1 7/8 SB | 1.875 | 1.000 | .750 | 1 3/4 | 7/8 | 3/4-16 |
| CCF 2 B | CCF 2 SB | 2.000 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CCF 2 1/4 B | CCF 2 1/4 SB | 2.250 | 1.250 | .875 | 2 | 1 | 7/8-14 |
| CCF 2 1/2 B | CCF 2 1/2 SB | 2.500 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CCF 2 3/4 B | CCF 2 3/4 SB | 2.750 | 1.500 | 1.000 | 2 1/4 | 1 1/8 | 1-14 |
| CCF 3 B | CCF 3 SB | 3.000 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CCF 3 1/4 B | CCF 3 1/4 SB | 3.250 | 1.750 | 1.250 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CCF 3 1/2 B | CCF 3 1/2 SB | 3.500 | 2.000 | 1.375 | 2 3/4 | 1 3/8 | 1 3/8-12 |
| CCF 4 B | CCF 4 SB | 4.000 | 2.250 | 1.500 | 3 1/2 | 1 1/2 | 1 1/2-12 |
| - | CCF 5 SB | 5.000 | 2.750 | 2.000 | 5 1/16 | 2 9/16 | 2-12 |
| - | CCF 6 SB | 6.000 | 3.250 | 2.500 | 6 | 3 | 2 1/2-12 |
| - | CCF 7 SB | 7.000 | 3.750 | 3.000 | 7 11/16 | 4 1/8 | 3-12 |
| - | CCF 8 SB | 8.000 | 4.250 | 3.250 | 8 1/2 | 4 1/4 | 3 1/4-4 |
| - | CCF 9 SB | 9.000 | 4.750 | 3.750 | 9 1/2 | 4 3/4 | 3 1/2-4 |
| - | CCF 10 SB | 10.000 | 5.250 | 4.250 | 10 | 4 3/4 | 3 1/2-4 |
| Unsealed | Sealed | Oil Hole | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | ||
| Hole Center (HC) | Hole Dia. (HD) | Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | ||||
| CCF 1/2 N B | CCF 1/2 N SB | - | - | - | 15 | 720 | 620 |
| CCF 1/2 B | CCF 1/2 SB | - | - | - | 15 | 790 | 680 |
| CCF 9/16 B | CCF 9/16 SB | - | - | - | 15 | 790 | 680 |
| CCF 5/8 N B | CCF 5/8 N SB | - | - | - | 35 | 1085 | 930 |
| CCF 5/8 B | CCF 5/8 SB | - | - | - | 35 | 1215 | 955 |
| CCF 11/16 B | CCF 11/16 SB | - | - | - | 35 | 1215 | 955 |
| CCF 3/4 B | CCF 3/4 SB | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CCF 7/8 B | CCF 7/8 SB | 1/4 | 3/32 | 3/16 | 95 | 2065 | 1660 |
| CCF 1 B | CCF 1 SB | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CCF 1 1/8 B | CCF 1 1/8 SB | 1/4 | 3/32 | 3/16 | 250 | 3060 | 2225 |
| CCF 1 1/4 B | CCF 1 1/4 SB | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CCF 1 3/8 B | CCF 1 3/8 SB | 5/16 | 3/32 | 3/16 | 350 | 4250 | 3930 |
| CCF 1 1/2 B | CCF 1 1/2 SB | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CCF 1 5/8 B | CCF 1 5/8 SB | 3/8 | 3/32 | 3/16 | 650 | 5640 | 4840 |
| CCF 1 3/4 B | CCF 1 3/4 SB | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CCF 1 7/8 B | CCF 1 7/8 SB | 7/16 | 3/32 | 3/16 | 1250 | 7920 | 6385 |
| CCF 2 B | CCF 2 SB | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CCF 2 1/4 B | CCF 2 1/4 SB | 1/2 | 1/8 | 3/16 | 1500 | 10570 | 8090 |
| CCF 2 1/2 B | CCF 2 1/2 SB | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CCF 2 3/4 B | CCF 2 3/4 SB | 9/16 | 1/8 | 3/16 | 2250 | 16450 | 11720 |
| CCF 3 B | CCF 3 SB | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CCF 3 1/4 B | CCF 3 1/4 SB | 5/8 | 1/8 | 1/4 | 3450 | 24910 | 15720 |
| CCF 3 1/2 B | CCF 3 1/2 SB | 11/16 | 1/8 | 1/4 | 4200 | 31625 | 22800 |
| CCF 4 B | CCF 4 SB | 3/4 | 1/8 | 1/4 | 5000 | 44770 | 29985 |
| - | CCF 5 SB | 7/8 | 3/16 | 1/4” NPT | 5000 | 67950 | 46575 |
| - | CCF 6 SB | 1 | 3/16 | 1/4” NPT | 5000 | 80450 | 60000 |
| - | CCF 7 SB | 1 1/4 | 3/16 | 1/4” NPT | 5000 | 106930 | 75380 |
| - | CCF 8 SB | - | - | 1/4” NPT | 5000 | 144100 | 92200 |
| - | CCF 9 SB | - | - | 1/4” NPT | 5000 | 183430 | 113260 |
| - | CCF 10 SB | - | - | 1/4” NPT | 5000 | 215565 | 131545 |
