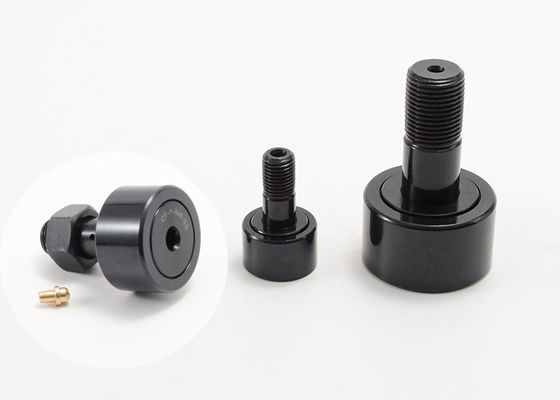

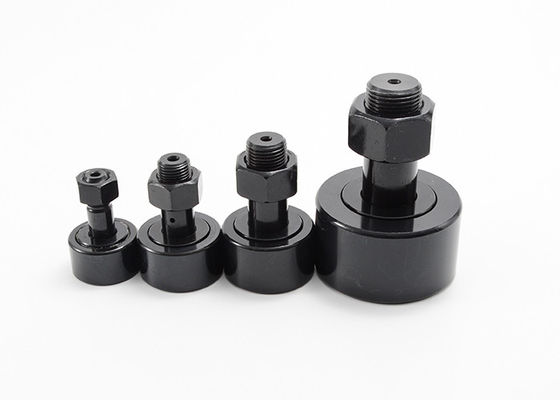

Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S
Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

Large Image :  Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: CCFE 1/2 S CCFE 1 1/2 S - Crowned Stud Type Cam Follower
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD1 per Piece
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S

Description
Name: Stud Type Cam Followers Material: High-Alloy Bearing Steel
Mounting Method: Stud Type Screwdriver Slot Size Range: Inch Series( O.D. In Inches)
Roller Shape: Stud Type Crowned Outside Diameter Rolling Elements: Needle Roller - Full Complement
Stud Type: Standard Stud With Eccentric Bushing Adjustment: Eccentric Bushing
Seal Type: Standard / Customized Surface Finish: Black Oxide Finish
High Light:

sealed Stud Type Cam Follower

,

crowned eccentric cam roller

,

eccentric cam roller black oxide

Crowned Cam Followers Inch Stud Eccentric Sealed Black Oxide CCFE 1/2 S CCFE 1 1/2 S



Designed to maximize preferred motion with rigid, consistent construction. Cam followers feature a simple and low friction profile to transform rotary motion into linear motion with low lubrication requirements.



MOUETTE carries a large inventory of Crowned/Cylindrical cam followers for your bearings needs. Stud type cam follower options include eccentric, standard, heavy, single row, and more.

Also known as track followers, cam followers are available in either crowned or Cylindrical designs. Both types feature a round outer roller and built-in threaded stud that projects out from one side. Crowned cam followers effectively reduce corner loading in rotary cams and turntables. Their outer roller is slightly curved in a crown shape to keep the follower centered on misaligned or non-flat surfaces. Cylindrical cam followers are ideal on cylindrical surfaces. Their outer roller does not have a curved or crowned radius. Also known as cylindrical cam followers, it experiences lower stresses in perfectly aligned applications.



Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning. Mouette offers more interchange tables, such as mcgill cam follower bearings, iko cam follower, skf cam follower, ina cam follower, rbc cam follower, smith cam followers, and nsk cam follower.





Crowned Cam Followers Inch Stud Eccentric Black Oxide Finish Specifications:

Unsealed Sealed Roller Dia. (RD) Roller Width (W) Eccentric Bush Length (G) Eccentric Bush Dia. (BD) Stud Length (SL) Min. Thread Lenght (TL) Fine THR'DS.
CCFE 1/2 N CCFE 1/2 N S .500 .344 .250 .250 1/2 1/4 10-32
CCFE 1/2 CCFE 1/2 S .500 .375 .375 .250 5/8 1/4 10-32
CCFE 9/16 CCFE 9/16 S .5625 .375 .375 .250 5/8 1/4 10-32
CCFE 5/8 CCFE 5/8 S .625 .4375 .437 .375 3/4 5/16 1/4-28
CCFE 11/16 CCFE 11/16 S .6875 .4375 .437 .375 3/4 5/16 1/4-28
CCFE 3/4 CCFE 3/4 S .750 .500 .500 .500 7/8 3/8 3/8-24
CCFE 7/8 CCFE 7/8 S .875 .500 .500 .500 7/8 3/8 3/8-24
CCFE 1 CCFE 1 S 1.000 .625 .500 .625 1 1/2 7/16-20
CCFE 1 1/8 CCFE 1 1/8 S 1.125 .625 .500 .625 1 1/2 7/16-20
CCFE 1 1/4 CCFE 1 1/4 S 1.250 .750 .625 .687 1 1/4 5/8 1/2-20
CCFE 1 3/8 CCFE 1 3/8 S 1.375 .750 .625 .687 1 1/4 5/8 1/2-20
CCFE 1 1/2 CCFE 1 1/2 S 1.500 .875 .750 .875 1 1/2 3/4 5/8-18
CCFE 1 5/8 CCFE 1 5/8 S 1.625 .875 .750 .875 1 1/2 3/4 5/8-18
CCFE 1 3/4 CCFE 1 3/4 S 1.750 1.000 .875 1.000 1 3/4 7/8 3/4-16
CCFE 1 7/8 CCFE 1 7/8 S 1.875 1.000 .875 1.000 1 3/4 7/8 3/4-16
CCFE 2 CCFE 2 S 2.000 1.250 1.000 1.187 2 1 7/8-14
CCFE 2 1/4 CCFE 2 1/4 S 2.250 1.250 1.000 1.187 2 1 7/8-14
CCFE 2 1/2 CCFE 2 1/2 S 2.500 1.500 1.125 1.375 2 1/4 1 1/8 1-14
CCFE 2 3/4 CCFE 2 3/4 S 2.750 1.500 1.125 1.375 2 1/4 1 1/8 1-14
CCFE 3 CCFE 3 S 3.000 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12
CCFE 3 1/4 CCFE 3 1/4 S 3.250 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12
CCFE 3 1/2 CCFE 3 1/2 S 3.500 2.000 1.375 1.812 2 3/4 1 3/8 1 3/8-12
CCFE 4 CCFE 4 S 4.000 2.250 2.000 2.000 3 1/2 1 1/2 1 1/2-12



Unsealed Sealed ECC. LUB. FITTING SIZE (F) Recom. Clamping Torque (LBS.) Basic Load Rating
Max. Static Capacity (LBS.) Max. Dyn. Capacity (LBS.)
CCFE 1/2 N CCFE 1/2 N S .010 1/8 15 720 620
CCFE 1/2 CCFE 1/2 S .010 1/8 15 790 680
CCFE 9/16 CCFE 9/16 S .010 1/8 15 790 680
CCFE 5/8 CCFE 5/8 S .015 1/8 35 1215 955
CCFE 11/16 CCFE 11/16 S .015 1/8 35 1215 955
CCFE 3/4 CCFE 3/4 S .015 3/16 95 2065 1660
CCFE 7/8 CCFE 7/8 S .015 3/16 95 2065 1660
CCFE 1 CCFE 1 S .030 3/16 250 3060 2225
CCFE 1 1/8 CCFE 1 1/8 S .030 3/16 250 3060 2225
CCFE 1 1/4 CCFE 1 1/4 S .030 3/16 350 4250 3930
CCFE 1 3/8 CCFE 1 3/8 S .030 3/16 350 4250 3930
CCFE 1 1/2 CCFE 1 1/2 S .030 3/16 650 5640 4840
CCFE 1 5/8 CCFE 1 5/8 S .030 3/16 650 5640 4840
CCFE 1 3/4 CCFE 1 3/4 S .030 3/16 1250 7920 6385
CCFE 1 7/8 CCFE 1 7/8 S .030 3/16 1250 7920 6385
CCFE 2 CCFE 2 S .030 3/16 1500 10570 8090
CCFE 2 1/4 CCFE 2 1/4 S .030 3/16 1500 10570 8090
CCFE 2 1/2 CCFE 2 1/2 S .030 3/16 2250 16450 11720
CCFE 2 3/4 CCFE 2 3/4 S .030 3/16 2250 16450 11720
CCFE 3 CCFE 3 S .060 1/4 3450 24910 15720
CCFE 3 1/4 CCFE 3 1/4 S .060 1/4 3450 24910 15720
CCFE 3 1/2 CCFE 3 1/2 S .060 1/4 4200 31625 22800
CCFE 4 CCFE 4 S .060 1/4 5000 44770 29985



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 0



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 1



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 2



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 3



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 4



Sealed Stud Type Cam Follower Crowned Eccentric Cam Roller Black Oxide CCFE 1/2 S CCFE 1 1/2 S 5
