Product Details:
|
| Name: | Inch Crowned Cam Follower Stud With Eccentric Bushing Hex Hole | Material: | High-Alloy Bearing Quality Steel |
|---|---|---|---|
| Surface Finish: | Black Oxide Finish | System Of Measurement: | Inch |
| Mounting Feature: | Hex Hole | Basic Construction Type: | Stud Crowned Outside Diameter |
| Rolling Elements: | Needle Roller - Full Complement | Adjustment: | Eccentric Bushing |
| Seal Type: | Standard / Customized | Lubrication Hole Location: | Stud Side |
| High Light: | bushing eccentric cam follower,crowned eccentric cam follower,hex hole cam and cam follower |
||

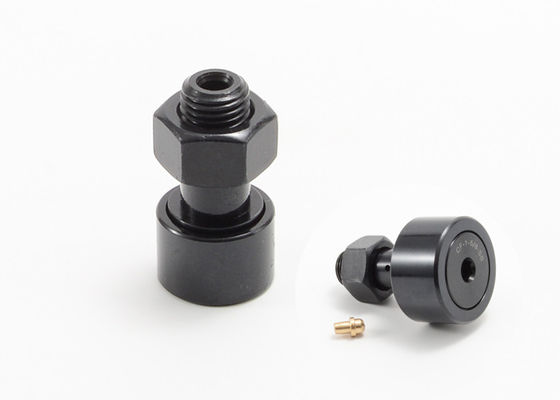

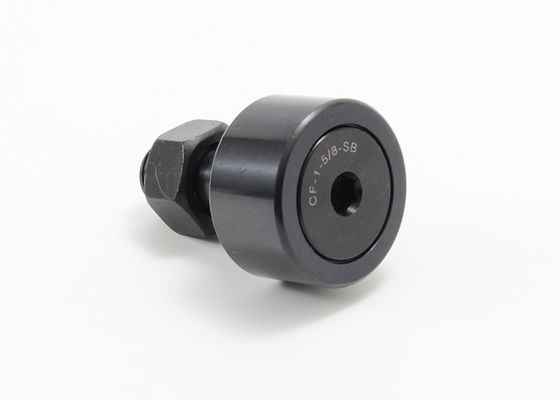

Crowned Inch Cam Follower Stud Eccentric Bushing Hex Hole CCFE 3/4 SB CCFE 1 3/4 SB
MOUETTE designs and manufactures a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.
Stainless steel cam followers intended harsh environments that require increased corrosion resistance. Excellent choice for outdoor use or for applications such as food production facilities that require frequent wash-down and cleaning. Mouette offers more interchange tables, such as mcgill cam follower bearings, iko cam follower, skf cam follower, ina cam follower, rbc cam follower, smith cam followers, and nsk cam follower.
Crowned Inch Series Stud Type Cam Follower with Eccentric Bushing and Hex Hole Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Eccentric Bush Length (G) |
Eccentric Bush Dia. (BD) |
Stud Length (SL) | Min. Thread Lenght (TL) | Fine THR'DS. |
| CCFE 1/2 N B | CCFE 1/2 N SB | .500 | .344 | .250 | .250 | 1/2 | 1/4 | 10-32 |
| CCFE 1/2 B | CCFE 1/2 SB | .500 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 |
| CCFE 9/16 B | CCFE 9/16 SB | .5625 | .375 | .375 | .250 | 5/8 | 1/4 | 10-32 |
| CCFE 5/8 B | CCFE 5/8 SB | .625 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 |
| CCFE 11/16 B | CCFE 11/16 SB | .6875 | .4375 | .437 | .375 | 3/4 | 5/16 | 1/4-28 |
| CCFE 3/4 B | CCFE 3/4 SB | .750 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 |
| CCFE 7/8 B | CCFE 7/8 SB | .875 | .500 | .500 | .500 | 7/8 | 3/8 | 3/8-24 |
| CCFE 1 B | CCFE 1 SB | 1.000 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 |
| CCFE 1 1/8 B | CCFE 1 1/8 SB | 1.125 | .625 | .500 | .625 | 1 | 1/2 | 7/16-20 |
| CCFE 1 1/4 B | CCFE 1 1/4 SB | 1.250 | .750 | .625 | .687 | 1 1/4 | 5/8 | 1/2-20 |
| CCFE 1 3/8 B | CCFE 1 3/8 SB | 1.375 | .750 | .625 | .687 | 1 1/4 | 5/8 | 1/2-20 |
| CCFE 1 1/2 B | CCFE 1 1/2 SB | 1.500 | .875 | .750 | .875 | 1 1/2 | 3/4 | 5/8-18 |
| CCFE 1 5/8 B | CCFE 1 5/8 SB | 1.625 | .875 | .750 | .875 | 1 1/2 | 3/4 | 5/8-18 |
| CCFE 1 3/4 B | CCFE 1 3/4 SB | 1.750 | 1.000 | .875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 |
| CCFE 1 7/8 B | CCFE 1 7/8 SB | 1.875 | 1.000 | .875 | 1.000 | 1 3/4 | 7/8 | 3/4-16 |
| CCFE 2 B | CCFE 2 SB | 2.000 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 |
| CCFE 2 1/4 B | CCFE 2 1/4 SB | 2.250 | 1.250 | 1.000 | 1.187 | 2 | 1 | 7/8-14 |
| CCFE 2 1/2 B | CCFE 2 1/2 SB | 2.500 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1-14 |
| CCFE 2 3/4 B | CCFE 2 3/4 SB | 2.750 | 1.500 | 1.125 | 1.375 | 2 1/4 | 1 1/8 | 1-14 |
| CCFE 3 B | CCFE 3 SB | 3.000 | 1.750 | 1.250 | 1.750 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CCFE 3 1/4 B | CCFE 3 1/4 SB | 3.250 | 1.750 | 1.250 | 1.750 | 2 1/2 | 1 1/4 | 1 1/4-12 |
| CCFE 3 1/2 B | CCFE 3 1/2 SB | 3.500 | 2.000 | 1.375 | 1.812 | 2 3/4 | 1 3/8 | 1 3/8-12 |
| CCFE 4 B | CCFE 4 SB | 4.000 | 2.250 | 2.000 | 2.000 | 3 1/2 | 1 1/2 | 1 1/2-12 |
| Unsealed | Sealed | ECC. | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | |
| Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | |||||
| CCFE 1/2 N B | CCFE 1/2 N SB | .010 | - | 15 | 720 | 620 |
| CCFE 1/2 B | CCFE 1/2 SB | .010 | - | 15 | 790 | 680 |
| CCFE 9/16 B | CCFE 9/16 SB | .010 | - | 15 | 790 | 680 |
| CCFE 5/8 B | CCFE 5/8 SB | .015 | - | 35 | 1215 | 955 |
| CCFE 11/16 B | CCFE 11/16 SB | .015 | - | 35 | 1215 | 955 |
| CCFE 3/4 B | CCFE 3/4 SB | .015 | 3/16 | 95 | 2065 | 1660 |
| CCFE 7/8 B | CCFE 7/8 SB | .015 | 3/16 | 95 | 2065 | 1660 |
| CCFE 1 B | CCFE 1 SB | .030 | 3/16 | 250 | 3060 | 2225 |
| CCFE 1 1/8 B | CCFE 1 1/8 SB | .030 | 3/16 | 250 | 3060 | 2225 |
| CCFE 1 1/4 B | CCFE 1 1/4 SB | .030 | 3/16 | 350 | 4250 | 3930 |
| CCFE 1 3/8 B | CCFE 1 3/8 SB | .030 | 3/16 | 350 | 4250 | 3930 |
| CCFE 1 1/2 B | CCFE 1 1/2 SB | .030 | 3/16 | 650 | 5640 | 4840 |
| CCFE 1 5/8 B | CCFE 1 5/8 SB | .030 | 3/16 | 650 | 5640 | 4840 |
| CCFE 1 3/4 B | CCFE 1 3/4 SB | .030 | 3/16 | 1250 | 7920 | 6385 |
| CCFE 1 7/8 B | CCFE 1 7/8 SB | .030 | 3/16 | 1250 | 7920 | 6385 |
| CCFE 2 B | CCFE 2 SB | .030 | 3/16 | 1500 | 10570 | 8090 |
| CCFE 2 1/4 B | CCFE 2 1/4 SB | .030 | 3/16 | 1500 | 10570 | 8090 |
| CCFE 2 1/2 B | CCFE 2 1/2 SB | .030 | 3/16 | 2250 | 16450 | 11720 |
| CCFE 2 3/4 B | CCFE 2 3/4 SB | .030 | 3/16 | 2250 | 16450 | 11720 |
| CCFE 3 B | CCFE 3 SB | .060 | 1/4 | 3450 | 24910 | 15720 |
| CCFE 3 1/4 B | CCFE 3 1/4 SB | .060 | 1/4 | 3450 | 24910 | 15720 |
| CCFE 3 1/2 B | CCFE 3 1/2 SB | .060 | 1/4 | 4200 | 31625 | 22800 |
| CCFE 4 B | CCFE 4 SB | .060 | 1/4 | 5000 | 44770 | 29985 |
