Product Details:
|
| Name: | Heavy Stud Cylindrical Inch Cam Follower Hex Hole | Material: | High-Alloy Bearing Quality Steel(Stainless Steel Is Customized) |
|---|---|---|---|
| Mounting Method: | Hex Hole | Size Range: | Inch |
| O D Configuration: | Cylindrical Outside Diameter | Rolling Elements: | Needle Roller - Full Complement |
| Type: | Heavy Stud | Lubrication Hole Location: | Stud Side |
| Seal Type: | Both Sealed And Unsealed Are Available | Surface Finish: | Black Oxide Finish |
| High Light: | black Stud Type Cam Follower,oxide Stud Type Cam Follower,cam follower bearing Hex Hole |
||

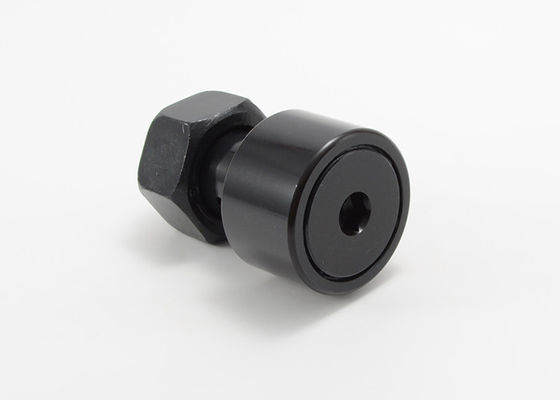

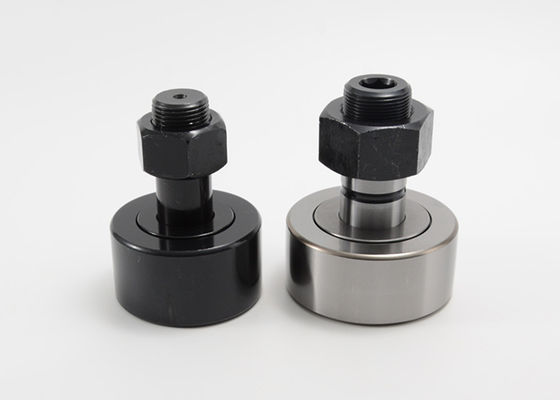

Heavy Stud Cylindrical Inch Cam Follower Stud Hex Hole CFH 1 3/4 B CFH 1 3/4 SB
MOUETTE designs and manufactures a complete line of cam followers for industrial applications, including machine tools, industrial robots, electronic parts production, office automation equipment and harsh environments that require increased corrosion resistance. Cam followers and track rollers provide antifriction solutions for translating rotation to linear motion or supporting either pure radial or combination thrust loads depending on the rolling elements types.
Feature:
Heavy Stud Cylindrical Inch Series Cam Follower with Hex Hole Specifications:
| Unsealed | Sealed | Roller Dia. (RD) | Roller Width (W) | Stud Dia.(SD) | Stud Length (SL) | Min. Thread Lenght (TL) | Fine THR'DS. |
| CFH 1/2 B | CFH 1/2 SB | .500 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 9/16 B | CFH 9/16 SB | .5625 | .375 | .250 | 5/8 | 1/4 | 1/4-28 |
| CFH 5/8 B | CFH 5/8 SB | .625 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 11/16 B | CFH 11/16 SB | .6875 | .4375 | .3125 | 3/4 | 5/16 | 5/16-24 |
| CFH 3/4 B | CFH 3/4 SB | .750 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 7/8 B | CFH 7/8 SB | .875 | .500 | .4375 | 7/8 | 3/8 | 7/16-20 |
| CFH 1 B | CFH 1 SB | 1.000 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/8 B | CFH 1 1/8 SB | 1.125 | .625 | .625 | 1 | 1/2 | 5/8-18 |
| CFH 1 1/4 B | CFH 1 1/4 SB | 1.250 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 3/8 B | CFH 1 3/8 SB | 1.375 | .750 | .750 | 1 1/4 | 5/8 | 3/4-16 |
| CFH 1 1/2 B | CFH 1 1/2 SB | 1.500 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 5/8 B | CFH 1 5/8 SB | 1.625 | .875 | .875 | 1 1/2 | 3/4 | 7/8-14 |
| CFH 1 3/4 B | CFH 1 3/4 SB | 1.750 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 1 7/8 B | CFH 1 7/8 SB | 1.875 | 1.000 | 1.000 | 1 3/4 | 7/8 | 1-14 |
| CFH 2 B | CFH 2 SB | 2.000 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/4 B | CFH 2 1/4 SB | 2.250 | 1.250 | 1.125 | 2 | 1 | 1 1/8-12 |
| CFH 2 1/2 B | CFH 2 1/2 SB | 2.500 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 2 3/4 B | CFH 2 3/4 SB | 2.750 | 1.500 | 1.250 | 2 1/4 | 1 1/8 | 1 1/4-12 |
| CFH 3 B | CFH 3 SB | 3.000 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/4 B | CFH 3 1/4 SB | 3.250 | 1.750 | 1.500 | 2 1/2 | 1 1/4 | 1 1/2-12 |
| CFH 3 1/2 B | CFH 3 1/2 SB | 3.500 | 2.000 | 1.750 | 2 3/4 | 1 3/8 | 1 3/4-12 |
| CFH 4 B | CFH 4 SB | 4.000 | 2.250 | 2.000 | 3 1/2 | 1 1/2 | 2-12 |
| Unsealed | Sealed | Oil Hole | LUB. FITTING SIZE (F) | Recom. Clamping Torque (LBS.) | Basic Load Rating | ||
| Hole Center (HC) | Hole Dia. (HD) | Max. Static Capacity (LBS.) | Max. Dyn. Capacity (LBS.) | ||||
| CFH 1/2 B | CFH 1/2 SB | - | - | - | 35 | 1580 | 680 |
| CFH 9/16 B | CFH 9/16 SB | - | - | - | 35 | 1580 | 680 |
| CFH 5/8 B | CFH 5/8 SB | - | - | - | 90 | 2480 | 955 |
| CFH 11/16 B | CFH 11/16 SB | - | - | - | 90 | 2480 | 955 |
| CFH 3/4 B | CFH 3/4 SB | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 7/8 B | CFH 7/8 SB | 1/4 | 3/32 | 3/16 | 250 | 4130 | 1660 |
| CFH 1 B | CFH 1 SB | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/8 B | CFH 1 1/8 SB | 1/4 | 3/32 | 3/16 | 650 | 6120 | 2225 |
| CFH 1 1/4 B | CFH 1 1/4 SB | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 3/8 B | CFH 1 3/8 SB | 5/16 | 3/32 | 3/16 | 1250 | 8500 | 3930 |
| CFH 1 1/2 B | CFH 1 1/2 SB | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 5/8 B | CFH 1 5/8 SB | 3/8 | 3/32 | 3/16 | 1500 | 11280 | 4840 |
| CFH 1 3/4 B | CFH 1 3/4 SB | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 1 7/8 B | CFH 1 7/8 SB | 7/16 | 3/32 | 3/16 | 2250 | 15840 | 6385 |
| CFH 2 B | CFH 2 SB | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/4 B | CFH 2 1/4 SB | 1/2 | 1/8 | 3/16 | 2800 | 21140 | 8090 |
| CFH 2 1/2 B | CFH 2 1/2 SB | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 2 3/4 B | CFH 2 3/4 SB | 9/16 | 1/8 | 3/16 | 3450 | 32900 | 11720 |
| CFH 3 B | CFH 3 SB | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/4 B | CFH 3 1/4 SB | 5/8 | 1/8 | 1/4 | 5000 | 49820 | 15720 |
| CFH 3 1/2 B | CFH 3 1/2 SB | 11/16 | 1/8 | 1/4 | 5000 | 63250 | 22800 |
| CFH 4 B | CFH 4 SB | 3/4 | 1/8 | 1/4 | 5000 | 89540 | 29985 |
