Product Details:
|
Name: | Corrosion-resistant Plastic Pillow Block Bearing | Type: | SS-UCFPL201, SS-UCFPL202, SS-UCFPL203, SS-UCFPL204, SS-UCFPL205, SS-UCFPL206, SS-UCFPL207, SS-UCFPL208, SS-UCFPL209, SS-UCFPL210 |
---|---|---|---|
Housing Material: | Plastic | Insert Bearings' Material: | Stainless Steel AISI 440C Or Stainless Steel 420 |
Shaft Fastening: | Grub Screws | Housing Type: | Flange |
Number Of Mounting Holes: | 4 | Housing Colour: | White / Black |
Applications: | Conveyor Systems, Material Handling Equipment, Food Processing, Pharmaceutical Industry, Packaging Industry, Agricultural Machinery | Lubrication: | Relubricatable Bearing, Housing With Integrated Lubrication Hole |
High Light: | PBT Plastic Pillow Block,2 bolt pillow block square flange mounted bearing,2 bolt pillow block square flange mounted bearing |

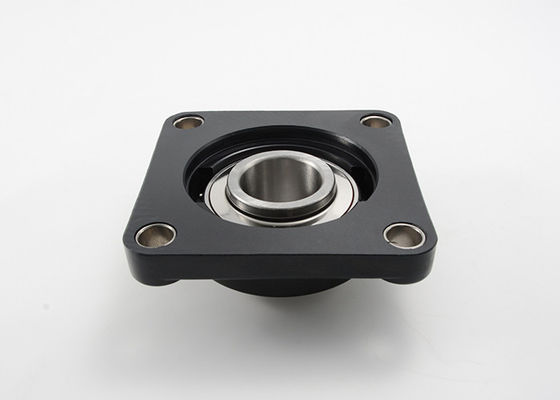

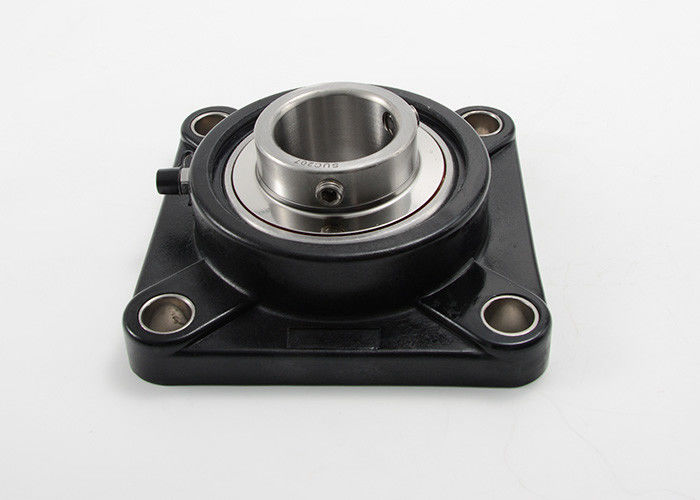

Corrosion-resistant Plastic Pillow Block Bearing Flange Housing Unit
Pillow blocks are foot mounted units that are used to provide shaft support when the mounting surface is parallel to the shaft axis. The mounting holes are slotted for ease of mounting adjustment. Plastic Pillow Blocks are made from engineering grade glass filled PBT polyester and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode. Polymer Pillow blocks are currently being used in many industries including food processing, bottling and packaging machines, chemical processing, and pool and marine applications. MOUETTE Pillow blocks can be purchased with a variety of insert bearings to best suit your specific application.
Materials Available:
· 304 Stainless insert ball bearing, 304 Stainless races and balls.
· 420 Stainless insert ball bearing, 420 Stainless races and balls.
· 440 Stainless insert ball bearing, 440 Stainless races and balls
These maintenance-free plastic pillow blocks have excellent mechanical strength, stiffness, and dimensional stability and never rust or corrode. When inserted with a stainless insert ball bearing, they provide superior corrosion resistance compared to any mounted unit offered today.
Mainly Applications:
MOUETTE offers more interchange stainless steel pillow block bearings and plastic pillow blocks, such as skf pillow block bearings, timken pillow block bearings, ntn pillow block bearings, fafnir pillow block bearings, fag pillow block bearings.
Corrosion-resistant Plastic Pillow Block Bearing Flange Housing Unit Specifications:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Bearing Part No. |
Housing Part No. |
||||||||
d | a | e | g |
L |
S |
i |
Bi |
n | ||||
in | mm | |||||||||||
SS-UCFPL 201 | 1/ 2 | 12 | 86 | 63.5 | 13.4 | 27.8 | 11 | 18 | 31 | 12.7 | 0.12 | M10 |
SS-UCFPL 202 | 9/16 5/8 | 15 | 86 | 63.5 | 13.4 | 27.8 | 11 | 18 | 31 | 12.7 | 0.12 | M10 |
SS-UCFPL 203 | 11/16 | 17 | 86 | 63.5 | 13.4 | 27.8 | 11 | 18 | 31 | 12.7 | 0.12 | M10 |
SS-UCFPL 204 | 3/ 4 | 20 | 86 | 63.5 | 13.4 | 27.8 | 11 | 18 | 31 | 12.7 | 0.12 | M10 |
SS-UCFPL 205 | 13/16 7/8 15/16 1 | 25 | 95 | 70 | 14.5 | 28 | 11 | 17 | 34.1 | 14.3 | 0.15 | M10 |
SS-UCFPL 206 | 1-1/16 1-1/8 1-3/16 1-1/4 | 30 | 107 | 83 | 14.5 | 31.5 | 11 | 19.2 | 38.1 | 15.9 | 0.18 | M10 |
SS-UCFPL 207 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 117 | 92 | 16 | 34.8 | 13 | 21.5 | 42.9 | 17.5 | 0.26 | M12 |
SS-UCFPL 208 | 1-1/2 1-9/16 | 40 | 129 | 102 | 17 | 36.5 | 14 | 23 | 49.2 | 19 | 0.33 | M12 |
SS-UCFPL 209 | 1-5/8 1-11/16 1-3/4 | 45 | 137 | 105 | 19 | 41 | 17 | 24 | 49.2 | 19 | 0.42 | M16 |
SS-UCFPL 210 | 1-13/16 1-7/8 1-15/16 2 | 50 | 143 | 111 | 20 | 42 | 17 | 25 | 51.6 | 19 | 0.51 | M16 |
SS-UCFPL 211 | 2 2-1/16 2-1/8 2-3/16 | 55 | 162 | 130 | 19.5 | 43 | 19 | 25 | 55.6 | 22.2 | 0.61 | M18 |
SS-UCFPL 212 | 2-1/4 2-5/16 2-3/8 2-7/16 | 60 | 175 | 143 | 19 | 48 | 19 | 29 | 65.1 | 25.4 | 0.72 | M18 |
Mode of load |
Load ratings(N) |
||||||
Tipo Type | 204 | 205 | 206 | 207 | 208 | 209 | 210 |
|
15950 |
13000 |
18000 |
18500 |
19100 |
19350 |
19650 |
|
10250 |
12150 |
17700 |
18500 |
19250 |
19350 |
19620 |
|
3650 |
3350 |
3350 |
3520 |
3790 |
3850 |
3990 |
