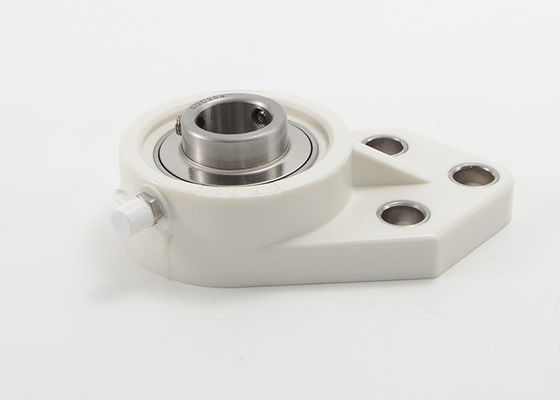

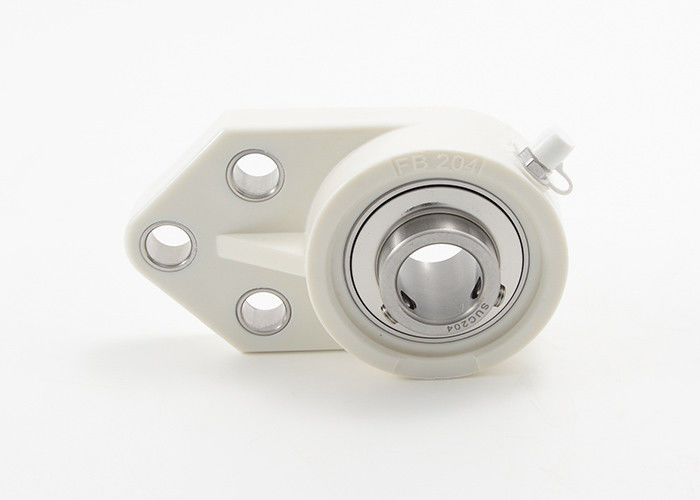

Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203
Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

Large Image :  Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: SS-UCFBPL201, SS-UCFBPL202, SS-UCFBPL204, SS-UCFBPL207
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: USD2 per Piece (Inquired)
Packaging Details: Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.
Contact Now

Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203

Description
Name: Thermoplastic Bearing Unit With Stainless Steel Insert Ball Bearing Housing Color: White / Black
Housing Material: High Grade Of Glass-filled PBT Polymer Insert Bearings' Material: Stainless Steel AISI 440C, Stainless Steel 420, Stainless Steel 304
Insert Bearing Feature: Wide Inner Ring Housing Feature: Three-Bolt Flange Bracket
Compliance With Standard: ISO, JIS, North American Standard Applications: Food Processing, Bottling And Packaging Machines, Chemical Processing, And Pool And Marine Applications
High Light:

2 bolt flange pillow block

,

420 4 bolt flange pillow block bearing

,

stainless steel 4 bolt flange pillow block bearing

Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203



Thermoplastic Bearing Units are corrosion resistant units for various applications and are needed for the environments of clean operating. Thermoplastic bearing units provide the desirable thermal, electrical and mechanical properties that offer the standard products. The exclusive features of the thermoplastic bearing are solid base, bolt grommets, stainless steel wide inner ring and others. Thermoplastic Housings are dimensionally interchangeable with conventional cast-iron housings, are maintenance free with excellent mechanical strength, stiffness and dimensional stability that will never rust or corrode.

Applications And Industry:
Agriculture, Home Appliances, Meat, Poultry And Seafood Proceesing And Packaging Plants, Beverage, Brewing And Bottling Plants, Food Industry, Automation, Agriculture, Machines, Machine Construction, Conveyor Technology, Chemical Proceesing Machines.

SS-UCFBPL Thermoplastic Bearing Unit Features:
Insert bearing:
  • Set Screw Locking
  • Wide Inner Ring
  • Material: Stainless Steel AISI 440C, Stainless Steel 420



Housing:

  • Three-Bolt Flange Bracket
  • Material: PBT Thermoplastic



Thermoplastic Bearing Unit Insert Ball Bearing 3 Bolt Flange SS UCFBPL2 Series Specifications:



Bearing Unit Part No.

 Bore Dia   Dimension(mm)



Housing

Weight (kg)

Bolt Size
d   a e



h

 w s



f

 c



b



l

 g



i

 n



Bi
in mm
SS-UCFBPL201

1/ 2

 12 62 38.1 76.5 108.5 11 22.2 42.9 62 26.5 12 15.4 12.7 31 0.1 M10
SS-UCFBPL202 9/16  5/8 15 62 38.1 76.5 108.5 11 22.2 42.9 62 26.5 12 15.4 12.7 31 0.1 M10
SS-UCFBPL203 11/16 17 62 38.1 76.5 108.5 11 22.2 42.9 62 26.5 12 15.4 12.7 31 0.1 M10
SS-UCFBPL204 3/ 4 20 62 38.1 76.5 108.5 11 22.2 42.9 62 26.5 12 15.4 12.7 31 0.1 M10
SS-UCFBPL205 13/16 7/8 15/16  1 25 63.5 41.3 85.7 120.6 11 28.6 46 69 33.5 12 21 14.3 34.1 0.12 M10
SS-UCFBPL206

1-1/16

1-1/8

1-3/16

1-1/4

 30 75 47.6 98.5 140 11 31.8 52.4 82 31.5 14 19 15.9 38.1 0.16 M10
SS-UCFBPL207

1-1/4

1-5/16

1-3/8

1-7/16

 35 89 50.8 110 158 13 31.8 60.3 94 36.5 17 21.4 17.5 42.9 0.18 M12
SS-UCFBPL208

1-1/2

1-9/16

 40 78 50 114 164 13 41.3 60.3 100 35.7 18 21.4 19 49.2 0.23 M12





Mode of load

Load ratings(N)
Type 204 205 206 207 208



Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 0





7200





9100





12200





12900





13600

        Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 1





9200





11100





11800





11900





12100

     Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 2





2600





2800





2900





3100





3300





Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 3





Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 4



Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 5



Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 6



Thermoplastic Bearing Unit Stainless Steel Insert Ball Bearing 3 Bolt Flange SS UCFBPL203 7
