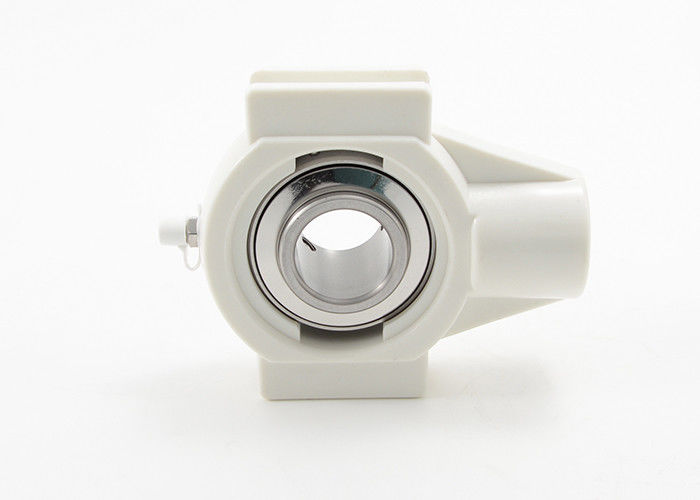

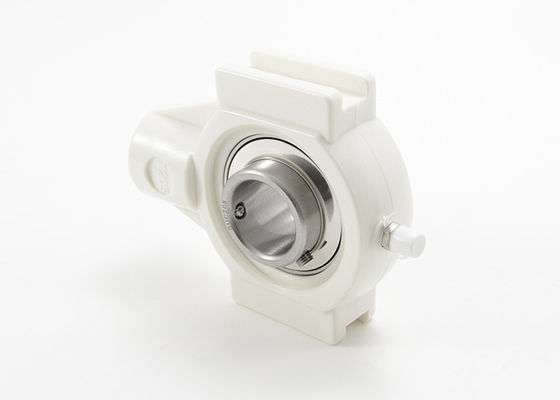

Plastic Pillow Block Housings With Stainless Steel Bearing Inserts SS UCECHPL202

Plastic Housings With Stainless Steel Bearing Inserts SS UCECHPL202

Pillow blocks are foot mounted units that are used to provide shaft support when the mounting surface is parallel to the shaft axis. The mounting holes are slotted for ease of mounting adjustment. Plastic Pillow Blocks are made from engineering grade glass filled PBT polyester and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode. Polymer Pillow blocks are currently being used in many industries including food processing, bottling and packaging machines, chemical processing, and pool and marine applications. MOUETTE Pillow blocks can be purchased with a variety of insert bearings to best suit your specific application.

No Plating or Coating to Chip or Peel

Coated or plated cast iron housings can scratch, chip and peel. In fact, the very act of installing them causes the finish to be removed around the edges of the bolt holes beginning the process of corrosion. MOUETTE housings are a solid base glass-filled PBT polymer which requires no coatings for corrosion protection.

Designed for Cleanliness

The polymer surface is much more hygienic than cast iron. The rough surface of cast iron can harbor objectional dirt, mold and bacteria. Additionally, the mounting surface, or the bottom of the block, is machined for flatness so that dirt and water do not lead to the formation of mold or bacteria.

Can Run Dry, Wet or Fully Submersed

The block and bearing units are unique in that they can run fully submerged without lubrication. They can handle up to 120°f when submerged in liquids and even higher temperatures when they run dry.

Materials Available:

• Pillow Block: Glass-filled PBT polymer
• Insert Bearings

          · 304 Stainless insert ball bearing, 304 Stainless races and balls.

          · 420 Stainless insert ball bearing, 420 Stainless races and balls.

          · 440 Stainless insert ball bearing, 440 Stainless races and balls

These maintenance-free plastic pillow blocks have excellent mechanical strength, stiffness, and dimensional stability and never rust or corrode. When inserted with a stainless insert ball bearing, they provide superior corrosion resistance compared to any mounted unit offered today.

Mainly Applications:

• Food and beverage processing
• Bottling and packaging machines
• Chemical processing
• Pool and marine applications
• Elevator systems
• Food and beverage processing and packaging
• Conveyor systems
• Agricultural machinery

Plastic Housings With Stainless Steel Bearing Inserts SS UCECHPL2 Specifications:
