Product Details:
|
Name: | Thermoplastic Flange Pillow Block Bearing | Housing Material: | High Grade Of Glass-filled PBT Polymer |
---|---|---|---|
Insert Bearings' Material: | Stainless Steel AISI 440C, Stainless Steel 420 | Housing Colour: | Black / White |
Size Range: | Metric, Bore Diameter From 12mm To 60mm | Compliance With Standard: | ISO, JIS, North American Standard |
Applications: | Food Processing, Bottling And Packaging Machines, Chemical Processing, And Pool And Marine Applications | Construction: | Consisting Of A Stainless Steel Ball Bearing Insert And A Thermoplastic Housing |
High Light: | 2 bolt square flange pillow block bearing,4 bolt square flange pillow block bearing,420 flange pillow block |

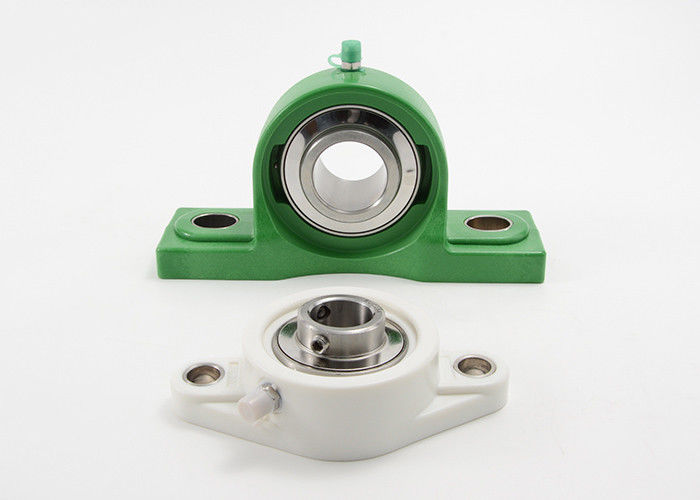

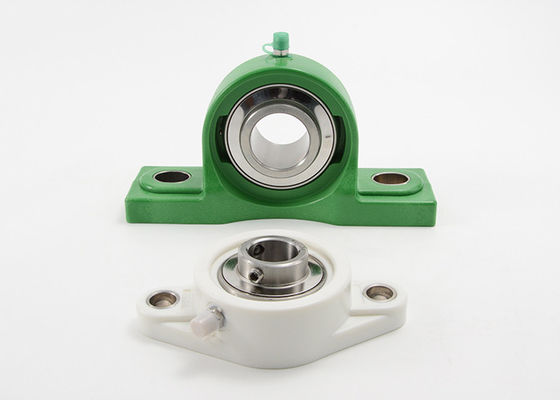

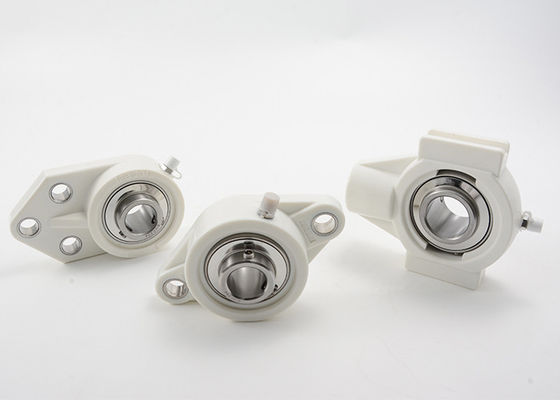

Thermoplastic Flange Pillow Block Bearing Stainless Steel Insert Bearings SS UCFLPL204
Pillow blocks are foot mounted units that are used to provide shaft support when the mounting surface is parallel to the shaft axis. The mounting holes are slotted for ease of mounting adjustment. Plastic Pillow Blocks are made from engineering grade glass filled PBT polyester and are completely interchangeable with conventional cast iron blocks. These maintenance free blocks have excellent mechanical strength, stiffness and dimensional stability, and never rust or corrode. Polymer Pillow blocks are currently being used in many industries including food processing, bottling and packaging machines, chemical processing, and pool and marine applications. MOUETTE Pillow blocks can be purchased with a variety of insert bearings to best suit your specific application.
No Plating or Coating to Chip or Peel
Coated or plated cast iron housings can scratch, chip and peel. In fact, the very act of installing them causes the finish to be removed around the edges of the bolt holes beginning the process of corrosion. MOUETTE housings are a solid base glass-filled PBT polymer which requires no coatings for corrosion protection.
Designed for Cleanliness
The polymer surface is much more hygienic than cast iron. The rough surface of cast iron can harbor objectional dirt, mold and bacteria. Additionally, the mounting surface, or the bottom of the block, is machined for flatness so that dirt and water do not lead to the formation of mold or bacteria.
Materials Available:
· 304 Stainless insert ball bearing, 304 Stainless races and balls.
· 420 Stainless insert ball bearing, 420 Stainless races and balls.
· 440 Stainless insert ball bearing, 440 Stainless races and balls
These maintenance-free plastic pillow blocks have excellent mechanical strength, stiffness, and dimensional stability and never rust or corrode. When inserted with a stainless insert ball bearing, they provide superior corrosion resistance compared to any mounted unit offered today.
Applications:
The bearing is used particularly in the food and beverage industry as well as in the pharmaceutical industry.
Thermoplastic Flange Pillow Block Bearing Stainless Steel Insert Bearings Dimensions:
Bearing Unit Part No. |
Bore Dia | Dimension(mm) |
Housing weight (kg) |
Bolt Size |
|||||||||
d | a | e |
b |
g |
l |
s |
i |
Bi |
n | ||||
in | mm | ||||||||||||
SS-UCFLPL201 | 1/ 2 | 12 | 113 | 90 | 64 | 11.4 | 26.5 | 11 | 15.4 | 31 | 12.7 | 0.08 | M10 |
SS-UCFLPL202 | 9/16 5/8 | 15 | 113 | 90 | 64 | 11.4 | 26.5 | 11 | 15.4 | 31 | 12.7 | 0.08 | M10 |
SS-UCFLPL203 | 11/16 | 17 | 113 | 90 | 64 | 11.4 | 26.5 | 11 | 15.4 | 31 | 12.7 | 0.08 | M10 |
SS-UCFLPL204 | 3/ 4 | 20 | 113 | 90 | 64 | 11.4 | 26.5 | 11 | 15.4 | 31 | 12.7 | 0.08 | M10 |
SS-UCFLPL205 | 13/16 7/8 15/16 1 | 25 | 131 | 99 | 69.5 | 14 | 29.5 | 11 | 17 | 34.1 | 14.3 | 0.10 | M10 |
SS-UCFLPL206 | 1-1/16 1-1/8 1-3/16 1-1/4 | 30 | 148 | 117 | 80 | 14 | 30.5 | 11 | 19 | 38.1 | 15.9 | 0.13 | M10 |
SS-UCFLPL207 | 1-1/4 1-5/16 1-3/8 1-7/16 | 35 | 164 | 130 | 90 | 16 | 32.8 | 13 | 18 | 42.9 | 17.5 | 0.16 | M12 |
SS-UCFLPL208 | 1-1/2 1-9/16 | 40 | 175 | 144 | 99 | 20 | 37.5 | 14 | 21.5 | 49.2 | 19 | 0.24 | M12 |
SS-UCFLPL209 | 1-5/8 1-11/16 1-3/4 | 45 | 188 | 148 | 108 | 21 | 41 | 17 | 24 | 49.2 | 19 | 0.32 | M16 |
SS-UCFLPL210 | 1-13/16 1-7/8 1-15/16 2 | 50 | 197 | 157 | 115 | 21 | 42 | 17 | 25 | 51.6 | 19 | 0.42 | M16 |
SS-UCFLPL211 | 2 2-1/16 2-1/8 2-3/16 | 55 | 224 | 184 | 128 | 18.5 | 43 | 19 | 25 | 55.6 | 22.2 | 0.55 | M18 |
SS-UCFLPL212 | 2-1/4 2-5/16 2-3/8 2-7/16 | 60 | 250 | 202 | 139 | 24 | 48 | 19 | 29 | 65.1 | 25.4 | 0.7 | M18 |
