Product Details:
|
| Name: | Full Complement Cylindrical Roller Bearings | Main Features: | Cylindrical Roller Bearings SL04..-PP, Locating Bearing, Double Row, Full Complement Cylindrical Roller Set, Light Series, With Annular Slots, Lip Seals On Both Sides |
|---|---|---|---|
| Bore: | Cylindrical Bore | Bearing Material: | High Quality Bearing Steel 100Cr6, GCr15, AISI 52100 |
| Inch/Metric: | Metric Size | Sealing: | Contact Seal On Both Sides |
| Radial Internal Clearance: | Group N (CN) | Number Of Rolling Element Rows: | Double-row Design |
| High Light: | SL04 130PP full complement cylindrical roller bearings,full complement cylindrical roller bearings SL04 150PP,SL04 200PP metric roller bearing |
||

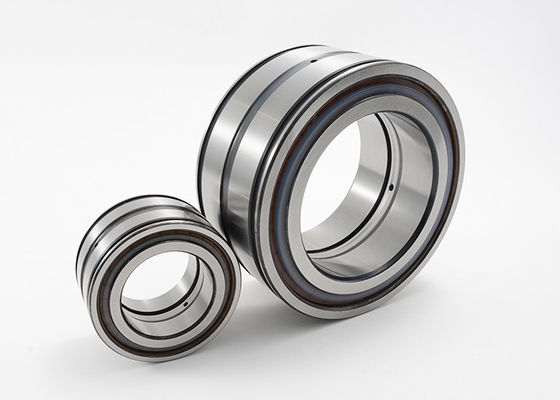

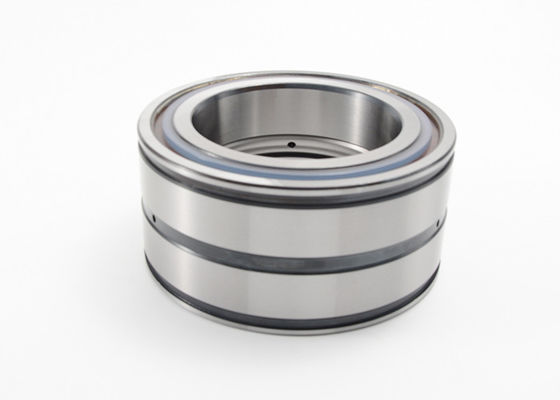

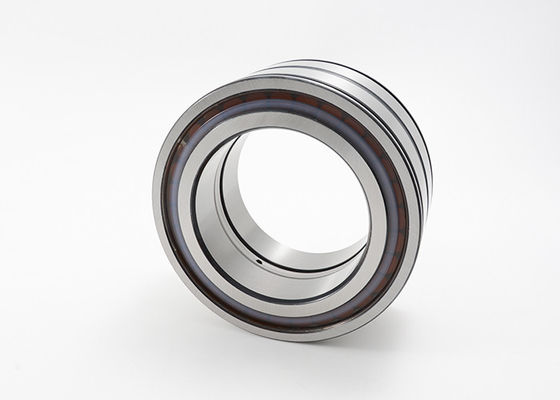

Full Complement Cylindrical Roller Bearings SL04130PP SL04 150PP SL04 200PP
Main specifications:
Category: Cylindrical Roller Bearing Double Row
Bore: Cylindrical Bore
Seal: PP Contact Seal on both sides
Cage Type: Full Complement, No Cage
Radial Internal Play: Group N (Normal Internal Play CN)
Precision: Standard Precision
Heat Stabilization: No Heat Stabilization - Temperatures up to 120 °C
Full Complement Cylindrical Roller Bearings Type SL04 Series Details:
| Bearing Code | Dimensions | Loading Rating | Limiting speed | Mass | ||||||||
| d | D | B | d1 | D1 | C | r | Dyn. | Stat. | Fatigue limit load | nG | ||
| Cr | Cor | Cur | ||||||||||
| mm | KN | rpm | kg | |||||||||
| SL04 130PP | 130 | 190 | 80 | 151 | 186 | 79 | 0.6 | 430 | 790 | 87 | 800 | 7.5 |
| SL04 140PP | 140 | 200 | 80 | 160.5 | 196 | 79 | 0.6 | 445 | 840 | 91 | 750 | 8 |
| SL04 150PP | 150 | 210 | 80 | 175 | 206 | 79 | 0.6 | 465 | 920 | 98 | 700 | 8.4 |
| SL04 160PP | 160 | 220 | 80 | 184.5 | 216 | 79 | 0.6 | 480 | 970 | 101 | 700 | 8.8 |
| SL04 170PP | 170 | 230 | 80 | 194.5 | 226 | 79 | 0.6 | 490 | 1030 | 105 | 650 | 9.3 |
| SL04 180PP | 180 | 240 | 80 | 203.5 | 236 | 79 | 0.6 | 500 | 1080 | 110 | 600 | 9.8 |
| SL04 190PP | 190 | 260 | 80 | 218 | 254 | 79 | 0.6 | 520 | 1130 | 113 | 550 | 12.7 |
| SL04 200PP | 200 | 270 | 80 | 227.5 | 264 | 79 | 0.6 | 540 | 1210 | 119 | 550 | 13.2 |
| SL04 220PP | 220 | 300 | 95 | 249 | 294 | 94 | 1 | 700 | 1550 | 150 | 480 | 19.5 |
| SL04 240PP | 240 | 320 | 95 | 272 | 314 | 94 | 1 | 740 | 1700 | 160 | 480 | 21 |
| SL04 260PP | 260 | 340 | 95 | 293 | 334 | 94 | 1 | 840 | 199 | 182 | 440 | 22.5 |
| SL04 300PP | 300 | 380 | 95 | 328.5 | 374 | 94 | 1 | 900 | 2250 | 199 | 380 | 25.5 |
