Product Details:
|
| Name: | Semi Locating Cylindrical Roller Bearings | Medias Description: | Cylindrical Roller Bearing SL1818..-E, Full Complement Roller Set, Single Row, Semi-locating Bearing, 1 Rib On Outer Ring, 2 Ribs On Inner Ring, Type SL18 |
|---|---|---|---|
| Bore: | Cylindrical Bore | Bearing Material: | 100Cr6, GCr15, AISI 52100 |
| Size: | Metric Series | Seal: | Open, No Seal |
| Cage Type: | Full Complement, No Cage | Radial Internal Play: | Normal Internal Play |
| Precision: | Standard Precision | Heat Stabilization: | No Heat Stabilization - Temperatures Up To 120 °C |
| High Light: | Semi Locating cylindrical bearing rollers,full complement roller bearing SL181872-E,full complement roller bearing SL181852-E |
||

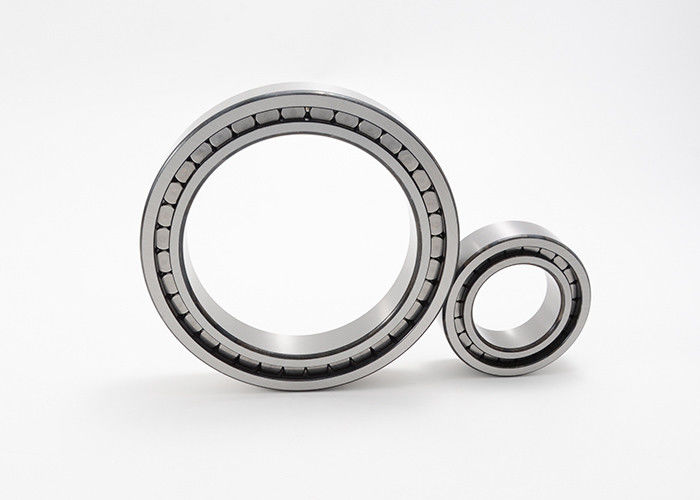

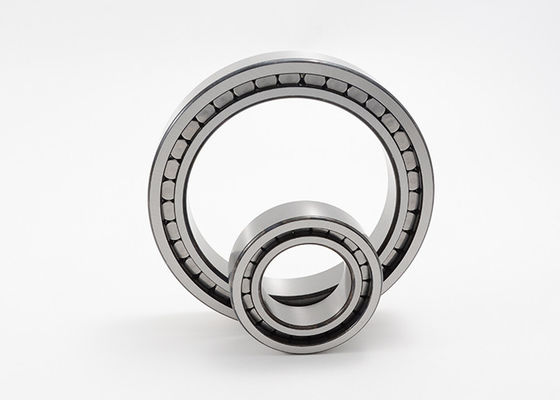

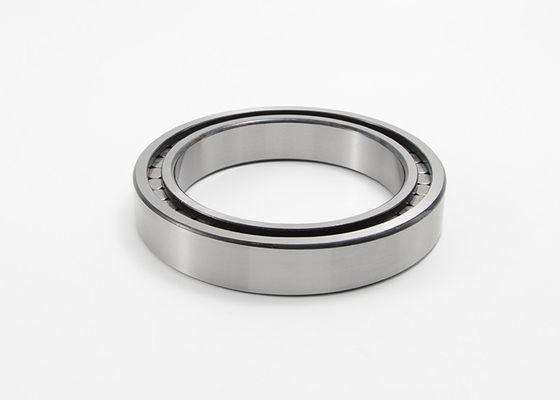

Semi Locating Bearing Cylindrical Roller Bearings SL181872-E SL181852-E
Single row full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
The SL181872-E is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.
Semi Locating Bearing Cylindrical Roller Bearings SL1818 Series Specifications:
|
Bearing Code |
Dimensions | Loading Rating | Limiting speed | Mass | ||||||||||||
| d | D | B | d1 | D1 | E | s | rmin | Dyn. | Stat. | Fatigue limit load | Limiting speed | Reference speed | ||||
| Cr | Cor | Cur | nG | nB | ||||||||||||
| mm | KN | rpm | kg | |||||||||||||
| SL181840 | 200 | 250 | 24 | 216.6 | 231.6 | 237.6 | 2 | 1.5 | 178 | 320 | 33.5 | 1450 | 1040 | 2.57 | ||
| SL181844 | 220 | 270 | 24 | 237.3 | 252.3 | 258.5 | 2 | 1.5 | 187 | 350 | 36 | 1320 | 940 | 2.8 | ||
| SL181848-E | 240 | 300 | 28 | 260.5 | 281 | 287.5 | 2 | 2 | 265 | 490 | 51 | 1200 | 870 | 4.29 | ||
| SL181852-E | 260 | 320 | 28 | 281 | 301.5 | 308 | 2 | 2 | 275 | 530 | 54 | 1110 | 790 | 4.61 | ||
| SL181856-E | 280 | 350 | 33 | 304 | 327 | 335 | 2.5 | 2 | 355 | 670 | 69 | 1030 | 730 | 6.89 | ||
| SL181860-E | 300 | 380 | 38 | 323.5 | 350.5 | 360 | 3 | 2.1 | 455 | 840 | 86 | 960 | 680 | 9.79 | ||
| SL181864-E | 320 | 400 | 38 | 344.5 | 371.5 | 381 | 3 | 2.1 | 470 | 900 | 90 | 910 | 620 | 10.36 | ||
| SL181868-E | 340 | 420 | 38 | 365.5 | 392.5 | 402.2 | 3 | 2.1 | 485 | 960 | 94 | 860 | 570 | 10.93 | ||
| SL181872-E | 360 | 440 | 38 | 387 | 413.5 | 423.5 | 3 | 2.1 | 500 | 1010 | 98 | 810 | 530 | 11.49 | ||
| SL181876-E | 380 | 480 | 46 | 415.5 | 448 | 459 | 4 | 2.1 | 650 | 1290 | 126 | 750 | 490 | 18.87 | ||
| SL181880-E | 400 | 500 | 46 | 432 | 464.5 | 475.5 | 4 | 2.1 | 660 | 1340 | 130 | 720 | 470 | 19.81 | ||
| SL181884-E | 420 | 520 | 46 | 457 | 489.5 | 500 | 4 | 2.1 | 680 | 1420 | 135 | 690 | 430 | 20.6 | ||
| SL181888-E | 440 | 540 | 46 | 473.5 | 506 | 517 | 4 | 2.1 | 700 | 1470 | 139 | 660 | 415 | 21.54 | ||
| SL181892-E | 460 | 580 | 56 | 501.5 | 541 | 554 | 5 | 3 | 940 | 1890 | 179 | 620 | 385 | 33.21 | ||
| SL181896-E | 480 | 600 | 56 | 522 | 561 | 574.5 | 5 | 3 | 960 | 1970 | 185 | 600 | 365 | 34.53 | ||
| SL1818/500-E | 500 | 620 | 56 | 542 | 581.5 | 594.5 | 5 | 3 | 980 | 2050 | 190 | 580 | 345 | 35.73 | ||
