Product Details:
|
| Name: | Non-locating Bearing Double Row Cylindrical Roller Bearings | Self Aligning: | No |
|---|---|---|---|
| Origin: | Cylindrical Radial | Cage Material: | Cageless |
| Inch/Metric: | Metric Series | Sealing: | Open |
| Rows Of Rolling Elements: | Double Row | Tolerance: | ISO Class 0 |
| Bearing Material: | Chrome Steel 100Cr6, AISI 52100 | Bearing Features: | Cylindrical Roller Bearings SL0248, Non-locating Bearing, Double Row, Full Complement Cylindrical Roller Set, Dimension Series 48 |
| High Light: | SL02 4830 double row roller bearing,SL02 4848 double row roller bearing,Cylindrical Radial non locating bearing |
||

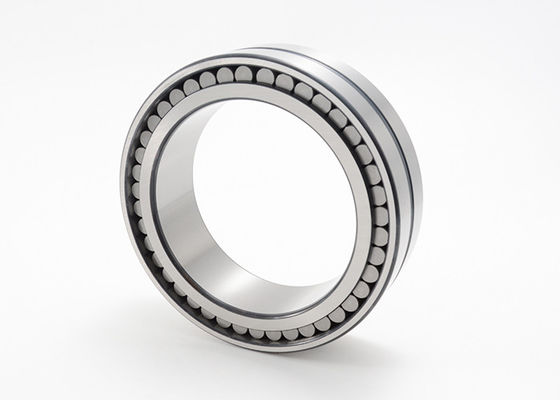

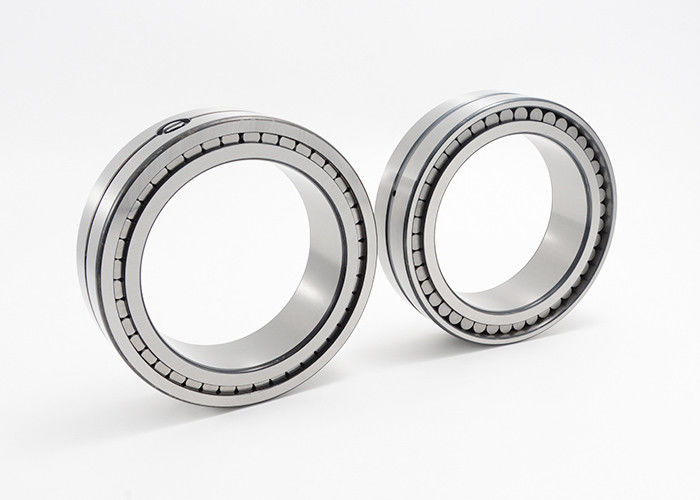

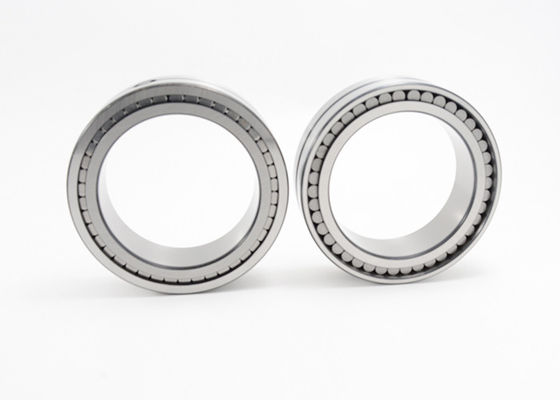

Nonlocating bearing Double Row Cylindrical Roller Bearings SL02 4830 SL02 4848
Bearing Features:
Sealing:
The cylindrical roller bearings are supplied in an open design.
Lubrication:
They are not supplied greased and can be lubricated with oil or grease via the end faces.
Operating temperature:
Full complement cylindrical roller bearings are suitable for operating temperatures from –30 °C to +120 °C.
MOUETTE offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.
Nonlocating bearing Double Row Cylindrical Roller Bearings SL02 48 Series Specifications:
| Bearing Code | Dimensions | Loading Rating | Limiting speed | Mass | |||||||||
| d | D | B | d1 | E | C | r | Dyn. | Stat. | Fatigue limit load | Limiting speed | Reference speed | ||
| Cr | C0r | Cur | nG | nB | |||||||||
| mm | KN | rpm | KG | ||||||||||
| SL02 4830 | 150 | 190 | 40 | 166 | 178 | 20 | 2 | 237 | 550 | 61 | 1900 | 1300 | 2.8 |
| SL02 4832 | 160 | 200 | 40 | 174 | 186 | 20 | 1.1 | 243 | 580 | 63 | 1800 | 1200 | 3 |
| SL02 4834 | 170 | 215 | 45 | 187 | 201 | 22.5 | 1.1 | 265 | 620 | 66 | 1700 | 1200 | 3.95 |
| SL02 4836 | 180 | 225 | 45 | 200 | 214 | 22.5 | 1.1 | 275 | 660 | 70 | 1600 | 1100 | 4.15 |
| SL02 4838 | 190 | 240 | 50 | 209 | 225 | 25 | 1.5 | 315 | 750 | 77 | 1500 | 1100 | 5.45 |
| SL02 4840 | 200 | 250 | 50 | 220 | 235 | 25 | 1.5 | 325 | 790 | 80 | 1400 | 1000 | 5.7 |
| SL02 4844 | 220 | 270 | 50 | 241 | 256 | 25 | 1.5 | 340 | 870 | 85 | 1300 | 850 | 6.2 |
| SL02 4848 | 240 | 300 | 60 | 261 | 281 | 30 | 2 | 520 | 1290 | 120 | 1200 | 750 | 9.9 |
| SL02 4852 | 260 | 320 | 60 | 283.5 | 304 | 30 | 2 | 540 | 1400 | 128 | 1100 | 700 | 10.6 |
| SL02 4856 | 280 | 350 | 69 | 308 | 332 | 34.5 | 2 | 710 | 1860 | 163 | 1000 | 600 | 15.6 |
| SL02 4860 | 300 | 380 | 80 | 329 | 356 | 40 | 2.1 | 830 | 2120 | 185 | 950 | 550 | 22 |
| SL02 4864 | 320 | 400 | 80 | 352 | 379 | 40 | 2.1 | 860 | 2280 | 194 | 900 | 500 | 23.5 |
| SL02 4868 | 340 | 420 | 80 | 369 | 396 | 40 | 2.1 | 880 | 2390 | 201 | 850 | 480 | 25 |
| SL02 4872 | 360 | 440 | 80 | 392 | 419 | 40 | 2.1 | 910 | 2550 | 210 | 800 | 440 | 26 |
| SL02 4876 | 380 | 480 | 100 | 421 | 455 | 50 | 2.1 | 1330 | 3550 | 290 | 750 | 400 | 44 |
| SL02 4880 | 400 | 500 | 100 | 435 | 470 | 50 | 2.1 | 1360 | 3700 | 295 | 700 | 380 | 45.8 |
