Product Details:
|
| Name: | Single Row Full Complement Cylindrical Roller Bearings | Bearing Type: | Full Complement, SL1830 Series |
|---|---|---|---|
| No. Of Rows: | 1 | Bearing Material: | Chrome Steel 100Cr6, GCr15, AISI 52100 |
| Inch/Metric: | Metric | Sealing: | Open |
| Bearing Design: | Removable Outer Ring – Flanged | Cage Type: | Full Complement, No Cage |
| Radial Internal Play: | Normal Internal Play | Heat Stabilization: | No Heat Stabilization - Temperatures Up To 120 °C |
| High Light: | Full complement single row roller bearing,single row roller bearing SL183020,single row sl183012 |
||

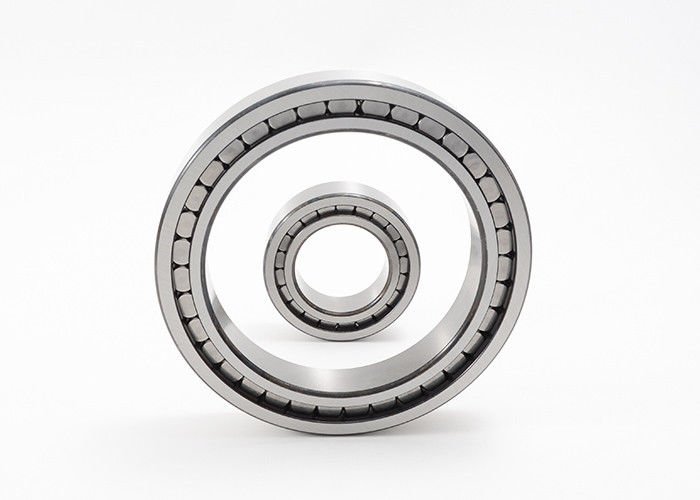

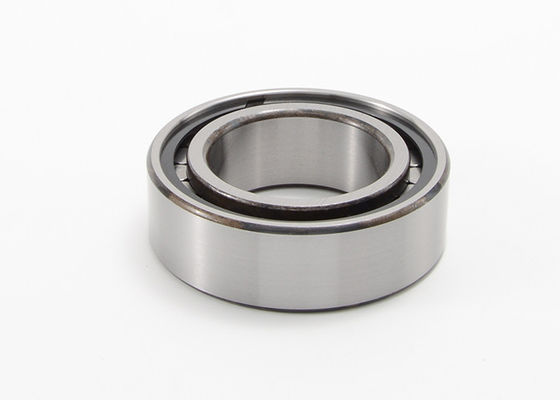

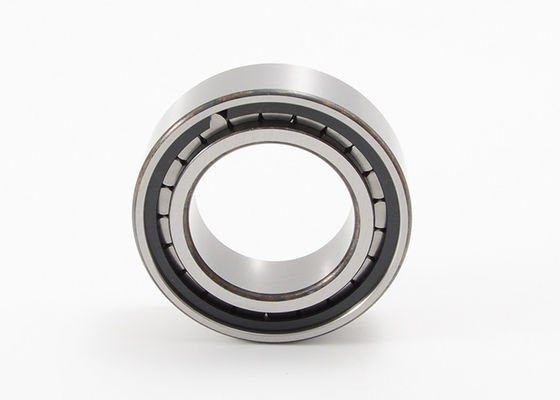

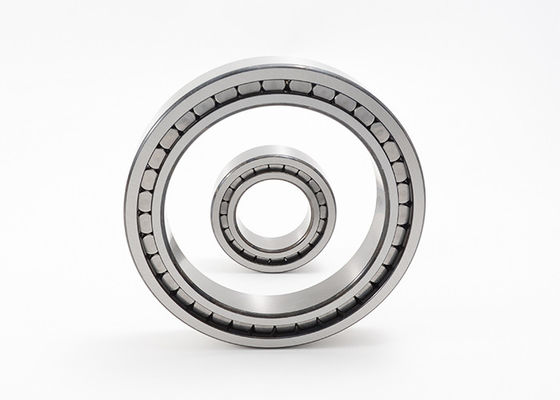

Single Row Full complement Cylindrical Roller Bearings SL183012 SL183020 SL183036
Cylindrical Roller Bearings SL183012 is a single-row, full-complement cylinder bearing. This bearing type has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages. Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.
Operating temperature:
Full complement cylindrical roller bearings are suitable for operating temperatures from –30 °C to +120 °C.
MOUETTE offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.
Single Row Full complement Cylindrical Roller Bearings SL1830 Series Details:
|
Bearing Code |
Dimensions | Loading Rating | Limiting speed | Mass | ||||||||||
| d | D | B | d1 | D1 | E | s | rmin | Dyn. | Stat. | Fatigue limit load | Limiting speed | Reference speed | ||
| Cr | Cor | Cur | nG | nB | ||||||||||
| mm | KN | rpm | kg | |||||||||||
| SL183004 | 20 | 42 | 16 | 28.8 | 32.8 | 36.81 | 1.5 | 0.6 | 27.5 | 26.5 | 4.45 | 10500 | 7500 | 0.11 |
| SL183005 | 25 | 47 | 16 | 34.6 | 38.5 | 42.51 | 1.5 | 0.6 | 35 | 32 | 5.5 | 8900 | 6000 | 0.12 |
| SL183006 | 30 | 55 | 19 | 40 | 45.4 | 49.6 | 2 | 1 | 45 | 42 | 7.5 | 7600 | 5600 | 0.2 |
| SL183007 | 35 | 62 | 20 | 44.9 | 51.3 | 55.52 | 2 | 1 | 55 | 53 | 9.4 | 6700 | 4950 | 0.26 |
| SL183008 | 40 | 68 | 21 | 50.5 | 57.1 | 61.74 | 2 | 1 | 66 | 67 | 11.2 | 6000 | 4350 | 0.31 |
| SL183009 | 45 | 75 | 23 | 55.3 | 62.2 | 66.85 | 2 | 1 | 70 | 74 | 12.5 | 5500 | 4200 | 0.4 |
| SL183010 | 50 | 80 | 23 | 59.1 | 67.7 | 72.33 | 2 | 1 | 88 | 94 | 15.1 | 5100 | 3700 | 0.43 |
| SL183011 | 55 | 90 | 26 | 68.5 | 78.8 | 83.54 | 2 | 1.1 | 120 | 136 | 22.6 | 4400 | 3100 | 0.64 |
| SL183012 | 60 | 95 | 26 | 71.7 | 82.1 | 86.74 | 2 | 1.1 | 123 | 143 | 23.7 | 4200 | 3000 | 0.69 |
| SL183013 | 65 | 100 | 26 | 78.1 | 88.4 | 93.09 | 2 | 1.1 | 130 | 157 | 26 | 3900 | 2700 | 0.73 |
| SL183014 | 70 | 110 | 30 | 81.5 | 95.6 | 100.28 | 3 | 1.1 | 153 | 174 | 29.5 | 3650 | 2800 | 1.02 |
| SL183015 | 75 | 115 | 30 | 89 | 103.2 | 107.9 | 3 | 1.1 | 162 | 192 | 32.5 | 3400 | 2490 | 1.06 |
| SL183016 | 80 | 125 | 34 | 95 | 111.7 | 117.4 | 4 | 1.1 | 170 | 220 | 31 | 3150 | 2470 | 1.43 |
| SL183017 | 85 | 130 | 34 | 99.4 | 116.1 | 121.95 | 4 | 1.1 | 175 | 231 | 32 | 3000 | 2360 | 1.51 |
| SL183018 | 90 | 140 | 37 | 106.1 | 124.5 | 130.11 | 4 | 1.5 | 205 | 275 | 38 | 2800 | 2240 | 1.97 |
| SL183020 | 100 | 150 | 37 | 115.7 | 134 | 140.2 | 4 | 1.5 | 216 | 300 | 40.5 | 2600 | 2040 | 2.15 |
| SL183022 | 110 | 170 | 45 | 127.3 | 149.3 | 156.7 | 5.5 | 2 | 280 | 385 | 52 | 2350 | 2010 | 3.5 |
| SL183024 | 120 | 180 | 46 | 138.8 | 160.7 | 168.15 | 5.5 | 2 | 295 | 425 | 56 | 2170 | 1840 | 3.8 |
| SL183026 | 130 | 200 | 52 | 148.6 | 175.5 | 184.4 | 5.5 | 2 | 425 | 600 | 79 | 2000 | 1660 | 5.65 |
| SL183028 | 140 | 210 | 53 | 162.2 | 189.5 | 198.4 | 5.5 | 2 | 450 | 660 | 85 | 1840 | 1470 | 6.04 |
| SL183030 | 150 | 225 | 56 | 170 | 198 | 207.45 | 7 | 2.1 | 475 | 700 | 88 | 1760 | 1430 | 7.33 |
| SL183032 | 160 | 240 | 60 | 184.8 | 215.8 | 225.45 | 7 | 2.1 | 540 | 800 | 99 | 1620 | 1280 | 8.8 |
| SL183034 | 170 | 260 | 67 | 198.1 | 232.7 | 243.55 | 7 | 2.1 | 700 | 1050 | 129 | 1510 | 1120 | 12.2 |
| SL183036 | 180 | 280 | 74 | 212.2 | 249.4 | 261 | 7 | 2.1 | 810 | 1240 | 150 | 1410 | 1020 | 16.1 |
| SL183038 | 190 | 290 | 75 | 221.8 | 259 | 270.6 | 9 | 2.1 | 830 | 1300 | 155 | 1350 | 970 | 17 |
| SL183040 | 200 | 310 | 82 | 236.6 | 276.2 | 288.6 | 9 | 2.1 | 950 | 1510 | 178 | 1270 | 890 | 21.8 |
| SL183044 | 220 | 340 | 90 | 254.6 | 299.2 | 312 | 9 | 3 | 1150 | 1820 | 209 | 1170 | 800 | 28.4 |
| SL183048 | 240 | 360 | 92 | 277.5 | 322.1 | 336 | 11 | 3 | 1210 | 1990 | 224 | 1080 | 720 | 30.9 |
| SL183052 | 260 | 400 | 104 | 304 | 358.4 | 375.97 | 11 | 4 | 1600 | 2500 | 280 | 980 | 620 | 44.5 |
| SL183056 | 280 | 420 | 106 | 319.5 | 372.9 | 390.3 | 11 | 4 | 1650 | 2650 | 290 | 940 | 590 | 48 |
| SL183060-TB | 300 | 460 | 118 | 353.6 | 415.6 | 434.85 | 14 | 4 | 2020 | 3300 | 325 | 840 | 500 | 66.6 |
| SL183064-TB | 320 | 480 | 121 | 369.5 | 430.1 | 449.5 | 14 | 4 | 2080 | 3450 | 340 | 810 | 480 | 71.7 |
| SL183068-TB | 340 | 520 | 133 | 396.1 | 463.9 | 485.65 | 16 | 5 | 2490 | 4150 | 400 | 750 | 430 | 95.8 |
| SL183072-TB | 360 | 540 | 134 | 414 | 481.6 | 503.45 | 16 | 5 | 2550 | 4350 | 410 | 720 | 405 | 101 |
| SL183076-TB | 380 | 560 | 135 | 431.7 | 499.5 | 521.25 | 16 | 5 | 2600 | 4450 | 425 | 700 | 390 | 106 |
| SL183080-TB | 400 | 600 | 148 | 462.5 | 535.1 | 558.52 | 18 | 5 | 3050 | 5400 | 500 | 650 | 345 | 140 |
