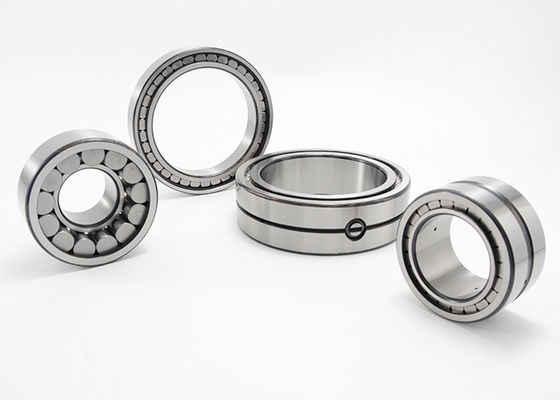

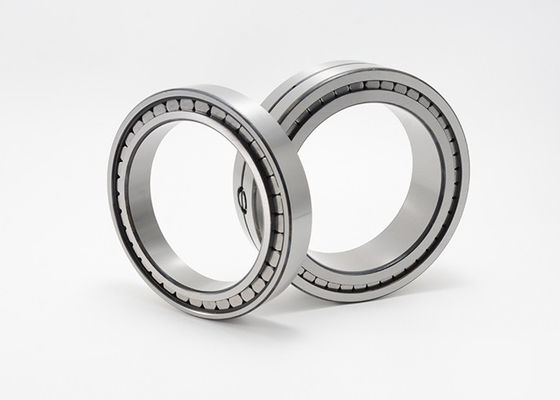

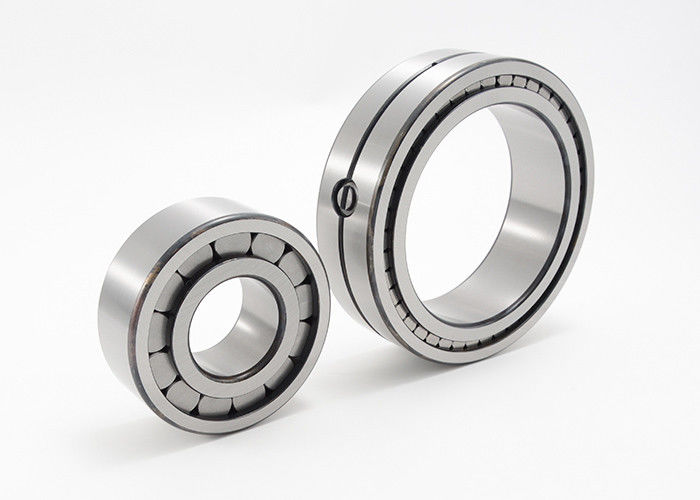

ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating
ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

Large Image :  ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: ZSL19 2305, ZSL19 2310 - Cylindrical Roller Bearing
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: USD15 per Piece
Packaging Details: Plastic bags + Individual Single Box + Cartons + European Standard Plywood Case.
Delivery Time: 3-45 working days.
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 500,000 Pieces per Month.

ZSL19 2305 2310 Cylindrical Roller Bearing Gcr15 Single Row Semi Locating

Description
Name: Semi Locating Single Row Cylindrical Roller Bearings Type: Semi-Locating Bearings ZSL Series
Basic Design: Semi-locating Single Row Profile: Complete With Outer And Inner Ring
Bearing Material: Chrome Steel 100Cr6, GCr15, AISI 52100 Cage Material: Polymer
Other Features: 1 Rib Inner Ring | 2 Rib Outer Ring Size: Metric Series
Precision Class: RBEC 1 | ISO P0 Separable: Inner Ring - One Side
High Light:

ZSL19 2305 Cylindrical Roller Bearing

,

ZSL19 2310 Cylindrical Roller Bearing

,

gcr15 roller bearings single row

Semi-Locating Single Row Cylindrical Roller Bearings ZSL19 2305 ZSL19 2310



Cylindrical roller bearings have a single or multiple row rolling element set based on cylindrical rollers. In contrast to the ball, the roller has a larger contact area perpendicular to the roller axis. As a result, it can transmit higher forces, has greater rigidity and allows smaller rolling element diameters under the same load.

Depending on the design of the ribs on the bearing rings:
  • axial forces can be supported in one or both directions
  • axial displacements of the shaft relative to the housing are compensated without constraint in the bearing (in bearings with a semi-locating or non-locating bearing function)
  • the bearings can be separated for easier mounting.
Cylindrical roller bearings are available in various designs, the characteristics of which are optimized for different applications depending on the structure of the bearings: The bearings are available in a single or double row design, with different combinations of ribs on the inner and outer ring, a full complement cylindrical roller set and with various cage designs.



Features:

Bore Profile Straight Cage Material Polymer
Precision Class RBEC 1 | ISO P0 Number of Rows of Rollers Single Row
Separable Inner Ring - One Side Rolling Element Cylindrical Rollers
Profile Complete with Outer and Inner Ring Snap Ring No
Internal Clearance C4-Extra Loose Retainer Yes, with spacers
Relubricatable Yes Inch - Metric Metric
Other Features 1 Rib Inner Ring | 2 Rib Outer Ring Category Cylindrical Roller Bearing



Semi-Locating Single Row Cylindrical Roller Bearings ZSL Series Specifications:





Bearing Code

Dimensions Mass

Basic Load

Rating

Limiting speed
d D B d1 D1 F rmin   CrKN CorKN
mm kg KN rpm
ZSL192305 25 62 24 36.7 47.5 31.72 1.1 0.36 68 55 16100
ZSL192306 30 72 27 43.5 56 38.3 1.1 0.55 94 81 13700
ZSL192307 35 80 31 50.7 65.8 44.68 1.5 0.72 118 104 12200

ZSL192308 40 90 33 57.5 75.2 51.12 1.5 1 160 144 10800
ZSL192309 45 100 36 62.5 80.3 56.1 1.5 1.34 171 160 9700
ZSL192310 50 110 40 68.3 89.7 60.72 2 1.76 219 202 8800

ZSL192311 55 120 43 75.5 99.3 67.11 2 2.22 255 236 8000
ZSL192312 60 130 46 82 105.8 73.62 2.1 2.82 270 260 7400
ZSL192313 65 140 48 90 116.5 80.69 2.1 3.44 335 330 6800

ZSL192314 70 150 51 93.5 121.6 84.14 2.1 4.27 365 365 6400
ZSL192315 75 160 55 101.6 131.9 91.22 2.1 5.2 435 440 6000
ZSL192316 80 170 58 109.5 142.1 98.24 2.1 6.2 510 520 5600

ZSL192317 85 180 60 118.5 150.9 107.01 3 7.23 540 570 5300
ZSL192318 90 190 64 117.5 152.5 105.26 3 8.7 590 610 5000
ZSL192319 95 200 67 126.6 161.9 114.65 3 10 620 670 4750

ZSL192320 100 215 73 132.7 172.8 119.3 3 12.7 750 790 4500
ZSL192322 110 240 80 151.1 199.9 134.27 3 16.5 890 900 3950
ZSL192324 120 260 86 164.2 213.1 147.39 3 21.9 1060 1810 3700
