Product Details:
|
| Name: | Metric Locating 3 Row Full Complement Cylindrical Roller Bearings | Category: | Cylindrical Roller Bearing Multi Row SL11 Series |
|---|---|---|---|
| Basic Design: | Locating | Material: | Chrome Steel 100Cr6, GCr15, AISI 52100 |
| Size: | Metric Series | Sealing: | Open |
| Size Range: | Shaft D Size From 70- 200mm | Feature: | Three Row |
| Cage Type: | FC - Full Complement, No Cage | Precision: | Standard Precision |
| High Light: | Full Complement three row roller slewing bearing,locating three row roller slewing bearing,metric roller bearing SL11 922 |
||

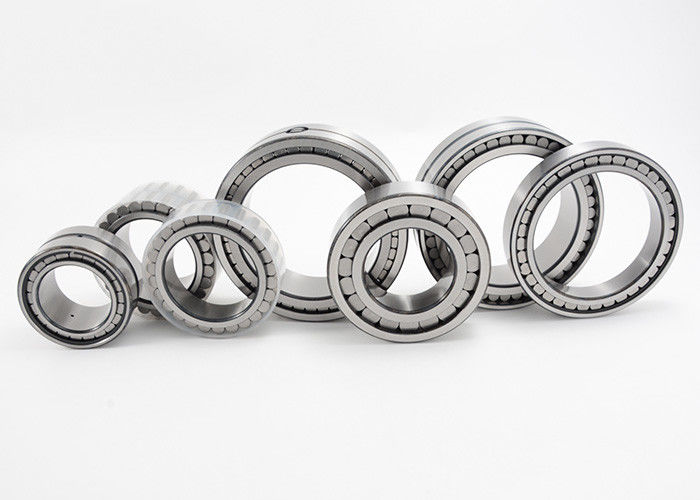

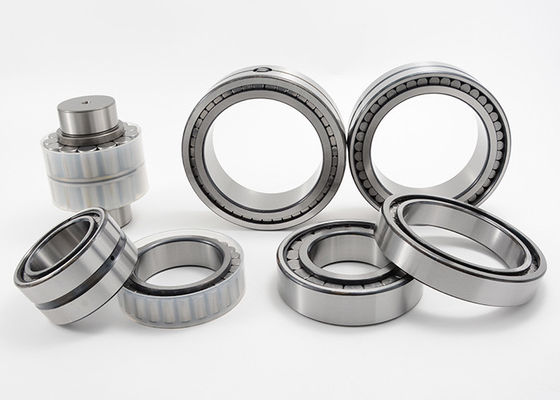

3 Row Full Complement Cylindrical Roller Bearings Metric Locating SL11 922 SL11 936
Full complement cylindrical roller bearings have solid outer and inner rings together with rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have extremely high radial load carrying capacity, high rigidity and are suitable for particularly compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Product Properties:
| Bore | C - Cylindrical Bore |
| Seal | No Seal |
| Cage Type | FC - Full Complement, No Cage |
| External Modification | No External Modification |
| Radial Internal Play | Cn Normal Internal Play |
| Precision | Standard Precision |
| Heat Stabilization | No Heat Stabilization - suitable for operating temperatures from –30 °C to +120 °C |
MOUETTE offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.
Three-Row Full Complement Cylindrical Roller Bearings Metric Locating SL11 Series Specifications:
| Bearing Code | Dimensions | Basic Loading Rating | Limiting speed | Mass | ||||||||
| d | D | B | rmin | C | d1 | D1 | Dyn. | Stat. | Limiting speed | Ref. speed | ||
| Cr | Cor | nG | nB | |||||||||
| mm | KN | rpm | kg | |||||||||
| SL11 914 | 70 | 100 | 44 | 1 | 15 | 83 | 87 | 142 | 265 | 3800 | 2800 | 1.15 |
| SL11 916 | 80 | 110 | 44 | 1 | 15 | 92 | 96 | 150 | 300 | 3400 | 2500 | 1.29 |
| SL11 918 | 90 | 125 | 52 | 1.1 | 17.5 | 103 | 110 | 205 | 425 | 3000 | 2100 | 2 |
| SL11 920 | 100 | 140 | 59 | 1.1 | 20 | 116.5 | 124.5 | 260 | 550 | 2700 | 1800 | 2.9 |
| SL11 922 | 110 | 150 | 59 | 1.1 | 20 | 125 | 133.5 | 270 | 600 | 2500 | 1600 | 3.15 |
| SL11 924 | 120 | 165 | 66 | 1.1 | 22.5 | 139 | 148 | 305 | 660 | 2300 | 1500 | 4.3 |
| SL11 926 | 130 | 180 | 73 | 1.5 | 25 | 149.5 | 159.5 | 355 | 770 | 2100 | 1300 | 5.75 |
| SL11 928 | 140 | 190 | 73 | 1.5 | 25 | 160 | 170 | 370 | 830 | 2000 | 1300 | 6.1 |
| SL11 930 | 150 | 210 | 88 | 2 | 30 | 171.5 | 186.5 | 560 | 1230 | 1800 | 1100 | 9.7 |
| SL11 932 | 160 | 220 | 88 | 2 | 30 | 185 | 199.5 | 580 | 1330 | 1700 | 1000 | 10.2 |
| SL11 934 | 170 | 230 | 88 | 2 | 30 | 194 | 208.5 | 600 | 1390 | 1600 | 950 | 10.8 |
| SL11 936 | 180 | 250 | 101 | 2 | 34.5 | 206 | 223.5 | 780 | 1810 | 1500 | 850 | 15.7 |
| SL11 938 | 190 | 260 | 101 | 2 | 34.5 | 216 | 233 | 800 | 1900 | 1400 | 800 | 16.4 |
| SL11 940 | 200 | 280 | 116 | 2.1 | 40 | 231 | 251.5 | 940 | 2220 | 1400 | 750 | 22.8 |
