Product Details:
|
Name: | Locating Bearing Cylindrical Roller Bearings | Type: | SL12 Series |
---|---|---|---|
Locating Bearing Or Non-locating Bearing: | Locating Bearing | Material: | Bearing Steel |
Size: | Metric Series | Lubrication: | Grease Or Oil |
Size Range: | Id Size From 70mm To 200mm | Feature: | Four Row |
High Light: | SL12 930 four row roller bearing,SL12 922 four row roller bearing,locating bearings SL12 936 |

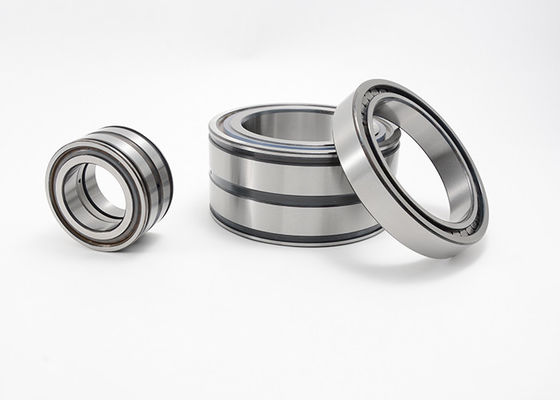

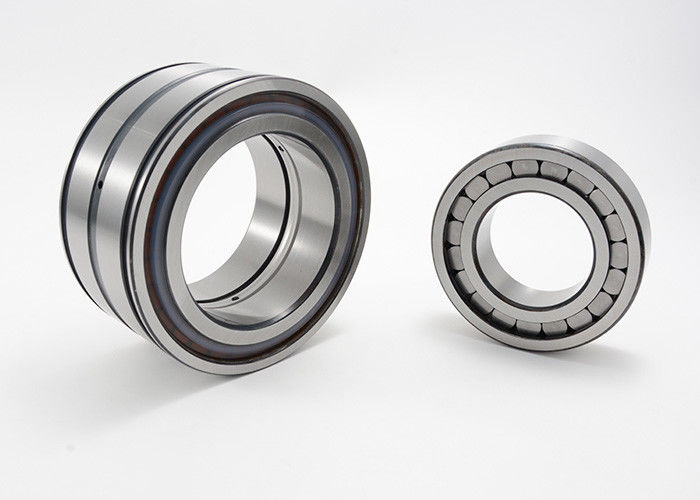

Locating Bearing Cylindrical Roller Bearings Four Row SL12 922 SL12 930 SL12 936
Sealing:
The cylindrical roller bearings are supplied in an open design.
Lubrication:
They are not supplied greased and can be lubricated with oil or grease via the end faces.
Operating temperature:
Full complement cylindrical roller bearings are suitable for operating temperatures from –30 °C to +120 °C.
MOUETTE offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.
Four Row Cylindrical Roller Bearings SL 12 Series Specifications:
Bearing Code |
Dimensions | Basic Loading Rating | Limiting speed | Mass | ||||||||
d | D | B | rmin | C | d1 | D1 | Dyn. | Stat. | Limiting speed | Ref. speed | ||
Cr | Cor | nG | nB | |||||||||
mm | KN | rpm | kg | |||||||||
SL12 914 | 70 | 100 | 57 | 1 | 28.5 | 83 | 87 | 177 | 355 | 3800 | 2800 | 1.49 |
SL12 916 | 80 | 110 | 57 | 1 | 28.5 | 92 | 96 | 188 | 395 | 3400 | 2400 | 1.65 |
SL12 918 | 90 | 125 | 68 | 1.1 | 34 | 103 | 110 | 255 | 560 | 3000 | 2000 | 2.65 |
SL12 920 | 100 | 140 | 78 | 1.1 | 39 | 116.5 | 124.5 | 325 | 740 | 2700 | 1800 | 3.85 |
SL12 922 | 110 | 150 | 78 | 1.1 | 39 | 125 | 133.5 | 340 | 800 | 2500 | 1600 | 4.2 |
SL12 924 | 120 | 165 | 87 | 1.1 | 43.5 | 139 | 148 | 380 | 880 | 2300 | 1500 | 6.65 |
SL12 926 | 130 | 180 | 96 | 1.5 | 48 | 149.5 | 159.5 | 445 | 1030 | 2100 | 1300 | 7.55 |
SL12 928 | 140 | 190 | 96 | 1.5 | 48 | 160 | 170 | 460 | 1100 | 2000 | 1200 | 8.05 |
SL12 930 | 150 | 210 | 116 | 2 | 58 | 171.5 | 186.5 | 700 | 1640 | 1800 | 1100 | 12.8 |
SL12 932 | 160 | 220 | 116 | 2 | 58 | 185 | 199.5 | 730 | 1770 | 1700 | 950 | 13.5 |
SL12 934 | 170 | 230 | 116 | 2 | 58 | 194 | 208.5 | 750 | 1860 | 1600 | 900 | 14.2 |
SL12 936 | 180 | 250 | 133 | 2 | 66.5 | 206 | 223.5 | 970 | 2410 | 1500 | 800 | 20.7 |
SL12 938 | 190 | 260 | 133 | 2 | 66.5 | 216 | 233 | 1000 | 2550 | 1400 | 750 | 21.6 |
SL12 940 | 200 | 280 | 152 | 2.1 | 76 | 231 | 251.5 | 1180 | 2950 | 1400 | 700 | 29.9 |
