Product Details:
|
| Name: | Four Row Full Complement Cylindrical Roller Bearings | Type: | SL15 Series |
|---|---|---|---|
| Material: | Bearig Steel 100Cr6, GCr15 | Size: | Metric Series |
| Number Of Row:: | Four Row (Quadruple Row) | Size Range: | From Id 70mm To Id 200mm |
| Precision Rating: | ABEC1,ABEC3,ABEC5 | Feature: | Non-locating Bearing |
| High Light: | Quadruple Row Cylindrical Roller Bearing,full complement roller bearing SL15 914,full complement roller bearing SL15 920 |
||

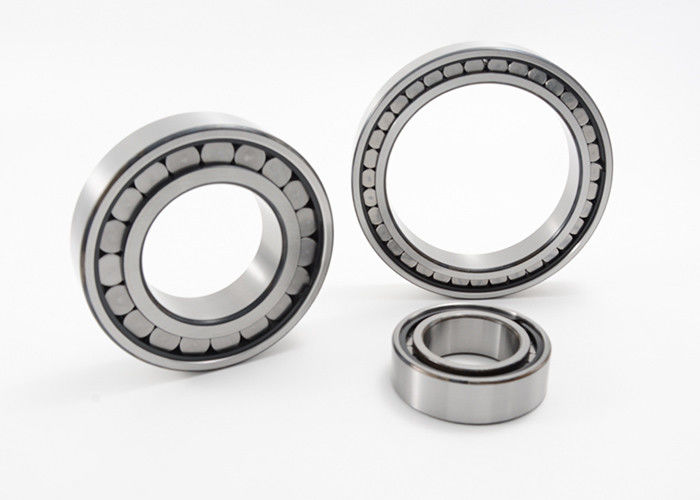

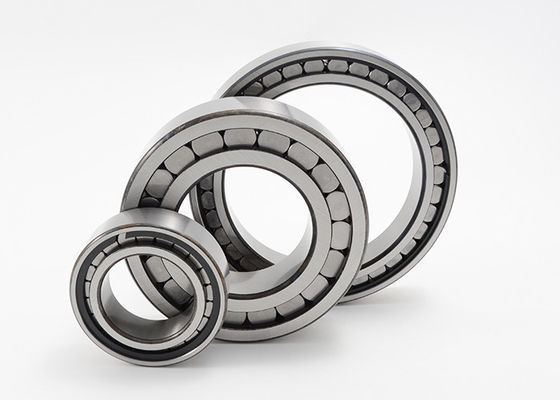

Full Complement Cylindrical Roller Bearings Quadruple Row SL15 914 SL15 920
Mouette has been specialized in producing full complement Cylindrical Roller Bearings for more than 8 years, and we have lots of types in stock or semi-finished parts.
For SL 15 Series, the bearings are Quadruple row. They are non-locating bearings.
SL15 Series Full Complement Cylindrical Roller Bearings Specifications:
|
Bearing Code |
Dimensions | Basic Loading Rating | Limiting speed | Mass | |||||||||
| d | D | B | rmin | s | C | d1 | E | Dyn. | Stat. | Limiting speed | Ref. speed | ||
| Cr | Cor | nG | nB | ||||||||||
| mm | KN | rpm | kg | ||||||||||
| SL15 914 | 70 | 100 | 57 | 1 | 1 | 28.5 | 83 | 91 | 177 | 355 | 3800 | 2800 | 1.45 |
| SL15 916 | 80 | 110 | 57 | 1 | 1 | 28.5 | 92 | 100 | 188 | 395 | 3400 | 2400 | 1.6 |
| SL15 918 | 90 | 125 | 68 | 1.1 | 1.5 | 34 | 103 | 115 | 255 | 560 | 3000 | 2000 | 2.6 |
| SL15 920 | 100 | 140 | 78 | 1.1 | 2 | 39 | 116.5 | 129 | 325 | 740 | 2700 | 1800 | 3.8 |
| SL15 922 | 110 | 150 | 78 | 1.1 | 2 | 39 | 125 | 138 | 340 | 800 | 2500 | 1600 | 4.15 |
| SL15 924 | 120 | 165 | 87 | 1.1 | 3 | 43.5 | 139 | 153 | 380 | 880 | 2300 | 1500 | 5.55 |
| SL15 926 | 130 | 180 | 96 | 1.5 | 4 | 48 | 149.5 | 165 | 445 | 1030 | 2100 | 1300 | 7.4 |
| SL15 928 | 140 | 190 | 96 | 1.5 | 4 | 48 | 160 | 176 | 460 | 1100 | 2000 | 1200 | 7.9 |
| SL15 930 | 150 | 210 | 116 | 2 | 4 | 58 | 171.5 | 192 | 700 | 1640 | 1800 | 1100 | 12.6 |
| SL15 932 | 160 | 220 | 116 | 2 | 4 | 58 | 185 | 206 | 730 | 1770 | 1700 | 950 | 13.5 |
| SL15 934 | 170 | 230 | 116 | 2 | 4 | 58 | 194 | 215 | 750 | 1860 | 1600 | 900 | 13.9 |
| SL15 936 | 180 | 250 | 133 | 2 | 4 | 66.5 | 206 | 230 | 970 | 2410 | 1500 | 800 | 20.4 |
| SL15 938 | 190 | 260 | 133 | 2 | 4 | 66.5 | 216 | 240 | 1000 | 2550 | 1400 | 750 | 21.4 |
| SL15 940 | 200 | 280 | 152 | 2.1 | 5 | 76 | 231 | 259 | 1180 | 2950 | 1400 | 700 | 29.4 |
