Product Details:
|
| Name: | Double Row Full Rollers Spherical Cylindrical Roller Bearing | Type: | SL06 SERIES |
|---|---|---|---|
| Basic Design: | Non-locating Bearing | Material: | Chrome Steel 100Cr6, GCr15, AISI 52100 |
| Size: | Metric Series | Number Of Row: | Double Row |
| Precision: | P0,P6,P5,P4 | Outer Ring Profile: | Spherical OD For Static Self Aligning |
| High Light: | SL06 016E double cylindrical roller bearing,mining double cylindrical roller bearing,non locating spherical roller bearing |
||

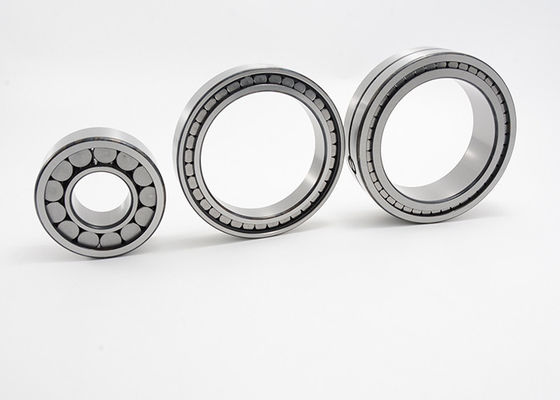

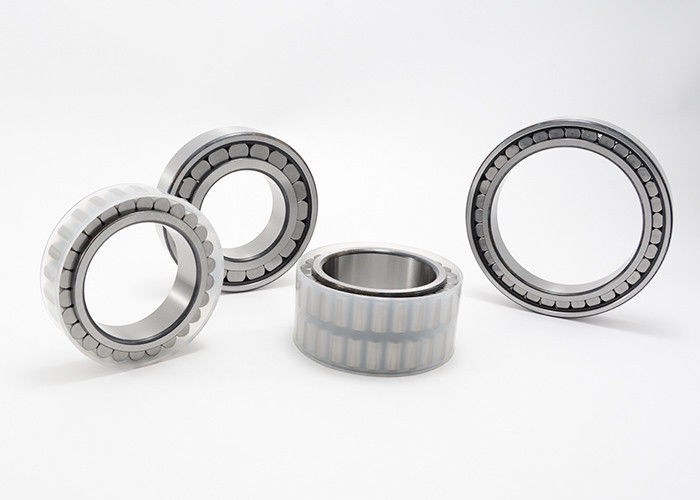

Double Row SL06 016 E Full Rollers Spherical Cylindrical Roller Bearing Work for Mining
Double-row cylindrical roller bearings have two inner diameters: cylindrical bore and tapered bore: they have small cross-section, high load capacity and high rigidity. Double row cylindrical roller bearings are mainly used in machine tools, rolling stands, plastic drums, grinding machines and large gear boxes.
Cylindrical Roller Bearings:
SL06 SERIES
Specification Details:
|
Bearing Code |
Dimensions | Basic Loading Rating | Limiting speed | Mass | |||||
| d |
OD K |
Width | Outer ring width | Axial play | Dyn. | Stat. | nG | ||
| B1 | C | s | Cr | Cor | |||||
| mm | KN | rpm | kg | ||||||
| SL06 016E | 80 | 120 | 55 | 45 | 2.5 | 172 | 300 | 1300 | 1.8 |
| SL06 018E | 90 | 140 | 60 | 50 | 2.5 | 219 | 370 | 1200 | 2.95 |
| SL06 020E | 100 | 150 | 65 | 55 | 2.5 | 280 | 490 | 1100 | 3.45 |
| SL06 022E | 110 | 170 | 75 | 60 | 5 | 340 | 620 | 950 | 5.2 |
| SL06 024E | 120 | 180 | 75 | 60 | 5 | 350 | 660 | 850 | 5.5 |
| SL06 026E | 130 | 200 | 80 | 65 | 5 | 435 | 810 | 800 | 7.8 |
| SL06 028E | 140 | 210 | 85 | 70 | 5 | 495 | 930 | 750 | 8.55 |
| SL06 030E | 150 | 225 | 90 | 75 | 5 | 540 | 1020 | 700 | 10.5 |
| SL06 032E | 160 | 240 | 110 | 90 | 7.5 | 660 | 1260 | 650 | 14.3 |
| SL06 034E | 170 | 260 | 115 | 95 | 7.5 | 760 | 1420 | 600 | 18.1 |
| SL06 036E | 180 | 280 | 120 | 100 | 7.5 | 790 | 1520 | 550 | 23 |
| SL06 038E | 190 | 290 | 135 | 110 | 10 | 950 | 1850 | 550 | 26.5 |
| SL06 040E | 200 | 310 | 140 | 115 | 10 | 1070 | 2060 | 500 | 32 |
| SL06 044E | 220 | 340 | 150 | 125 | 10 | 1260 | 2440 | 460 | 42 |
| SL06 048E | 240 | 360 | 155 | 130 | 10 | 1310 | 2600 | 430 | 46 |
