Product Details:
|
| Name: | Full Complement Cylindrical Roller Bearings | Category: | Double Row Cylindrical Roller Bearing |
|---|---|---|---|
| Bore: | Cylindrical Bore | Material: | Bearing Steel 100Cr6, GCr15, AISI 52100 |
| Size: | Metric Series | Sealing: | No Seal |
| Size Range: | Fw Size From 3mm To 60mm | Cage Type: | Full Complement, No Cage |
| High Light: | RSL18 5008 double row roller bearing,double row roller bearing Full Complement,double row roller bearings Without Outer Ring |
||

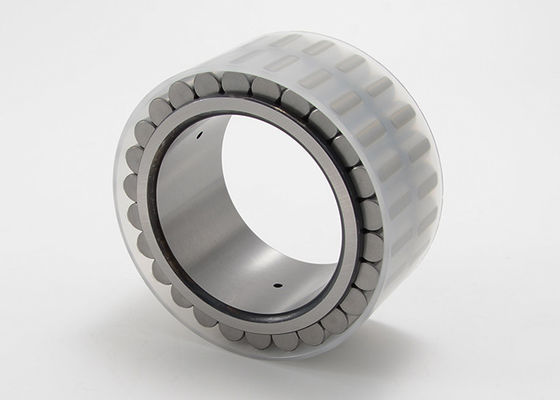

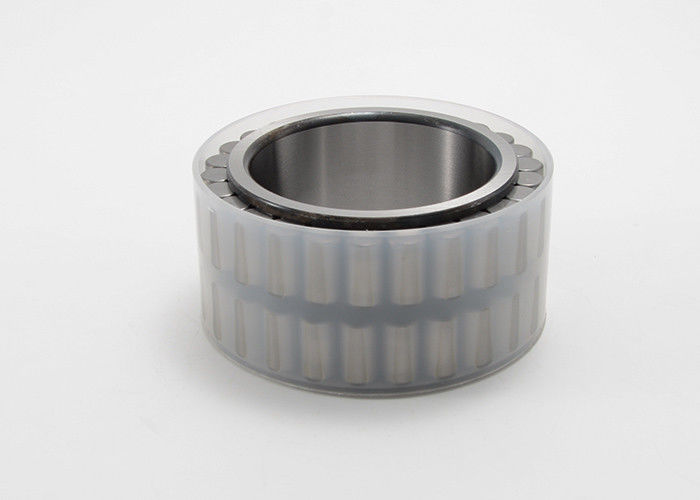

Double Row Full Complement Cylindrical Roller Bearings Without Outer Ring RSL18 5008
Mouette has been specialized in producing full complement Cylindrical Roller Bearings for more than 8 years. Our offered full complement Cylindrical Roller Bearings are mainly belows:
Cylindrical Roller Bearings RSL18 50 SERIES are double row designs without outer ring, and with double flanged inner ring. They are not supplied greased and can be lubricated with oil or grease via the end faces.
The operating temperature for these bearings are suitable for operating temperatures from –30 °C to +120 °C.
Double Row Full Complement Cylindrical Roller Bearings RSL1850 series are mainly used for large gearboxes and hardened gear bore mounting.
MOUETTE also offers more interchange tables, fag cylindrical roller bearing, nsk cylindrical roller bearings, timken cylindrical roller bearing, ina cylindrical roller bearing.
Full Complement Cylindrical Roller Bearings Double Row Without Outer Ring RSL1850 Series Specifications:
|
Bearing Code |
Dimensions | Basic Loading Rating | Limiting speed | Mass | ||||||
| d | Ew | Width | d1 | x | r1, r2 (min) | Dyn. | Stat. | nG | ||
| B | Cr | Cor | ||||||||
| mm | KN | rpm | kg | |||||||
| RSL18 5004 | 20 | 36.81 | 30 | 27.8 | 23 | 0.6 | 47 | 55 | 10300 | 0.10 |
| RSL18 5005 | 25 | 42.51 | 30 | 33.5 | 23 | 0.6 | 53 | 68 | 8800 | 0.12 |
| RSL18 5006 | 30 | 49.6 | 34 | 39.1 | 26 | 1 | 68 | 89 | 7400 | 0.22 |
| RSL18 5007 | 35 | 55.52 | 36 | 44.3 | 28 | 1 | 83 | 112 | 6500 | 0.22 |
| RSL18 5008 | 40 | 61.74 | 38 | 49.8 | 30 | 1 | 99 | 139 | 5900 | 0.27 |
| RSL18 5009 | 45 | 66.85 | 40 | 54.9 | 30 | 1 | 110 | 155 | 5300 | 0.32 |
| RSL18 5010 | 50 | 72.33 | 40 | 58.9 | 33 | 1 | 130 | 195 | 4900 | 0.39 |
| RSL18 5011 | 55 | 83.54 | 46 | 68.6 | 39 | 1.1 | 180 | 280 | 4400 | 0.71 |
| RSL18 5012 | 60 | 86.74 | 46 | 71.8 | 39 | 1.1 | 185 | 295 | 4100 | 0.72 |
| RSL18 5013 | 65 | 93.09 | 46 | 78.1 | 39 | 1.1 | 195 | 320 | 3400 | 1.07 |
| RSL18 5014 | 70 | 100.28 | 54 | 82.3 | 42 | 1.1 | 225 | 355 | 3500 | 1.12 |
| RSL18 5015 | 75 | 107.9 | 54 | 89.9 | 42 | 1.1 | 240 | 390 | 3300 | 1.35 |
| RSL18 5016 | 80 | 117.4 | 60 | 96 | 47 | 1.1 | 290 | 455 | 3100 | 1.45 |
| RSL18 5017 | 85 | 121.95 | 60 | 100.5 | 47 | 1.1 | 300 | 485 | 2900 | 1. 57 |
| RSL18 5018 | 90 | 130.65 | 67 | 107.7 | 52 | 1.5 | 345 | 570 | 2700 | 2.13 |
| RSL18 5020 | 100 | 140.2 | 67 | 117.2 | 52 | 1.5 | 365 | 625 | 2500 | 2.25 |
| RSL18 5022 | 110 | 156.7 | 80 | 129.2 | 62 | 2 | 480 | 810 | 2200 | 3.32 |
| RSL18 5024 | 120 | 168.15 | 80 | 140.6 | 62 | 2 | 510 | 885 | 2100 | 3.89 |
| RSL18 5026 | 130 | 184.4 | 95 | 150.9 | 78 | 2 | 730 | 1240 | 1900 | 5.70 |
| RSL18 5028 | 140 | 198.4 | 95 | 164.9 | 78 | 2 | 755 | 1365 | 1800 | 9.55 |
| RSL18 5030 | 150 | 207.45 | 100 | 172.4 | 80 | 2 | 790 | 1430 | 1700 | 10.51 |
| RSL18 5032 | 160 | 225.45 | 109 | 187.4 | 86 | 2.1 | 910 | 1650 | 1200 | 12.8 |
| RSL18 5034 | 170 | 243.55 | 122 | 200.9 | 100 | 2.1 | 1165 | 2150 | 1200 | 18.17 |
