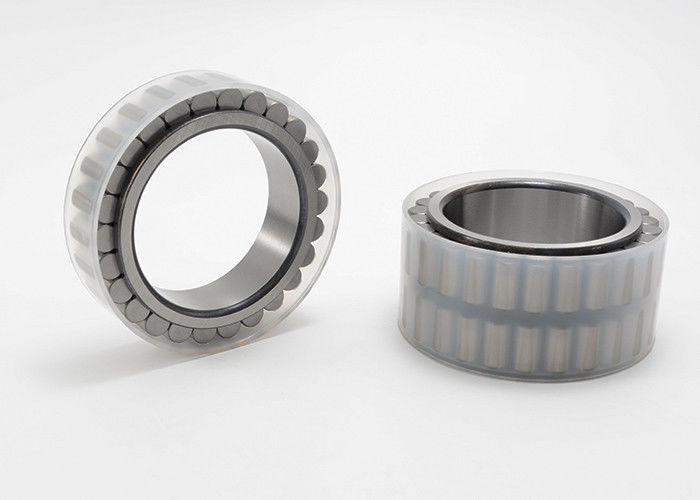

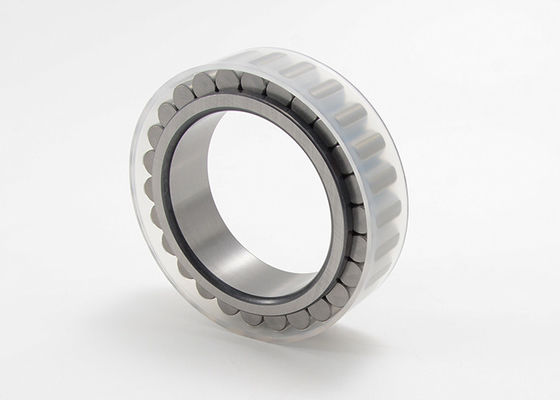

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings

I'm Online Chat Now

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings
RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings

Large Image :  RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings

Product Details:
Place of Origin: China
Brand Name: MOUETTE
Certification: ISO/TS 16949:2009, ISO 9001:2008
Model Number: RSL18 2306 RSL18 2318 - Full Complement Cylindrical Roller Bearing
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD5 per Piece
Packaging Details: Plastic bag + Middle box+ Carton +European Standard Plywood Case
Delivery Time: 3-45 working days.(Huge Quantity Stocks Available))
Payment Terms: L/C, T/T, D/A, Western Union, Paypal
Supply Ability: 50,000 Pieces per Month.

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings

Description
Name: Single Row Full Complement Cylindrical Roller Bearings Type: RSL18 Series
Category: Cylindrical Roller Bearing Single Row Sealing: Open, No Seals
Number Of Row: Single Row Precision: P0, P6, P5, P4
Material: Bearing Steel 100Cr6, GCr15, AISI 52100 Application: Industrial Transmission, Automotive, Electric Motor, Generator Sets, Elevating Machinery, Machine Tool Spindles, Internal-combustion Engines, Etc.
High Light:

RSL18 2306 roller bearings single row

,

RSL18 2318 roller bearings single row

,

Cylindrical full complement roller bearings

Semi Locating Single Row Full Complement Cylindrical Roller Bearings Manufacturers

Single Row Full Complement Cylindrical Roller Bearings RSL18 2306 RSL18 2318



Single Row Full Complement Cylindrical roller bearing RSL1823.., full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18 series

Specifications Details:





Bearing Code

Dimensions Basic Loading Rating Limiting speed Mass
d Ew Width d1 x r1, r2 (min) Dyn. Stat. nG
B Cr Cor
mm KN rpm kg
RSL18 2305 25 53.8 24 37.3 15 0.6 65 60 7200 0.28
RSL18 2306 30 62.5 27 44.5 18 1 89 90 6200 0.44
RSL18 2307 35 72 31 52 20 1 118 115 5400 0.58
RSL18 2308 40 83.4 33 59.4 24 1 155 160 4900 0.77
RSL18 2309 45 88.5 36 64.5 24 1 165 175 4300 2.21
RSL18 2310 50 99 40 70.5 28 1 215 220 4000 1.44
RSL18 2311 55 109.3 43 77.8 30 1.1 240 260 3600 1.98
RSL18 2312 60 116 46 84.5 30 1.1 260 285 3300 2.2
RSL18 2313 65 127 48 92.5 34 1.1 315 360 3100 2.96
RSL18 2314 70 132.4 51 96.4 36 1.1 335 395 2900 3.3
RSL18 2315 75 143.4 55 104.4 40 1.1 400 480 2700 4.67
RSL18 2316 80 154.5 58 112.5 44 1.1 460 565 2500 5.47
RSL18 2317 85 163.3 60 121.3 44 1.1 490 615 2400 6.52
RSL18 2318 90 165.8 64 120.8 48 1.5 530 660 2300 6.66
RSL18 2320 100 187.8 73 136.8 55 1.5 680 865 2000 11.29
RSL18 2322 110 218.5 80 155.5 56 2 960 1220 1800 14.98
RSL18 2324 120 231.5 86 168.5 64 2 1020 1340 1700 17.92
RSL18 2326 130 248 93 180.5 45 2 1100 1440 1900 22.96
RSL18 2328 140 264.7 102 192.7 48 2 1245 1650 1800 28.76
RSL18 2330 150 286.7 108 208.7 52 2.1 1430 1910 1800 32.3

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 0

RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 1



RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 2



RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 3



RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 4



RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 5



RSL18 2306 2318 Roller Bearings Single Row Cylindrical Full Complement Roller Bearings 6
