Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN

Large Image : Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN

Product Details:

Place of Origin:	China
Brand Name:	MOUETTE
Certification:	ISO/TS 16949:2009, ISO 9001:2008
Model Number:	81216 TN, 81217 TN, 81218 TN, 81220 TN, 81224 TN, 81226 TN, 81228-M, 81230-M, 81232-M, 89316 TN, 89317-M, 89318-M, 89320-M, 89318-M, 89320-M, 89322-M, 89324-M, 89326-M, 89328-M, 89330-M, 89332-M

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	USD1 per Piece
Packaging Details:	Plastic bags, Cartons and European Standard Plywood Case.
Delivery Time:	3-45 working days.(Huge Quantity Stocks Available))
Payment Terms:	L/C, T/T, D/A, Western Union, Paypal
Supply Ability:	500,000 Pieces per Month.

Contact Now

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN

Description

Name:	Cylindrical Roller Thrust Bearing	Thrust Bearing Type:	Roller & Cage Assembly With Washers
Bearing Material:	Chrome Steel 100Cr6, AISI 52100	Cage Material:	Polyamide Nylon 66
Axial Load Capability:	Single-direction	Coating:	Without
Number Of Rows:	1	Inch - Metric:	Metric
Tolerance Class:	ABEC 1 \| ISO P0	Operating Temperature Range:	Max 250 °F

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

INCLUDED PRODUCTS:

Roller and cage thrust assembly

Shaft washer

Housing washer

FEATURES:

Shaft washer, housing washer, cylindrical roller and cage thrust assembly can be mounted separately
To prevent stress peaks, the roller ends are relieved slightly to modify the line contact between the raceway and rollers
Cage material: Glass fiber reinforced PA66 or machined Brass

Cylindrical Roller Thrust Bearing Details:

Shaft Diameter	Thrust cylindrical roller bearing		Thrust cylindrical Roller and cage thrust assembly		Thrust bearing washer
	Thrust cylindrical roller bearing		Thrust cylindrical Roller and cage thrust assembly		Thrust bearing washer
	code	Mass	code	Mass	Housing washer	Shaft washer	Bearing washer	Mass Kg
mm	code	Kg	code	Kg	Housing washer	Shaft washer	Bearing washer	Mass Kg
80	81216 TN	0.9	K81216 TN	0.234	GS81216	WS81216		0.333
	89316 TN	2.37	K89316 TN	0.42	GS89316	WS89316		1.02
	89416-M	7.04	K89416	2.04	GS89416	WS89416		2.5
85	81117 TN	0.42	K81117 TN	0.118	GS81117	WS81117	LS85110	0.151
	81217 TN	1.26	K81217 TN	0.28	GS81217	WS81217		0.49
	89317-M	3	K89317	0.54	GS89317	WS89317		1.23
	89417-M	8.65	K89417	2.71	GS89417	WS89417		2.97
90	81118 TN	0.62	K81118 TN	0.15	GS81118	WS81118	LS90120	0.225
	81218 TN	1.77	K81218 TN	0.542	GS81218	WS81218		0.614
	89318-M	3.28	K89318	0.62	GS89318	WS89318		1.33
	89418-M	9.94	K89418	3.04	GS89418	WS89418		3.45
100	81120 TN	0.95	K81120 TN	0.25	GS81120	WS81120	LS100135	0.35
	81220 TN	2.2	K81220 TN	0.6	GS81220	WS81220		0.8
	89320-M	4.19	K89320	0.81	GS89320	WS89320		1.69
	89420-M	13.42	K89420	3.92	GS89420	WS89420		4.75
110	81122 TN	1.04	K81122TN	0.27	GS81122	WS81122	LS110145	0.385
	81222 TN	2.29	K81222TN	0.53	GS81222	WS81222		0.88
	89322-M	6.55	K89322	1.67	GS89322	WS89322		2.44
	89422-M	17.41	K89422	5.11	GS89422	WS89422		6.15
120	81124TN	1.12	K81124TN	0.29	GS81124	WS81124	LS120155	0.415
	81224TN	2.54	K81224TN	0.58	GS81224	WS81224		0.98
	89324-M	9.24	K89324	2.44	GS89324	WS89324		3.4
	89424-M	21.77	K89424	6.37	GS89424	WS89424		7.7
130	81126TN	1.67	K81126TN	0.38	GS81126	WS81126	LS130170	0.643
	81226TN	3.98	K81226TN	0.92	GS81226	WS81226		1.53
	89326-M	10	K89326	1.91	GS89326	WS89326		4.045
	89426-M	26.96	K89426	7.96	GS89426	WS89426		9.5
140	81128TN	1.9	K81128TN	0.4	GS81128	WS81128	LS140180	0.749
	81228-M	4.567	K81228	1.197	GS81228	WS81228		1.634
	89328-M	11.99	K89328	2.39	GS89328	WS89328		4.8
	89428-M	29.7	89428	8.54	GS89428	WS89428		10.6
150	81130TN	2.2	K81130TN	0.43	GS81130	WS81130	LS150190	0.796
	81230-M	5.886	K81230	1.52	GS81230	WS81230		2.18
	89330-M	12.63	K89330	2.51	GS89330	WS89330		5.06
	89430-M	35.36	K89430	10.36	GS89430	WS89430		12.5
160	81132TN	2.12	K81132TN	0.44	GS81132	WS81132	LS160200	0.842
	81232-M	7.96	K81232	3.36	GS81232	WS81232		2.3
	89432-M	42	K89432	12.42	GS89432	WS89432		14.8
170	81134TN	2.41	K81134TN	0.66	GS81134	WS81134		1.1

CONTINUED FROM ABOVE

Thrust cylindrical roller bearing	Dimension								Track size		Basic Load		Limiting Speed
	Dimension								Track size		Raating		Limiting Speed
	Dcl	D1	Dc	d1	T	Dw	B	a	Eb	Ea	Cr	Cor	r/min
	d		D					r			Cr	Cor
								mm			KN
81216 TN	80	82	115	115	28	11	8.5	1	84	112	201	630	3000
89316 TN	80	82	140	140	36	11	12.5	1.5	86	137	305	1110	2600
89416-M	80	83	170	170	54	18	18	2.1	88	165	560	1770	2300
81117 TN	85	87	110	110	19	7.5	5.75	1	87	108	112	385	3000
81217 TN	85	88	125	125	31	12	9.5	1	90	119	217	660	2700
89317-M	85	88	150	150	39	12	13.5	1.5	93	147	325	1140	2500
89417-M	85	88	180	180	58	19	19.5	2.1	93	175	620	1980	2200
81118 TN	90	92	120	120	22	9	6.5	1	93	117	141	465	2700
81218 TN	90	93	135	135	35	14	10.5	1.1	95	129	290	890	2600
89318-M	90	93	155	155	39	12	13.5	1.5	98	152	335	1200	2400
89418-M	90	93	190	190	60	20	20	2.1	99	185	680	2200	2100
81120 TN	100	102	135	135	25	11	7	1	104	131	199	650	2500
81220 TN	100	103	150	150	38	15	11.5	1.1	107	142	340	1080	2300
89320-M	100	103	170	170	42	13	14.5	1.5	107	167	380	1400	2100
89420-M	100	103	210	210	67	22	22.5	3	111	205	850	2850	1900
81122 TN	110	112	145	145	25	11	7	1	114	141	207	700	2300
81222 TN	110	113	160	160	38	15	11.5	1.1	117	152	325	1030	2100
89322-M	110	113	190	190	48	15	16.5	2	120	186	500	1870	1900
89422-M	110	113	230	30	73	24	24.5	3	121	223	1000	3400	1700
81124TN	120	122	155	155	25	11	7	1	124	151	214	760	2100
81224TN	120	123	170	170	39	15	12	1.1	127	162	340	1120	2000
89324-M	120	123	210	210	54	17	18.5	2.1	130	206	640	2420	1700
89424-M	120	123	250	250	78	26	26	4	133	243	1170	4000	1600
81126TN	130	132	170	170	30	12	9	1	135	165	250	900	1900
81226TN	130	133	190	187	45	19	13	1.5	137	181	480	1520	1800
89326-M	130	134	225	225	58	18	20	2.1	141	220	710	2700	1600
89426-M	130	134	270	270	85	28	28.5	4	145	263	1330	4600	1400
81128TN	140	142	180	178	31	12	9.5	1	145	175	260	960	1800
81228-M	140	143	200	197	46	19	13.5	1.5	147	191	455	1450	1700
89328-M	140	144	240	240	60	19	20.5	2.1	152	235	820	3200	1500
89428-M	140	144	280	280	85	28	28.5	4	155	273	1390	4950	1400
81130TN	150	152	190	188	31	12	9.5	1	155	185	270	1020	1700
81230-M	150	153	215	212	50	21	14.5	1.5	158	211	590	1940	1600
89330-M	150	154	250	250	60	19	20.5	2.1	162	245	840	3350	1400
89430-M	150	154	300	300	90	30	30	4	167	293	1570	5700	1300
81132TN	160	162	200	198	31	12	9.5	1	165	195	270	1050	1600
81232-M	160	163	225	222	51	21	15	1.5	168	220	600	2030	1500
89432-M	160	164	320	320	95	32	31.5	5	179	313	1780	6500	1200
81134TN	170	172	215	213	34	14	10	1.1	176	209	360	1380	1500

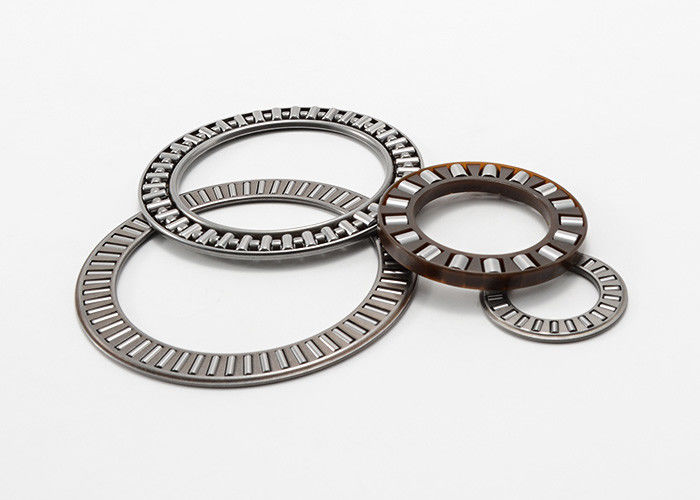

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN 0

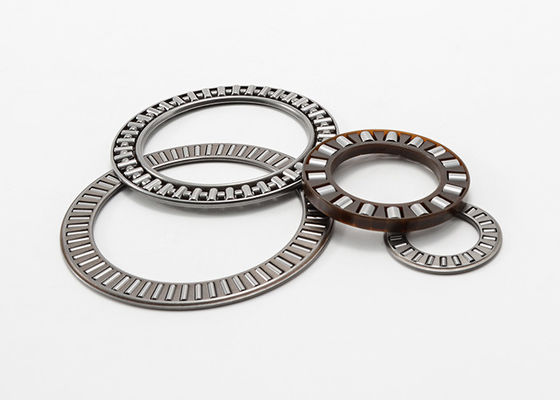

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN 1

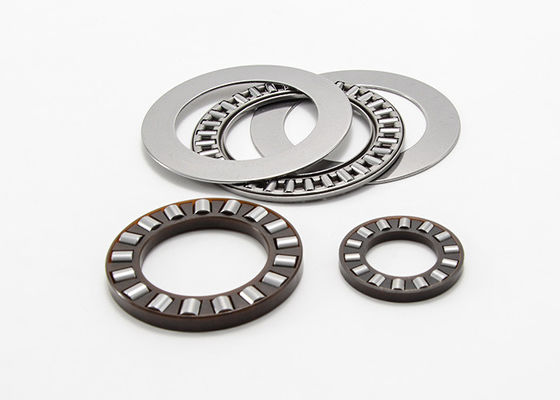

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN 2

Cylindrical Roller Thrust Bearing Roller & Cage Assembly with Washers 81216 TN 3
