Product Details:
|
| Name: | Full Complement Cylindrical Roller Bearing | Bearing Material: | Hardened Alloy Bearing Steel 100Cr6, GCr15, AISI 52100 |
|---|---|---|---|
| Inch - Metric: | Metric | Bore Profile: | Straight (Cylindrical Bore) |
| Number Of Rows Of Rollers: | Single Row | Separable: | No |
| Retainer Or Cage: | No Cage, Full Complement | Sealing: | No Seal, Open |
| Internal Clearance: | C0-Medium | Precision: | Standard Precision Or Customized |
| High Light: | NJG2318VH full complement cylindrical roller bearings,NCF3024V full complement cylindrical roller bearings,gcr15 single row bearing |
||

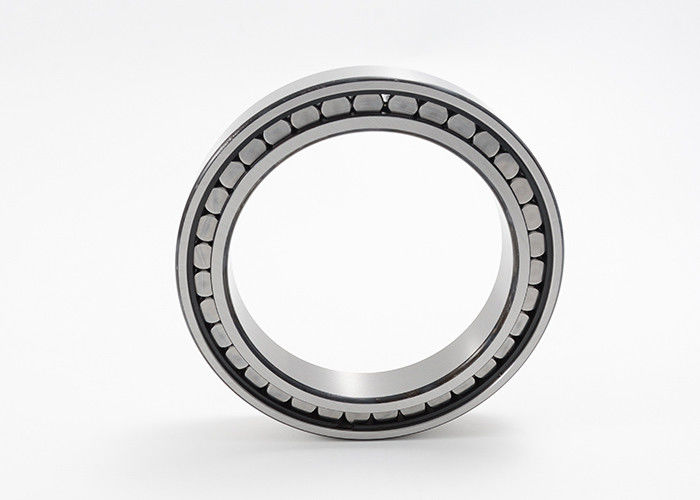

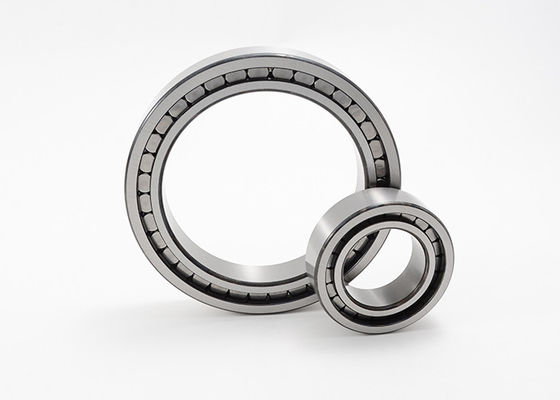

Full Complement Cylindrical Roller Bearing Single Row NJG2318VH NCF3024V
Single-row full-complement cylindrical roller bearing with NJG design, NCF design
A single-row full-complement cylinder bearing has a solid outer and inner ring and a high number of cylindrical rollers. These rollers are guided between the ribs of the rings. Since there is no cage, the maximum number of rolls can be used. As a result, these bearings can support very high radial loads. However, the maximum speed is lower than the speed of cylindrical roller bearings with cages.
Single-row full-complement cylindrical roller bearings can also support axial forces in one direction. They are used as support bearings. Support bearings allow axial displacement of the shaft relative to the housing in one direction. The shaft is located axially in the other direction.
Single Row Full Complement Cylindrical Roller Bearing NJG design, NCF design Specifications:
| Bearing Code | Dimensions | Mass | Basic Load Rating | Limiting | |||||||
| speed | |||||||||||
| d | D | B | rsmin | d1 | D1 | Ew, Fw | Cr | Cor | |||
| mm | kg | KN | rpm | ||||||||
| NJG2317VH | 85 | 180 | 60 | 3 | 118 | 149 | 107 | 7.4 | 480 | 600 | 1800 |
| NJG2318VH | 90 | 190 | 64 | 3 | 117.5 | 152 | 105.26 | 8.75 | 520 | 655 | 1800 |
| NJG2320VH | 100 | 215 | 73 | 3 | 136 | 176 | 122.82 | 13 | 655 | 830 | 1600 |
| NJG2322VH | 110 | 240 | 80 | 3 | 151 | 198 | 134.3 | 17.5 | 830 | 1060 | 1400 |
| NCF2924V | 120 | 165 | 27 | 1.5 | 136 | 149 | 154.3 | 1.73 | 172 | 290 | 2200 |
| NCF3024V | 120 | 180 | 46 | 2 | 139 | 160 | 167.6 | 3.8 | 290 | 430 | 1600 |
| NJG2324VH | 120 | 260 | 86 | 3 | 164.5 | 212.5 | 147.4 | 22.4 | 950 | 1220 | 1200 |
| NCF2926V | 130 | 180 | 30 | 1.5 | 147 | 161 | 167.1 | 2.36 | 204 | 360 | 1600 |
| NCF3026V | 130 | 200 | 52 | 1.5 | 149 | 175 | 183 | 5.8 | 413 | 620 | 1500 |
| NJG2326VH | 130 | 280 | 93 | 4 | 175 | 226 | 157.9 | 28.1 | 1100 | 1430 | 1000 |
| NCF2928V | 140 | 190 | 30 | 1.5 | 158 | 173 | 180 | 2.48 | 212 | 380 | 1500 |
| NCF3028V | 140 | 210 | 53 | 1.5 | 163 | 189 | 197 | 6.05 | 440 | 680 | 1300 |
| NJG2328VH | 140 | 300 | 102 | 4 | 187 | 241 | 168.45 | 35.5 | 1250 | 1630 | 1300 |
| NCF2930C | 150 | 210 | 36 | 2 | 169 | 189 | 196.4 | 3.92 | 290 | 500 | 1300 |
| NCF3030V | 150 | 225 | 56 | 2 | 170 | 198 | 206.8 | 7.35 | 455 | 710 | 1200 |
| NJG2330VH | 150 | 320 | 108 | 4 | 202 | 261 | 182.5 | 42.5 | 1500 | 2000 | 900 |
| NCF2932V | 160 | 220 | 36 | 2 | 180 | 200 | 205 | 4.3 | 300 | 540 | 1200 |
| NCF3032V | 160 | 240 | 60 | 1.1 | 185 | 215 | 224.8 | 9.1 | 520 | 800 | 1100 |
| NCF2934V | 170 | 230 | 36 | 2 | 191 | 210.5 | 215.5 | 4.3 | 310 | 570 | 1100 |
| NCF3034V | 170 | 260 | 67 | 1.1 | 198 | 232 | 242.9 | 12.5 | 670 | 1060 | 1000 |
| NJG2334VH | 170 | 360 | 120 | 4 | 225 | 294 | 203.55 | 59.5 | 1760 | 2400 | 800 |
| NCF2936V | 180 | 250 | 42 | 2 | 203 | 223 | 231.5 | 6.2 | 390 | 695 | 1000 |
| NCF3036V | 180 | 280 | 74 | 2.1 | 212 | 248 | 260.2 | 16.5 | 780 | 1250 | 900 |
| NCF2938V | 190 | 260 | 42 | 2 | 212 | 236 | 243.5 | 6.5 | 405 | 735 | 950 |
| NCF3038V | 190 | 290 | 75 | 2.1 | 222 | 258 | 269.8 | 17 | 800 | 1290 | 850 |
| NJG2338VH | 190 | 400 | 132 | 5 | 250 | 320 | 224.43 | 80.3 | 2080 | 2900 | 700 |
| NCF2940V | 200 | 280 | 48 | 2.1 | 226.5 | 253 | 2621.4 | 9.1 | 490 | 915 | 850 |
| NCF3040V | 200 | 310 | 82 | 2.1 | 237 | 275 | 287.8 | 21.5 | 915 | 1530 | 800 |
| NJG2340VH | 200 | 420 | 138 | 5 | 266 | 342 | 238.65 | 92 | 2320 | 3250 | 670 |
