Single Row Full Complement Cylindrical Roller Bearings

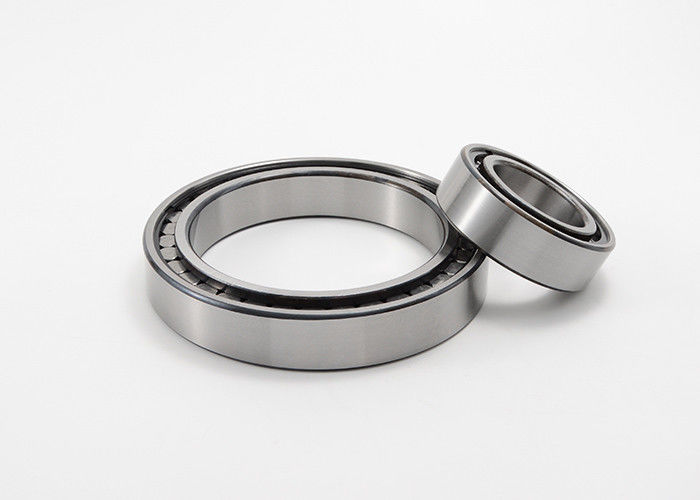

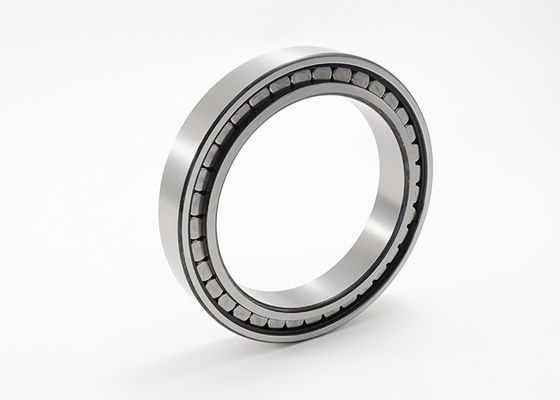

Single row full complement cylindrical roller bearings, NCF design

Single row full complement cylindrical roller bearings are designed to accommodate very high radial loads in combination with moderate speeds. The bearings incorporate a maximum number of rollers as they are not equipped with a cage. Having two integral flanges on the inner ring and one flange on the outer ring, NCF design bearings can accommodate axial displacement in one direction. A retaining ring on the outer ring holds the bearing together. The retaining ring should not be loaded axially during operation.

Features:

• Very high radial load carrying capacity
• High radial stiffness
• Long service life
• Locate the shaft axially in one direction

Single Row Full Complement Cylindrical Roller Bearings are commonly used in applications where high radial loads are present, such as in industrial gearboxes, construction equipment, and mining machinery. They are also suitable for applications with low speeds or oscillating motions.

One advantage of full complement bearings is their ability to withstand shock and impact loads due to their increased load capacity. However, they may have limitations in terms of operating speeds due to the increased friction between the rollers.

It's important to note that the absence of a cage in full complement bearings can result in reduced guiding and alignment of the rollers, which may affect the overall stability of the bearing.

Single Row Full Complement Cylindrical Roller Bearings offer higher load-carrying capacity compared to standard cylindrical roller bearings, making them suitable for heavy-duty applications where radial loads are predominant.

Single Row Full Complement Cylindrical Roller Bearings NCF Series Details:
